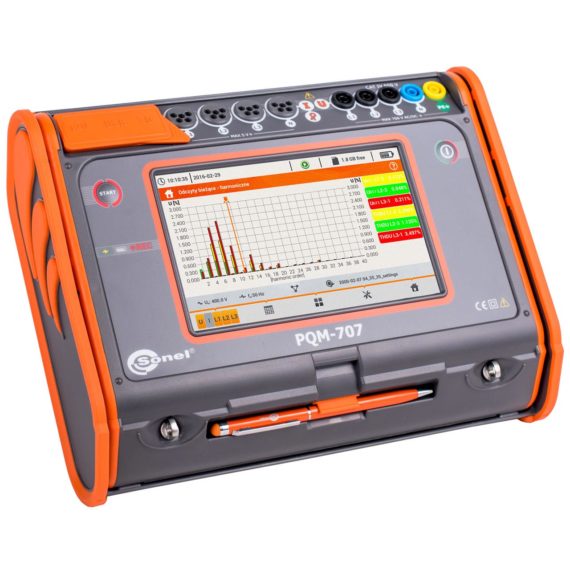

Power Quality Analyzer – Overview

This Power Quality Analyzer allows for versatile measurement, analysis, and registration of energy network parameters DC and 50/60Hz. This includes measuring the quality of electric energy in accordance with the European standard EN 50160. To Guarantee accuracy, all parameters are measured with Class S according to the IEC 61000-4-30 STANDARD.

This is the largest in this class of power quality analyzers and has a 7-inch colour touch screen which enables intuitive and ergonomic operation. Thanks to the built-in lithium-ion battery, the analyzer allows for work during the measurement without the necessity of connecting an external AC adapter.

The analyzer can be used directly, or indirectly via transformers in virtually all kinds of networks with rated voltage from 54V to 760V. Due to its mobility and autonomy, any problems occurring in the supply networks can be diagnosed on the spot. With a safety rating of CAT IV 600V, the Power quality analyzer provides peace of mind during everyday use. The PQM-707 can therefore be used in the field of professional power engineering, maintenance services in industrial plants, as well as network analysis.

Power Quality Analyzer – Features

• 7″ touch screen 800×480 pixel – intuitive operating
• CAT IV 600V – high safety
• Parameters acc. to class S – high accuracy of measurements
• Li-Ion rechargeable battery – higher mobility
• Removable memory card – recording data with no restrictions
• Possible measurements:
  • Measurements according to EN 50160
  • Voltage L1, L2, L3, N-PE (five inputs)
    • average, minimum, maximum values, range to 760 V DC and 50/60Hz, ability to work with voltage transformers
  • Current L1, L2, L3, N (four inputs)
    •  average, minimum, maximum values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers
  • Crest factor for voltage and current
  • Frequency from 40 Hz to 70 Hz
  • Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive)
  • Power recording:
    • Budeanu method
    • IEEE 1459
  • Active, reactive, apparent energy
  • Power factor, cosφ, tgφ
  • Up to 50th harmonics for voltage and current
  • Total Harmonic Distortion (THD) for voltage and current
  • Short-term (PST) and long-term (PLT) flicker
  • Unbalance of voltage and current
  • Current and voltage events registration including waveforms and RMS graphs half period
  • Inrush current
  • Calculator of energy tariffs
  • Analyzer measures and records according to the IEC 61000-4-30 class standard
