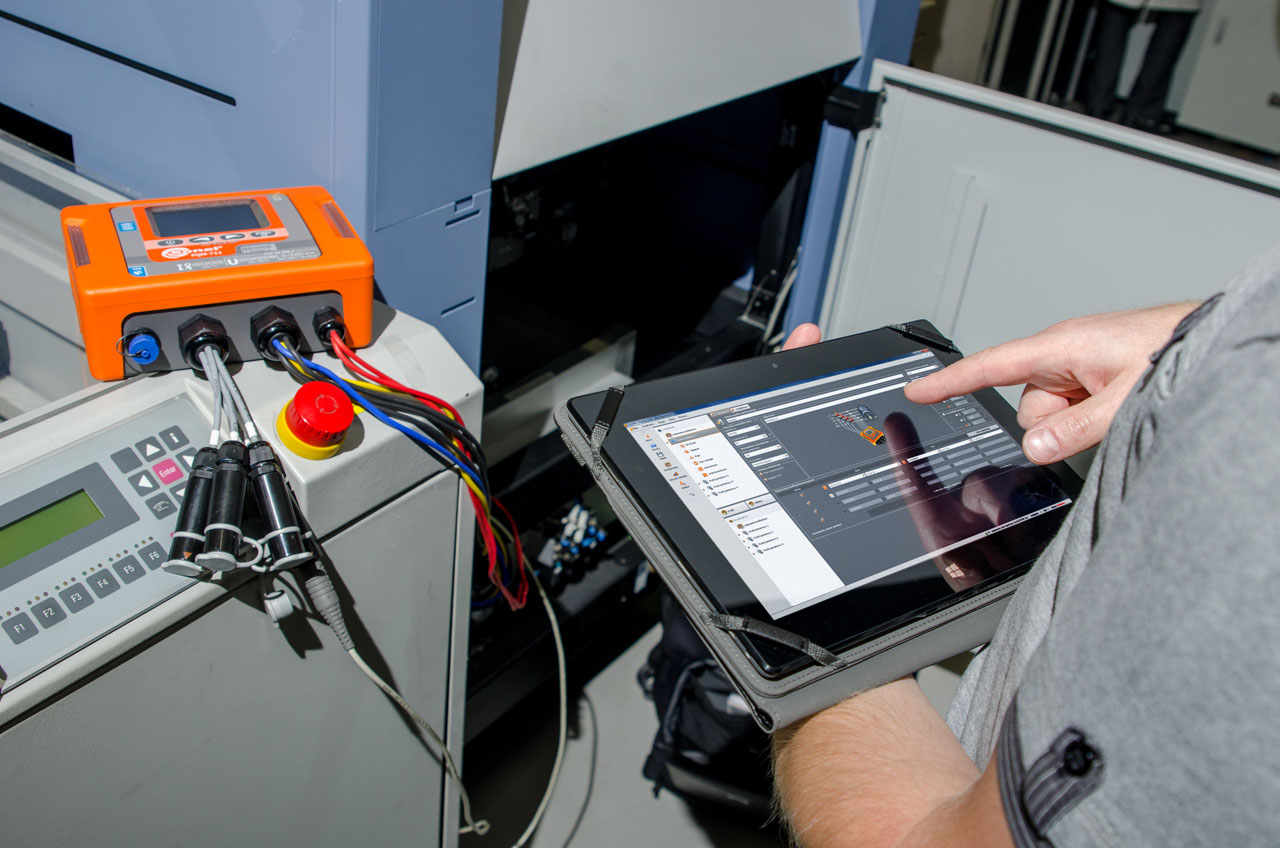

Using of PQM-710 Power Quality Analyzer

Power Quality Analyser PQM-710 & PQM711

Price range: R122,757.00 through R171,017.00 ex vat

Safety Rating Cat IV at 600V labelIngress protection IP65 label

Power Quality Analyser – Overview

These power quality analysers measure, analyse and record network parameters of 50/60 Hz and perform power quality diagnostics according to the European standard EN. PQM-710 is an innovative model with Wi-Fi, which allows for automatic pairing with the included 10″ touch tablet. The tablet enables remote operation of the analyser, live data preview, as well as reading and analysis of data stored in the internal memory. With this solution, the PQM-710 is a unique device that combines the advantages of an analyser with built-in display and typical portable analysers (also known as Black Boxes). You can also use the analyser module as a typical logger without a display for multiple measurements. You can very efficiently diagnose the machine under test using the tablet. In practice, the analyser may be used with all network types with rated voltage from 110 V to 760 V, directly or indirectly via transducers.

Power Quality Analyser – Features

  • It works in the following networks:
    • one-phase
    • split-phase with N wire
    • three-phase Wye type, with and without N wire
    • three-phase delta type
    • with constant voltage
  • Measurements according to EN 50160
  • Voltage L1, L2, L3, N-PE
    • average, minimum, maximum and instantaneous values
    • range to 760V
    • ability to work with voltage transformers
  • Current L1, L2, L3, N (four inputs)
    • average, minimum, maximum and instantaneous values
    • measurement current with range to 3 kA (depends on used clamp)
    • ability to work with current transformers
  • Crest factor for voltage and current
  • Frequency from 40Hz to 70Hz
  • Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive)
  • Power recording:
    • Budeanu method
    • IEEE 1459,
  • Active, reactive, apparent energy
  • Power factor, cosφ, tgφ
  • K factor (transformer overload caused by the harmonics)
  • Up to 50th harmonics for voltage and current
  • Total Harmonic Distortion (THD) for voltage and current
  • Short-term (PST) and long-term (PLT) flicker
  • Unbalance of voltage and current
  • Current events detection, including waveforms recording
  • Current and voltage waveforms recording after each averaging period
  • Measure transient Voltages of up to 6000V PQM-711

Suitable for use in power industry, industrial maintenance services, and network analysis services.

Clear
SKU: N/A Category:
Sonel Logo Square

Description

Power Quality Analyser PQM-710 & PQM-711

PQM-710 Parameters
Parameter
Measuring range
 Max. resolution Accuracy
Alternating voltage (TRMS)
UL-L MAX= 2000 V for UL-PE MAX = 1000 V*
UL-L MAX= 1520 V for UL-PE MAX = 760 V*		 – 0,0…1000,0 V or 0.0…760.0 V* 4 significant digits ±0.1% Unom
Crest Factor Voltage 1.00…10.00 (≤1.65 for 690 V voltage 0.01 ±5%
Crest Factor Current 1.00…10.00 (≤3.6 dla Inom) 0.01 ±5%
Alternating current (TRMS) – depending on clamp** 4 significant digits
±0.1% Inom (error does not account for clamp error)
Frequency – 40.00…70.00 Hz 0.01 Hz ±0.01 Hz
Active, reactive, apparent and distortion power – depending on configuration (transducers, clamps) 4 significant digits
depending on configuration (transducers, clamps)
Active, reactive and apparent energy – depending on configuration (transducers, clamps) 4 significant digits as power error
cosφ and power factor (PF) – -1.00…1.00 0.01 ±0.03
tgφ – -10.00…10.00 0.01
depends on error of active and reactive power
Harmonics and interharmonics Voltage DC, 1…50 as for alternating voltage True RMS
±0.05% Unom for m.v. < 1% Unom
±5% m.v. for m.v. ≥ 1% Unom
Harmonics and interharmonics Current DC, 1…50 as for alternating current True RMS
±0.15% Inom for m.v. < 3% Inom
±5% m.v. for m.v. ≥ 3% Inom
THD Voltage and current 0.0..100.0% (relative to RMS value) 0.10% ±5%
Active and reactive power of harmonics – depending on configuration (transducers, clamps) depends on minimum current and voltage values –
Angle between current and voltage harmonics – -180.0…+180.0° 0.1° ±(n x 1°)
K-Factor – 1.0…50.0 0.1 ±10%
Flicker index – 0.20…10.00 0.01 ±5%
Unbalance factor Voltage and current 0.0…20.0% 0.10%
±0.15% (absolute error)
Measurement of control signals Voltage up to 15% Unom at 5.00…3000.00 Hz 4 significant digits
unspecified for <1% Unom
±0.15% for 1…3% Unom
±5% for 3…15% Unom
Measurement of transients Voltage ±8000 V 4 significant digits ±(5% + 25 V)

m.v. – measured value

* Depending on analyser version

**

  • F-1A1, F-2A1, F-3A1 clamp: 0…1500 A AC (5000 Ap-p)
  • F-1A, F-2A, F-3A clamp: 0…3000 A AC (10 000 Ap-p)
  • F-1A6, F-2A6, F-3A6 clamp: 0…6000 A AC (20 000 Ap-p)
  • C-4A clamp: 0…1000 A AC (3600 Ap-p)
  • C-5A clamp: 0…1000 A AC/DC (3600 Ap-p)
  • C-6A clamp: 0..10 A AC (36 Ap-p)
  • C-7A clamp: 0…100 A AC (360 Ap-p)

GSM

PQM-710 / PQM-710 Pro
index: WM…PQM710LTE / WM…PQM710LTEPRO
GSM modem: 4G LTE
serial no: from BR1000
firmware: from v1.58
minimum version of Sonel Analysis software: v4.7.1



PQM-711 Parameters
Parameter
Measuring range
 Max. resolution Accuracy
Alternating voltage (TRMS)
UL-L MAX= 2000 V for UL-PE MAX = 1000 V*
UL-L MAX= 1520 V for UL-PE MAX = 760 V*		 – 0,0…1000,0 V or 0.0…760.0 V* 4 significant digits ±0.1% Unom
Crest Factor Voltage 1.00…10.00 (≤1.65 for 690 V voltage 0.01 ±5%
Crest Factor Current 1.00…10.00 (≤3.6 dla Inom) 0.01 ±5%
Alternating current (TRMS) – depending on clamp** 4 significant digits
±0.1% Inom (error does not account for clamp error)
Frequency – 40.00…70.00 Hz 0.01 Hz ±0.01 Hz
Active, reactive, apparent and distortion power – depending on configuration (transducers, clamps) 4 significant digits
depending on configuration (transducers, clamps)
Active, reactive and apparent energy – depending on configuration (transducers, clamps) 4 significant digits as power error
cosφ and power factor (PF) – -1.00…1.00 0.01 ±0.03
tgφ – -10.00…10.00 0.01
depends on error of active and reactive power
Harmonics and interharmonics Voltage DC, 1…50 as for alternating voltage True RMS
±0.05% Unom for m.v. < 1% Unom
±5% m.v. for m.v. ≥ 1% Unom
Harmonics and interharmonics Current DC, 1…50 as for alternating current True RMS
±0.15% Inom for m.v. < 3% Inom
±5% m.v. for m.v. ≥ 3% Inom
THD Voltage and current 0.0..100.0% (relative to RMS value) 0.10% ±5%
Active and reactive power of harmonics – depending on configuration (transducers, clamps) depends on minimum current and voltage values –
Angle between current and voltage harmonics – -180.0…+180.0° 0.1° ±(n x 1°)
K-Factor – 1.0…50.0 0.1 ±10%
Flicker index – 0.20…10.00 0.01 ±5%
Unbalance factor Voltage and current 0.0…20.0% 0.10%
±0.15% (absolute error)
Measurement of control signals Voltage up to 15% Unom at 5.00…3000.00 Hz 4 significant digits
unspecified for <1% Unom
±0.15% for 1…3% Unom
±5% for 3…15% Unom
Measurement of transients Voltage ±8000 V 4 significant digits ±(5% + 25 V)

m.v. – measured value

* Depending on analyser version

**

  • F-1A1, F-2A1, F-3A1 clamp: 0…1500 A AC (5000 Ap-p)
  • F-1A, F-2A, F-3A clamp: 0…3000 A AC (10 000 Ap-p)
  • F-1A6, F-2A6, F-3A6 clamp: 0…6000 A AC (20 000 Ap-p)
  • C-4A clamp: 0…1000 A AC (3600 Ap-p)
  • C-5A clamp: 0…1000 A AC/DC (3600 Ap-p)
  • C-6A clamp: 0..10 A AC (36 Ap-p)
  • C-7A clamp: 0…100 A AC (360 Ap-p)

GSM

PQM-711 / PQM-711 Pro
index: WM…PQM711LTE / WM…PQM711LTEPRO
GSM modem: 4G LTE
serial no: from BS1000
firmware: from v1.58
minimum version of Sonel Analysis software: v4.7.1

Power Quality Analyser PQM-710 & PQM-711

Additional information

Options:

PQM-710 LTE Power Quality Analyser, PQM-710 LTE PRO Power Quality Analyser, PQM-711 LTE Power Quality Analyser, PQM-711 LTE PRO Power Quality Analyser

Brand

Sonel
