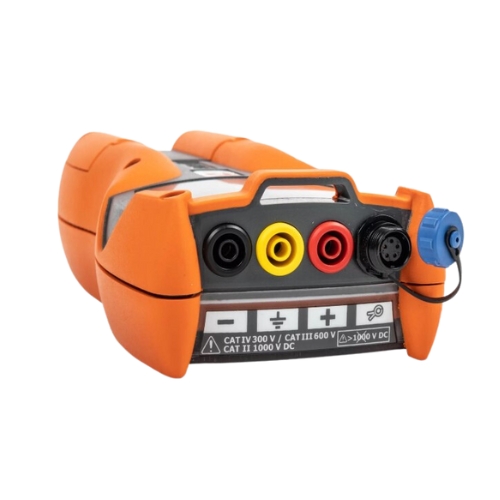

Photovoltaic Meter PVM-1020
Photovoltaic Meter PVM-1020

Photovoltaic Meter | PVM-1020

R36,552.00 ex vat

Photovoltaic Meter – Overview

The PVM-1020 photovoltaic meter includes a large collection of measurement functions. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing. The graphic display and all the buttons are backlit, ensuring easy reading in shaded areas. Its large memory significantly shortens the preparation time of documents after measurement. Measurement data from the PVM-1020 can be transferred to a computer via Bluetooth wireless communication. The downloaded data can be saved to popular formats and printed using the Sonel Reader software. The optional Sonel Reports software generates reports on electric shock protection.

Photovoltaic Meter  – Features

  • It can be used for category 1 measurements according to IEC 62446-1
  • AUTO mode for a sequence of measurements
  • Converts measured parameters into STC conditions according to IEC 60891
  • reSYNC function – automatic completion of results
  • The built-in LoRa radio interface
  • Built-in Bluetooth
  • Large measurement memory: 100 objects with 40 cells each
  • Backlit display and buttons

Available on back-order

SKU: WMGBPVM1020 Category: Tag:
Sonel Logo Square

Description

Photovoltaic Meter | PVM-1020

Parameter Measurement range Display range Resolution Accuracy
Voltage
AC voltage 0.0 V…600.0 V 0.0 V…600.0 V 0.1 V ±(2% m.v. + 2 digits)
DC voltage 0.0 V…1000.0 V 0.0 V…1000.0 V 0.1 V ±(0.5% m.v. + 2 digits)
Short circuit current ISC 0.0…20.0 A 0.0…20.0 A 0.1 A ±(1% m.v. + 2 digits)
Insulation resistance
Insulation resistance at AC side
Measuring voltage 250 V 250 kΩ…2.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…2.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Measuring voltage 500 V 250 kΩ…5.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…5.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Measuring voltage 1000 V 500 kΩ…9.999 GΩ acc.
to IEC 61557-2		 0.0 kΩ…9.999 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Insulation resistance at DC side
Measuring voltage 250 V / 500 V / 1000 V 250 kΩ…1.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…1.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Resistance of protective conductors and
equipotential bondings
Measurement of resistance of protective conductors and
equipotential bondings with ±200 mA current		 0.10 Ω…1999 Ω acc.
to IEC 61557-4		 0.00 Ω…1999 Ω
from 0.01 Ω
±(2% m.v. + 3 digits)
Measurement of resistance with low current 0.0 Ω…1999 Ω 0.0 Ω…1999 Ω
from 0.01 Ω
±(3% m.v. + 3 digits)
Current measurement 0.0 A…400.0 A 0.0 A…400.0 A
from 0.01 Ω
±(5% m.v. + 2 digits)
Power measurement 0.0 kW…100.0 kW 0.0 kW…100.0
kW		 0.1 kW ±(6% m.v. + 5 digits)
“m.v.” – measured value

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
