Multifunction Pressure and Flow Meter | DC410 Flow
Multifunction Pressure and Flow Meter - Overview
Multifunction Pressure and Flow Meter - Features
- Multi-functional
- Highly accurate
- Technician friendly
Air Velocity Meters
Air velocity Meters are used to measure airspeed and pressure. Also known as anemometers. These meters can often test other variables such as air temperature, pressure, relative humidity, and wind-chill factors.
-
Inline Air Flow Transmitter | FTE120-I
R4,614.00 ex vatInline Air Flow Transmitter - Overview
This inline air flow sensor has multiple diameters to choose from and uses an air volume standard calibration system (sonic nozzle) for flow calibration. Suitable for use in pneumatic systems, compressed air systems, and industrial machinery, as well as various industrial and electronic component processing processes. In industrial automation, accurate measurement of airflow is essential. Users can improve resource utilisation whilst saving manufacturing costs if done correctly. Leakage can also be monitored which enables timely repairs and reduced personnel injuries and accident risks. Airflow can also be measured in pneumatic systems to ensure the stability of airflow in the system and ensure normal system operation.
Inline Air Flow Transmitter - Features
- Multiple diameter ( DN10 / DN15 / DN20 / DN25 )
- Optional multiple output : 4 ... 20 mA / 0 ... 10 V / RS-485 / Frequency / Pulse ( Option )
- Accuracy : ±2% F.S. , Operating pressure : Max. 10 bar
- Calibrated by sonic nozzles calibration system
- Easy installation
- Polycarbonate housing, aluminium alloy pipe
- RS-485 programmable software : Data logger / Charts
Industrial Grade High Mass Flow Transmitter | FTM94/95
Price range: R37,101.00 through R56,801.00 ex vatIndustrial Grade High Mass Flow Transmitter - Overview
This industrial-grade thermal mass flow transmitter is housed in a rugged aluminium alloy case, making it suitable for use in a variety of harsh environments. It has a high accuracy level and long-term stability. It comes as either a duct or remote type installation and is easy to install. Suitable for a wide range of pipe diameters. The Thermal Mass Flow transmitter has an LCD Display for air velocity and temperature and has the option to display cumulative flow: m3, L. It can also switch between the following measurements for air velocity and volume: [m/s],[ft/s],[Nm3/h],[Nm/s],[L/min], and [m3/min].
Industrial Grade High Mass Flow Transmitter Features
- IP67 Rugged aluminium alloy case
- Fit for use in a variety of harsh environments
- Easy to install
- High accuracy
- Long-term stability
- Switchable physical quantities: Nm/s, L/min, m³/min (Air velocity & volume), m/s, ft/s, Nm³/h,
- LCD Display of cumulative flow: m³, L (Optional)
- LCD Display of air velocity and temperature
Thermal Air Velocity Transmitter Industrial Grade | FTM84-85
Price range: R21,858.00 through R25,211.00 ex vatThermal Air Velocity Transmitter - Overview
The Thermal Air Velocity Transmitter is an industrial grade, high-accuracy transmitter which operates at high speed and is quick to respond. It comes housed in a rugged aluminium casing which is IP67 rated and is suitable to be used in various harsh environments. It has an LCD monitor which displays air velocity and temperature.
Thermal Air Velocity Transmitter - Features
- Capable of temperature compensation
- Linear calibration air velocity by computer, analogue output or RS-485(Optional)
- High-speed, high-accuracy measurement, quickly response
- Thermal mass flow sensor
- LCD, display air velocity and temperature
- Switch multifunction physical quantities：[m/s]、[ft/s]、[km/h]、[mph]、[kont]
- DIP SWITCH and RS-485 function
- IP rating: IP67, rugged aluminium case, fit for a variety of harsh environments
- Follow customer needs to plan measuring range, analogue output, stations, and zero-point OFF SET or RS-485 adjustment zero-point OFF SET
- Free programmable software: Data logger / Maximum record 65535 data / Charts
Inline Type Air Flow Transmitter | FTM06D-I
Inline Type Air Flow Transmitter - Overview
This sensor's superior performance and convenient features address a wide range of measurement requirements in different application environments. It is the ultimate tool for precise airflow measurement. The FTM06D-I Inline Type Air Flow Transmitter uses the thermal mass flow principle for accurate airflow measurement. This principle enables accurate measurement, rapid response and stability, and delivers highly reliable results. It is capable of measuring airflow of up to 848 m³/h. Additionally, it features a cumulative flow function, allowing users to achieve comprehensive measurements and monitoring. The FTM06D-I undergoes calibration through an air volume standard calibration system providing users with a high accuracy of ±1.5% F.S. The inline-type design is compact and offers multiple pipe size options (DN15 / DN25 / DN40 / DN50). It is easy to install and suitable for environments with limited installation space. It can be seamlessly integrated into various equipment and systems. It also offers multiple signal output options, including 4 ... 20 mA / 0 ... 10 V / RS-485 / Frequency / Pulse. This allows users to easily integrate the sensor into their systems. Users can adjust the output settings through the free UI software and can simultaneously read instant airflow and cumulative flow through RS-485 connection.
Inline Type Air Flow Transmitter - Features
- Accurate Thermal Mass Flow Principle
- Achieving 1.5% F.S. accuracy through airflow calibration
- Ideal for High Airflow Measurement
- Airflow range up to 848 m³/h
- Instantaneous and cumulative flow
- Multiple pipe size options (DN15 / DN25 / DN40 / DN50)
- Compact Inline Type Design for Various Environments
- Multiple signal output for Convenient Monitoring
- Stainless steel housing, aluminium alloy pipe
Calorimetric Air Flow Meter | FTM06C-A
Calorimetric Air Flow Meter Overview
This flow meter utilises the calorific measuring principle. Two measuring elements as well as a heat source are located on the measuring tip. The effect of the air flowing through the meter is that heat energy is absorbed and conducted away, resulting in a lower temperature. The resulting temperature change is an indication of flow. This Air Flow Meter is suitable for various severe environments and can therefore be used in slightly corrosive air.
Calorimetric Air Flow Meter - Features
- Thermal mass flow
- Quick response
- Good sensitivity
- Turndown ratio 500 ：1
- High precision & accurate sensing at the lowest flow rate for metering applications
- Output: Analog / RS-485
- Use measured with square pipe or 2" pipe above
- IP rating： IP65
- Stainless steel casing, suitable for various severe environments
- Display Cumulative flow / Instantaneous flow

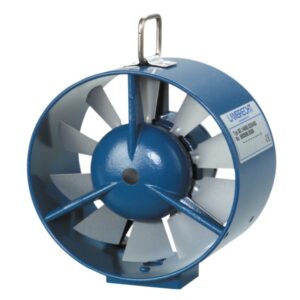

Vane Anemometer | 1468
Vane Anemometer - Overview
Sturdy and compact for fantastic air speed measurement. For mobile or stationary use. The cost-saving variant (1468) transmits an active analog output signal. It does not require any auxiliary power and has robust aluminium blades. High resolution, low starting values, and a large temperature range of application are characteristics of the variants with inductive proximity switches acc. to NAMUR. Bidirectional flow measurements are made possible with unit (1468 S9) by two inductive sensors and a rotational direction indicator.
Vane Anemometer - Features
- 10 blade impeller warrants fast response
- Wear-resistant measuring elements
- 3 variants for specific requirements available
- Cable length 3m
