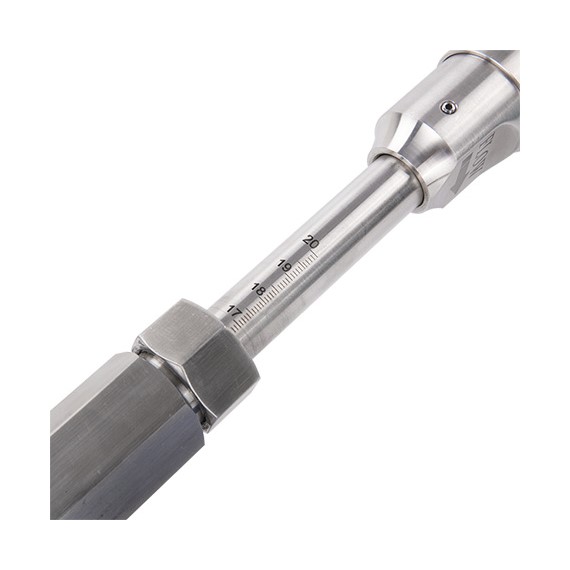

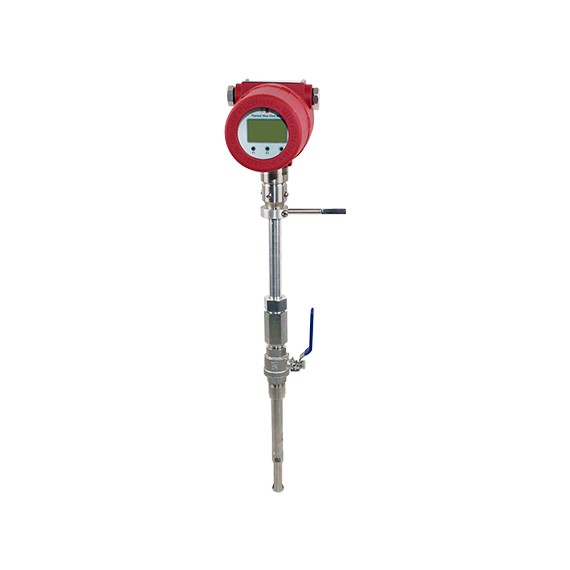

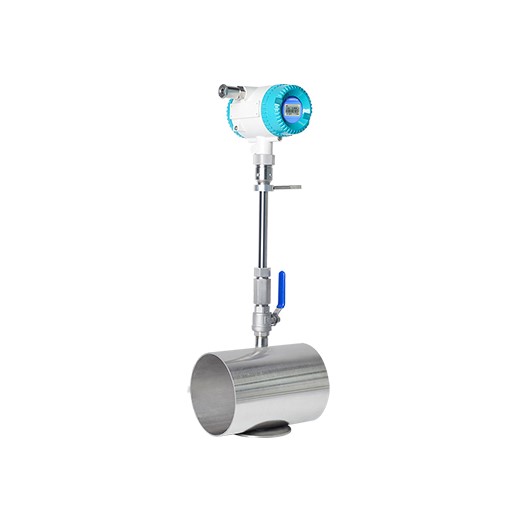

Insertion Thermal Mass Flow Meter – Overview

This one-of-a-kind mass flow meter is popular in industrial applications. It can be used for low-flow measurement. It features no moving parts, a nearly unobstructed flow path, and retains accuracy over a wide range of flow rates. It requires no temperature or pressure corrections. Straight pipe runs can be reduced by using dual-plate flow conditioning elements.  Installation is simple with minimal pipe intrusions. Easy to use. Suitable for all kinds of single or mixed gas flow measurement and gas leak detection. Sized from DN40~DN2000mm. It supports multiple communication methods, such as RS485 communication, and MODBUS protocol.

Insertion Thermal Mass Flow Meter – Features

  • Accuracy: +/-1~1.5%
  • Working Temperature: Sensor:-40~+220 degC Transmitter:-20~+45 degC
  • Measuring Medium: Various of Gas (Except acetylene)
  • Pipe Size: DN50-DN2000mmVelocity: 0.1-100Nm/s
SKU: QTMF Categories: , Tag:

Description

Insertion Thermal Mass Flow Meter | QTMF

Table 1: Insertion Thermal Gas Mass Flow Meter Parameter

Measuring Medium  Various of Gas (Except acetylene)
Pipe Size  (Insert connection) DN40-DN2000mm
Velocity  0.1-100Nm/s
Accuracy  inline: ±1.0%， insertion： ±1.5%
Working Temperature  Sensor:-40~+220 degC  Transmitter:-20~+45 degC
Working Pressure  Insertion Sensor: medium pressure ≤1.6Mpa

Flanged Sensor: medium pressure ≤4.0Mpa

Special pressure please double check
Power Supply  Compact type: 24VDC or 220VAC, Power consumption ≤18W

Remote type:220VAC,Power consumption ≤19W
Response Time  1s
Output  4-20mA(optoelectronic isolation,maximum load 500Ω),Pulse RS485(optoelectronic   isolation) and HART
Alarm Output  1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC
Sensor Type  Standard Insertion, Hot-tapped Insertion and Flanged
Construction  Compact and Remote
Pipe Material  Carbon Steel, Stainless Steel, Plastic etc.
Display  4 lines LCD Mass flow, Volume flow in standard condition, Flow totalizer, Date and   Time, Working time, and Velocity, etc.
Protection  IP65

Table 2: Insertion Thermal Gas Mass Flow Meter Sizing

Table 3: Common Use Gas Maximum Range

Calibre

( mm )

 Air Nitrogen ( N2 ) Oxygen ( O2 ) Hydrogen ( H2 )
40 450 450 226 70
50 700 700 352 110
65 1200 1200 600 185
80 1800 1800 900 280
100 2800 2800 1420 470
125 4400 4400 2210 700
150 6300 6300 3200 940
200 10000 10000 5650 1880
250 17000 17000 8830 2820
300 25000 25000 12720 4060
350 45000 45000 22608 5600
400 70000 70000 35325 7200
450 100000 100000 50638 9200
500 135000 135000 69240 11280
600 180000 180000 90432 16300
700 220000 220000 114500 22100
800 280000 280000 141300 29000
900 400000 400000 203480 36500
1000 600000 600000 318000 45000
2000 700000 700000 565200 18500

Table 4: Thermal Gas Mass Flow Meter Model Selection

Model QTMF X X X X X X X
Caliber
DN10-DN4000 (3/8″-158″)
Structure
 Compact C
Remote R
Explosion Proof
 Ex d IIC T6 Gb EX
Without W
Material
 SS304 304
SS316 316
others O
Connection
Flange
(DN10~DN300mm)
 PN10/PN16/PN25/PN40(DIN) D**
A15:150#, A30:300# (ANSI) A**
10K/20K/30K/40K (JIS) J**
Tri-clamp (DN10~DN100mm) C
Thread (DN10~DN100mm) T
Insertion (DN32~DN4000mm) I
Power Supply
 AC85~250V AC
DC24~36V DC
Signal Output
 4-20mA+Pulse+RS485 RS
4-20mA+Pulse+HART HT
