PVM-1020 Kit – Overview

PVM-1020

The PVM-1020 photovoltaic meter includes a large collection of measurement functions. The functions are selected with a rotary switch. Additional parameters are set with buttons located on the housing. The graphic display and all the buttons are backlit ensuring easy reading in shaded areas. Its large memory significantly shortens the preparation time of documents after measurement. Measurement data from the PVM-1020 can be transferred to a computer via Bluetooth wireless communication. The downloaded data can be saved to popular formats and printed using the Sonel Reader software. The optional Sonel Reports software generates reports on electric shock protection.

IRM-1

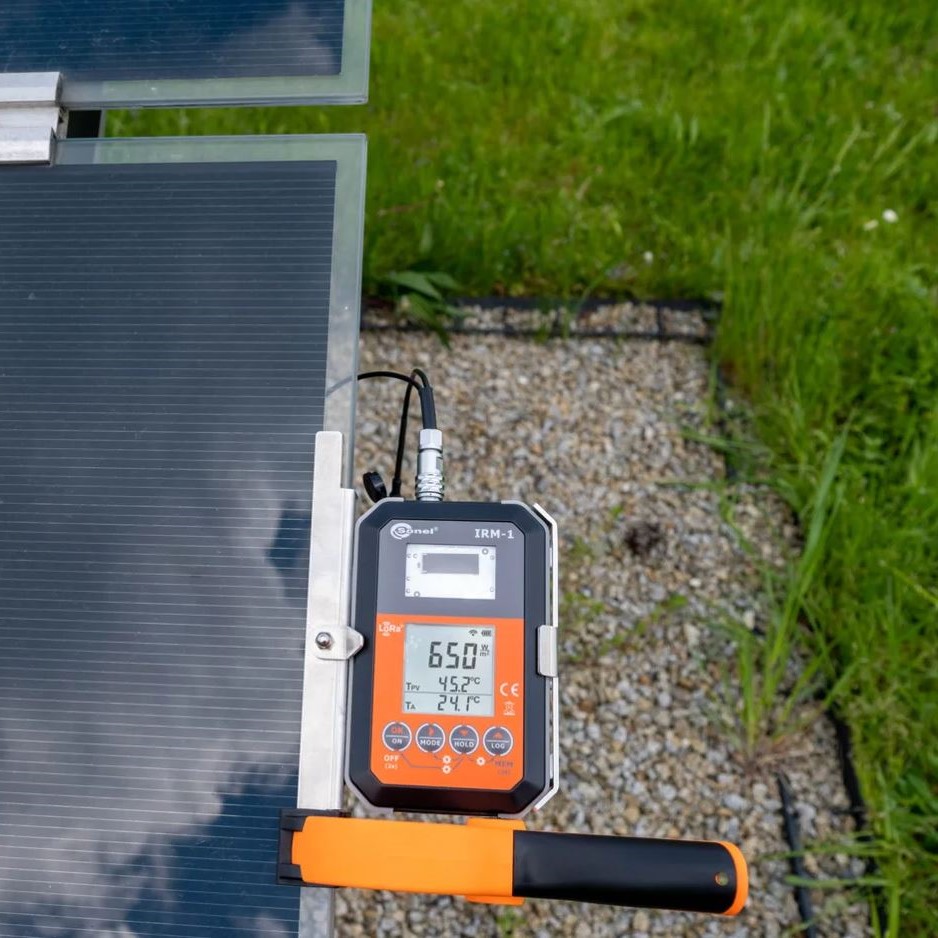

The IRM-1 is an indispensable unit for testing PV systems. By measuring solar radiation values, as well as panel and ambient temperatures, it provides the necessary data to convert the results into STC conditions. It is used as a tool in the PV plant design process, and in diagnosing panel shading problems. It performs well in harsh environmental conditions. Protection against dust and water is provided by the housing rated at IP65.  Measurement data from the IRM-1 can be transferred to a computer via the USB port. In addition, the device has a built-in wireless LoRa interface (Long Range) for automatic data exchange with the PVM-1020 meter over long distances (a larger range than the Bluetooth technology). A built-in recorder has a memory for 5000 records.

PVM-1020 Kit – Features

PVM-1020

  • Can be used for category 1 measurements according to IEC 62446-1
  • AUTO mode for a sequence of measurements
  • Converts measured parameters into STC conditions according to IEC 60891
  • reSYNC function – automatic completion of results
  • The built-in LoRa radio interface
  • Built-in Bluetooth
  • Large measurement memory: 100 objects with 40 cells each
  • Backlit display and buttons

IRM-1

  • Measures solar radiation and temperature
  • LoRa interface for long-range communication with the PVM-1020 meter
  • Automatic data synchronization with the PVM-1020 meter
  • Built-in compass and inclination sensor
  • Built-in recorder
  • Large measurement memory: 999 cache memory cells and 5000 records
  • Solar radiation intensity in W/m2 or BTU/ft2 h
  • PV panel temperature in °C or °F
  • Ambient temperature in °C or °F



8 in stock (can be backordered)

SKU: WMGBPVM1020KIT Category: Tag:
Sonel Logo Square

Description

PVM-1020 Kit

Specifications

Photovoltaic Meter | PVM-1020

Parameter Measurement range Display range Resolution Accuracy
Voltage
AC voltage 0.0 V…600.0 V 0.0 V…600.0 V 0.1 V ±(2% m.v. + 2 digits)
DC voltage 0.0 V…1000.0 V 0.0 V…1000.0 V 0.1 V ±(0.5% m.v. + 2 digits)
Short circuit current ISC 0.0…20.0 A 0.0…20.0 A 0.1 A ±(1% m.v. + 2 digits)
Insulation resistance
Insulation resistance at AC side
Measuring voltage 250 V 250 kΩ…2.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…2.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Measuring voltage 500 V 250 kΩ…5.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…5.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Measuring voltage 1000 V 500 kΩ…9.999 GΩ acc.
to IEC 61557-2		 0.0 kΩ…9.999 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Insulation resistance at DC side
Measuring voltage 250 V / 500 V / 1000 V 250 kΩ…1.000 GΩ acc.
to IEC 61557-2		 0.0 kΩ…1.000 GΩ from 0.1 kΩ ±(3% m.v. + 8 digits)
Resistance of protective conductors and
equipotential bondings
Measurement of resistance of protective conductors and
equipotential bondings with ±200 mA current		 0.10 Ω…1999 Ω acc.
to IEC 61557-4		 0.00 Ω…1999 Ω
from 0.01 Ω
±(2% m.v. + 3 digits)
Measurement of resistance with low current 0.0 Ω…1999 Ω 0.0 Ω…1999 Ω
from 0.01 Ω
±(3% m.v. + 3 digits)
Current measurement 0.0 A…400.0 A 0.0 A…400.0 A
from 0.01 Ω
±(5% m.v. + 2 digits)
Power measurement 0.0 kW…100.0 kW 0.0 kW…100.0
kW		 0.1 kW ±(6% m.v. + 5 digits)
“m.v.” – measured value

Solar Radiation and Temperature Meter | IRM-1

Specifications
Parameter Measurement range Display range Resolution Accuracy
Irradiance
Measurement in W/m² 100 W/m² …1400 W/m² 0 W/m² …1400 W/m² 1 W/m² ±(5% m.v. + 2 digits)
Measurement in BTU/ft² h 32 BTU/ft² h…444 BTU/ft²h 0 BTU/ft² h…444 BTU/ft² h 1 BTU/ft² h ±(5% m.v. + 2 digits)
PV and ambient temperature
Measurement in °C -20.0°C…100.0°C -20.0°C…100.0°C 0.1°C ±(1% m.v. + 5 digits)
Measurement in °F -4.0°F…212.0°F 4.0°F…212.0°F 0.1°F ±(1% m.v. + 5 digits)
Inclination angle -90°…+90° -90°…+90° 1° ±2°
Position direction – compass 0°…360° 0°…360° 1° ±5°

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Solar Radiation and Temperature Meter | IRM-1
