Humidity Data Logger – HygroLog – HL-1D

Sale!

Humidity Data Logger – HygroLog – HL-1D

R1,864.00 R1,416.00

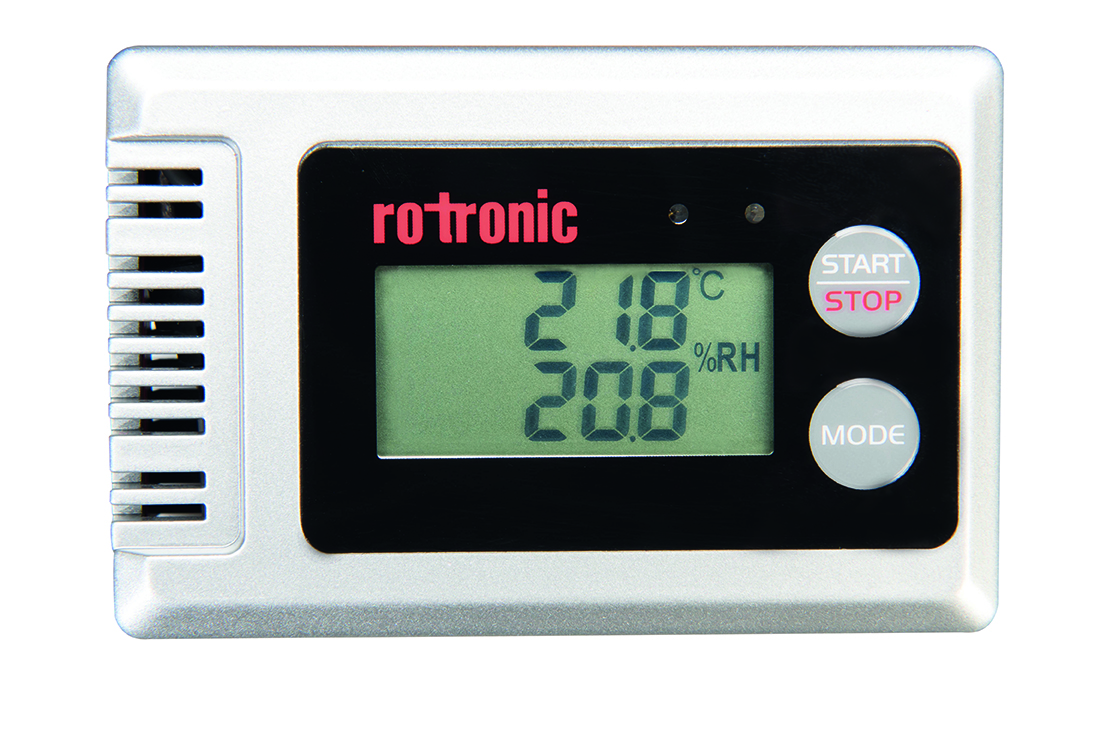

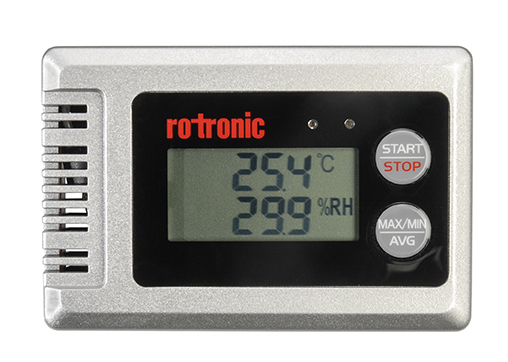

Economical Humidity Data Logger

The HL1D is a compact, low cost humidity data logger. Capable of ±3.0 %RH and ±0.3°C measurement accuracy. Memory can store up to 32,000 data points. HW4-Lite software key included in the purchase (software downloaded from internet).

Humidity Data Logger Features

  • Accurate humidity and temperature measurement±3.0 %RH and ±0.3 °C
  • Compact design with a high IP67 protection
  • FDA 21 CFR Part 11 / GAMP 5 conform software HW4
  • Large storage capacity: 32,000 lines
  • Programmable start and stop time for data logger with the HW4 software
  • Long battery life (up to 3 years)
  • MIN/MAX/AVG Humidity and temperature statistical function
  • Includes HW4-lite software key for programmable and analytical software
  • Clear LCD with visual alerts

Description

RANGE OF APPLICATION -20…70 °C / 0…100 %RH
ACCURACY AT 23 ±5 °C ±3.0 % Relative Humidity / ±0.3 °C
POWER SUPPLY 1x CR2 battery
BATTERY LIFE 3 years (at a logging interval of 1 h)
HUMIDITY DATA LOGGER SENSOR ROTRONIC HYGROMER® IN-1
TEMPERATURE SENSOR NTC
LOGGING INTERVAL 30 s…24 h
DISPLAY TYPE LCD, 2 lines for Humidity and Temperature
DISPLAY REFRESH RATE 5 sec. (Standard)
(when logging same refresh rate as log interval)
LED INDICATOR 2 LEDs
Right LED flashes green during data logging
Left LED flashes red when alarm limits breached or low battery
BATTERY INDICATOR Yes
HW4 COMPATIBLE V3.4.1 and higher
STORAGE CAPACITY 32,000 data point memory (Temperature & Humidity Data Logger)
COMMUNICATION INTERFACES Mini USB
IP PROTECTION RATING IP67
FDA/GAMP COMPATIBILITY FDA 21 CFR Part 11 / GAMP 5 conform software HW4
ADJUSTMENT Humidity 1-point
DIMENSIONS 90 x 60 x 23 mm
WEIGHT 85 g

Brand

Rotronic

Rotronic Logo

Additional information

Weight 85 g
Dimensions 90 × 60 × 23 cm
Set

Includes Cable AC0003, Standard

Operating Temperature Max:

Operating Temperature Min:

Relative Humidity Range Max:

Relative Humidity Range Min:

Temperature Range Max:

Temperature Range Min:
