Room Temperature and Humidity Transmitter | Space Mount HygroFlex1 HF1

Room Temperature and Humidity Transmitter HygroFlex1 HF1

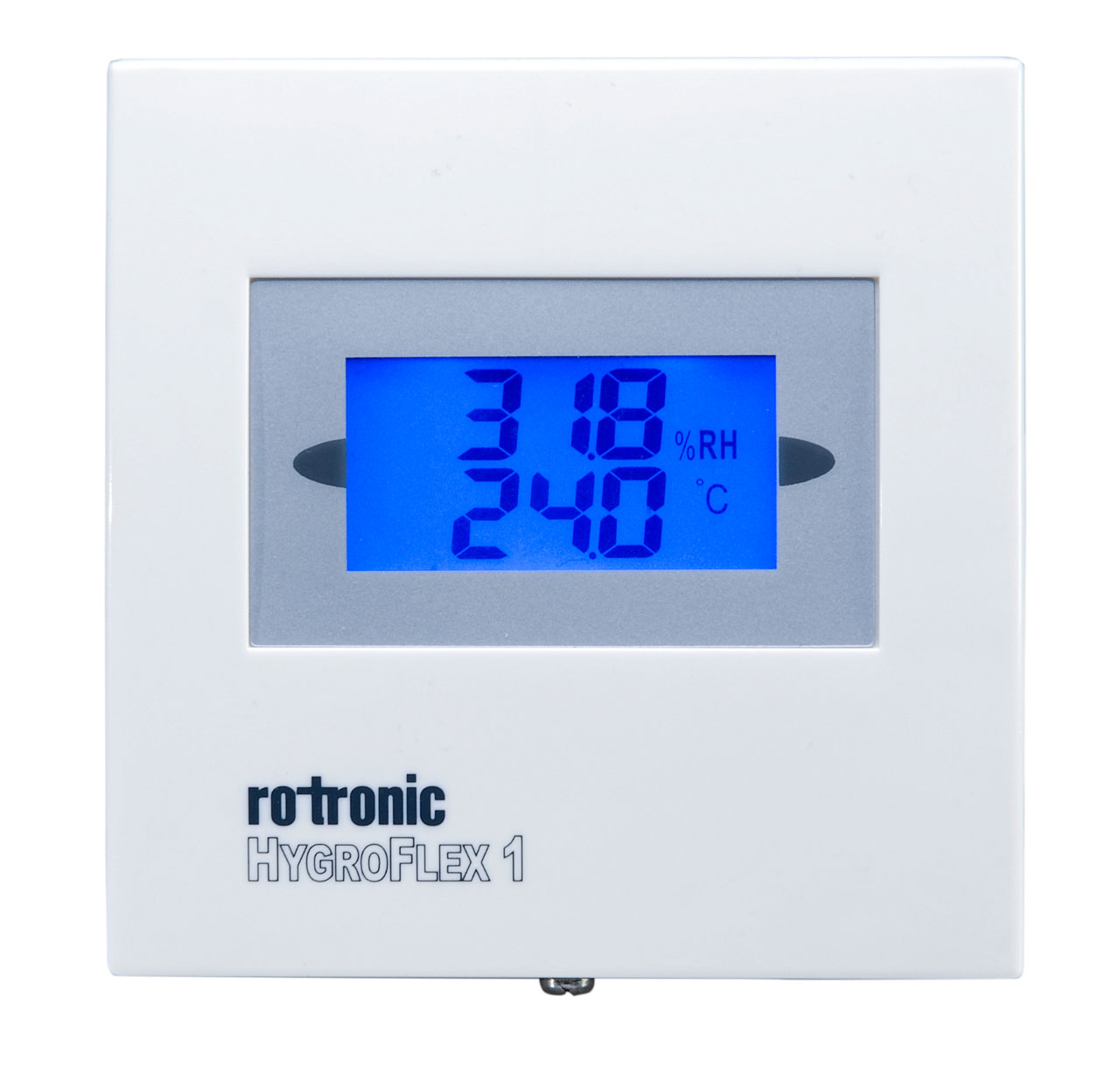

HF1 Space Mount with Display Humidity and Temperature transmitter Front View

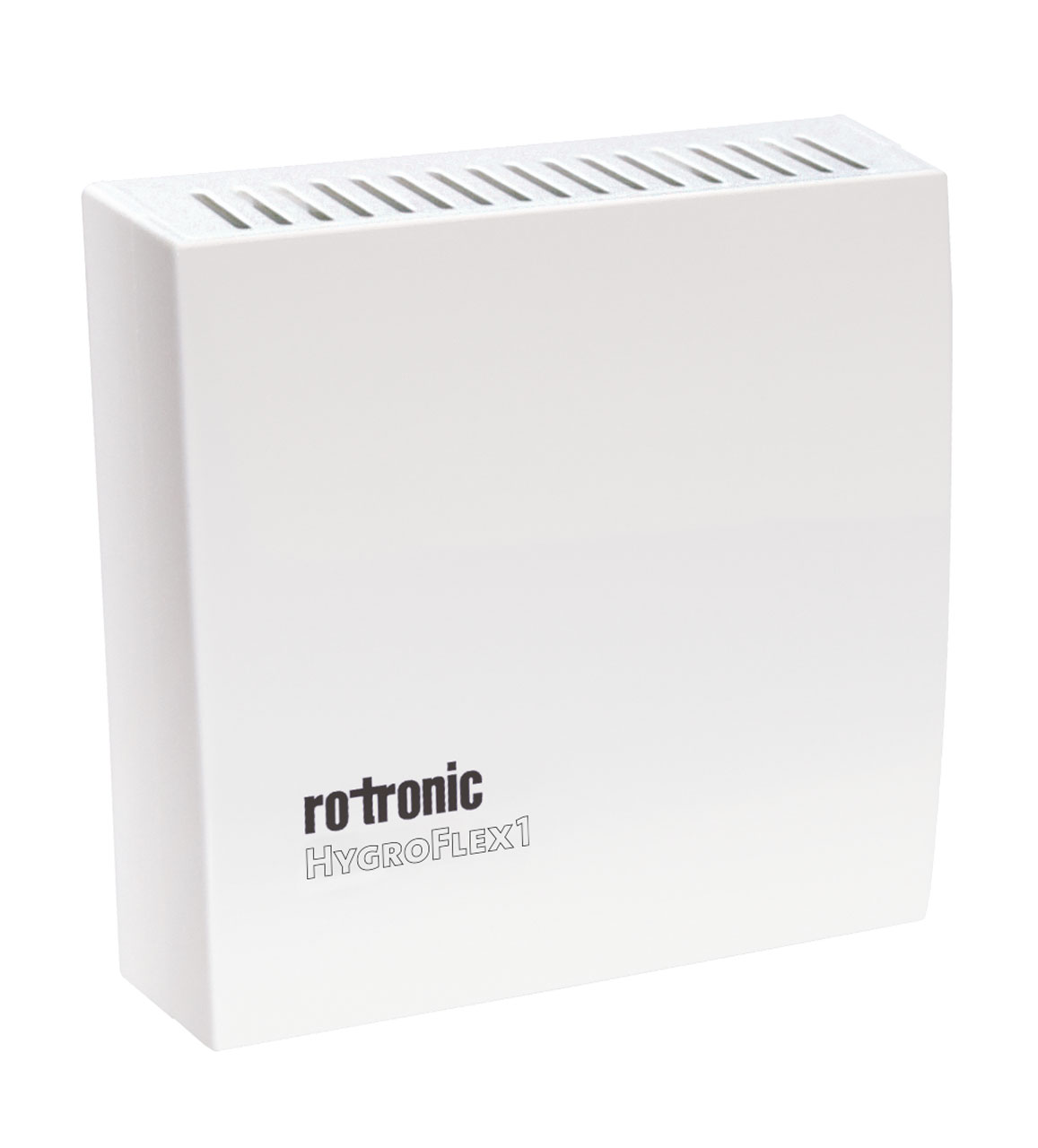

HF1 Space Mount Humidity and Temperature transmitter Angle View

Room Temperature and Humidity Transmitter | Space Mount HygroFlex1 HF1

Price range: R7,126.00 through R7,816.00 ex vat

Room Temperature and Humidity Transmitter – Overview

The HygroFlex1 series are inexpensive HVAC transmitters for relative humidity and temperature. This Room Transmitter is equipped with the stable Hygromer® IN-1 sensor. Its aesthetic design makes it ideal for the office space. The unit comes with pre-defined scales which can be changed with the optional ROTRONIC HW4/SW21 software.  This can also calibrate and adjust the transmitter.

Room Temperature and Humidity Transmitter – Features

  • Transducer for relative humidity and temperature
  • Two scalable analogue voltage or current outputs
  • Stable Hygromer® IN-1 humidity sensor
  • Adjustable at 35 % / 80 %RH
  • USB service interface
  • Small footprint
  • Easy mechanical installation
Clear
SKU: N/A Categories: , Tag:

Description

Room Temperature and Humidity Transmitter | Space Mount HygroFlex1 HF1

OPERATING RANGE -20…50 °C / 0…100 %RH (non-condensing)
ACCURACY AT 23 ±5 °C < 2 %RH (10…90 %RH) / ± 0.3 °K (0…50 °C)
POWER SUPPLY / POWER CONSUMPTION 12…28 VAC / 15…40 VDC
CURRENT CONSUMPTION 2-wire type max. 40mA / 3/4 wire type, with voltage output: < 15 mA, with current output: < 55 mA
LONG-TERM STABILITY < 1.5 %RH per year
HUMIDITY SENSOR ROTRONIC HYGROMER® IN-1
STANDARD TEMPERATURE SCALE 0…50 °C or 0…100 °F
TEMPERATURE SENSOR Thermistor
RESPONSE TIME 4s
RESPONSE TIME T 63 30 s (63 % of a jump 35…80 %RH) without filter
PARAMETERS SHOWN Humidity and/or temperature
CIRCUIT TYPE 2 -Wire or 3/4-Wire
ANALOGUE OUTPUTS SCALEABLE BY THE USER 2
MIN. / MAX. LOAD VOLTAGE / CURRENT SIGNAL 4…20 mA ; 0…1/5/10 VDC
HOUSING ABS
IP PROTECTION RATING IP65
CE / EMC CONFORM 2004/108/EC
WEIGHT Space mount version type L and S: 90 g

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Room Temperature and Humidity Transmitter | HygroFlex1 HF1

Additional information

Weight 140 g
Options

4…20mA, Space Mount with Display, 2x Wire Loop Powered, 4…20mA, Space Mount with Display, 3/4 Wire

Brand

Rotronic
