CO2 Display

CO2 Display

Call for price

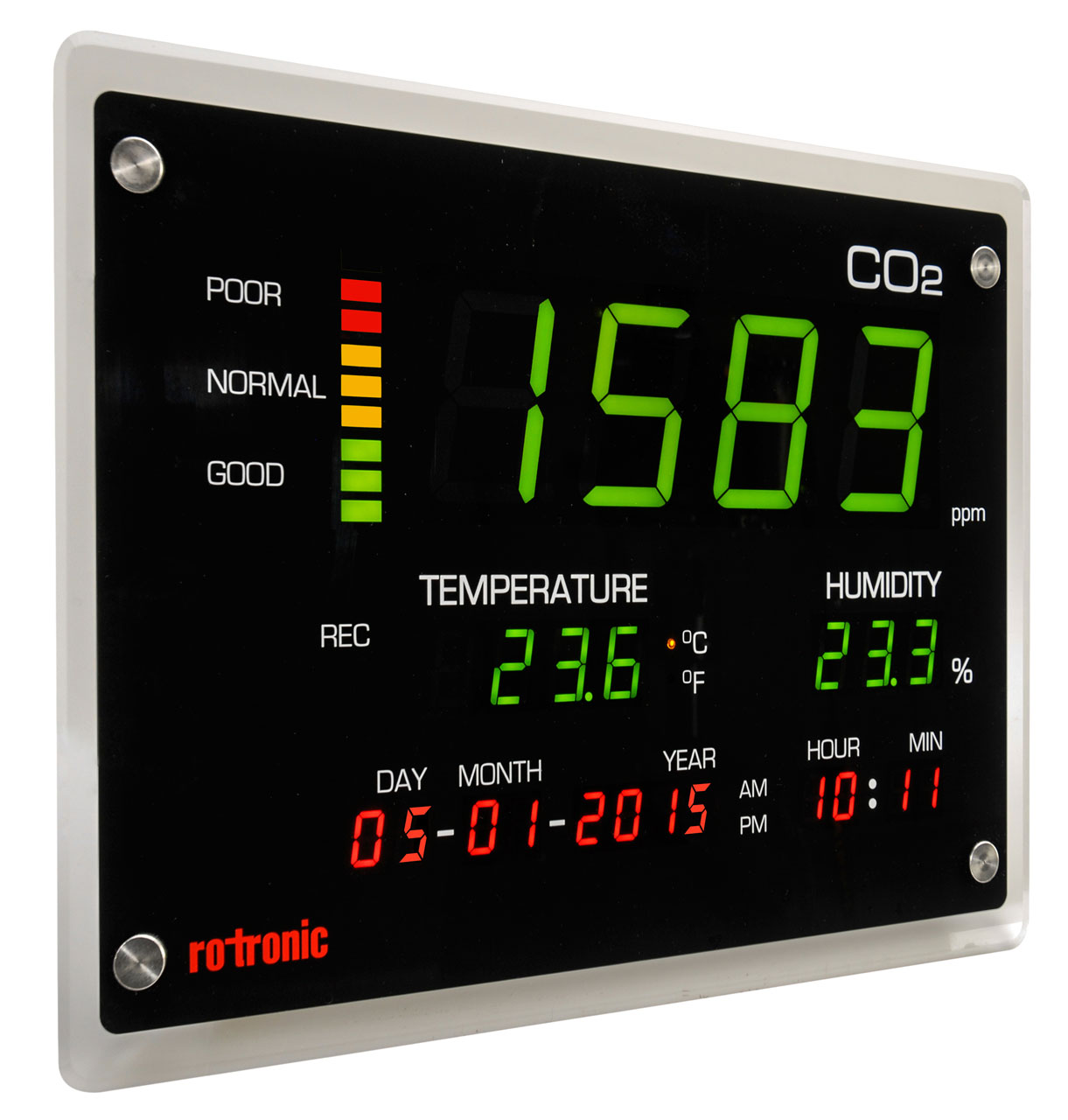

This CO2 display is the latest development that simultaneously measures and records CO2, humidity and temperature and can be wall-mounted or sit on a bench-top. Configurable directly via buttons and stored data can be exported to a USB memory stick for analysis with the free ROTRONIC software package SW21. This instrument offers unbeatable value for money, equipped with a stable ROTRONIC HYGROMER® IN-1 humidity sensor.

Applications
Indoor Air Quality for: Open-Plan Offices, Classrooms, Meeting Rooms, Shopping Centers, Fitness Studios…

Features

  • Adjustable, visual CO2 indicator
  • Measures and records CO2, relative humidity and temperature
  • Accuracy ±2.5 %RH / ±0.3 K / ±30 ppm + 5% of measured value

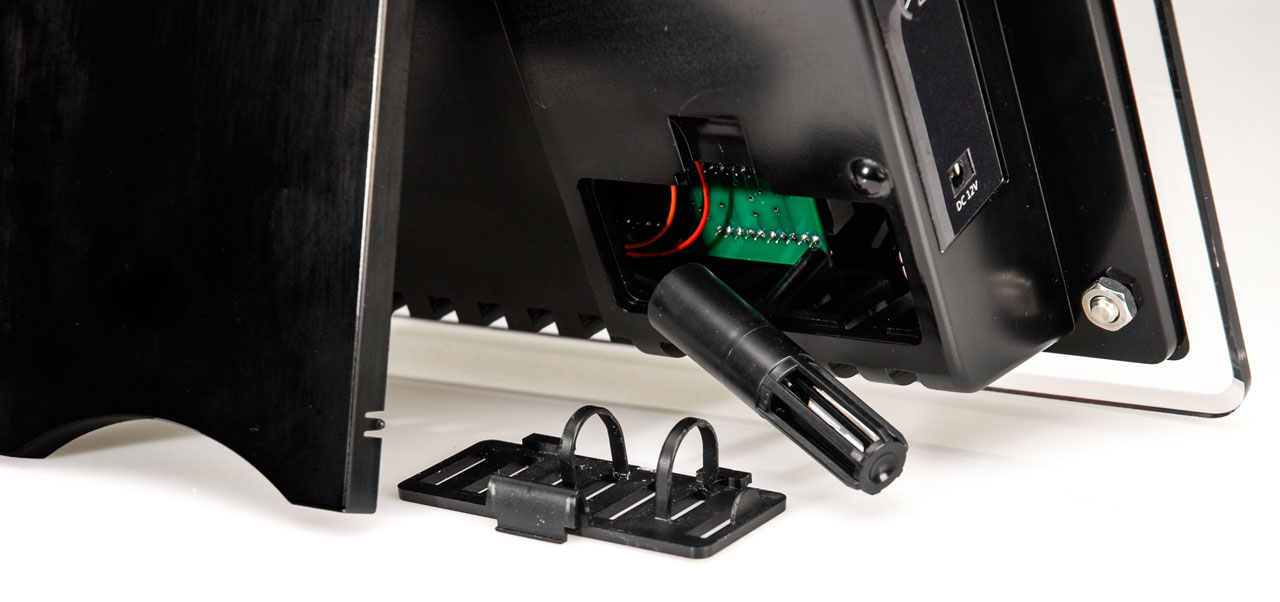

  • Humidity sensor HYGROMER® IN-1
  • 18,000 data point memory for CO2, humidity and temperature values
  • Display of date and time
  • Large, easy-to-read display

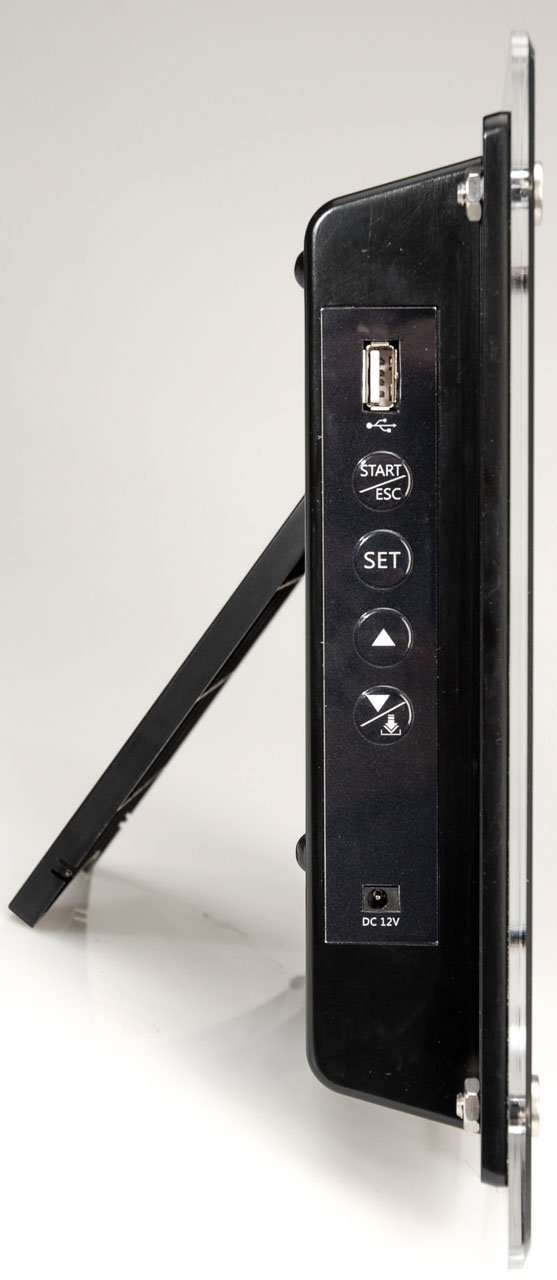

  • USB access for data download

Description

RANGE OF APPLICATION 0…50 °C / 0…95 %RH, non-condensing
ACCURACY AT 23 ±5 °C ±30 ppm ±5 % of the measured value, <2.5 %RH (10…90 %RH), ±0.3 °K
MEASURING RANGE 0…5000 ppm / 0…100 %RH / -20…60 °C
MEASUREMENT PRINCIPLE Infrared (NDIR) with automatic calibration (ABC)
ADJUSTMENT POINTS 0, 400 ppm and 35, 80 %RH
PRESSURE DEPENDENCY +1.6 % reading per kPa
ZERO DRIFT <10 ppm/year

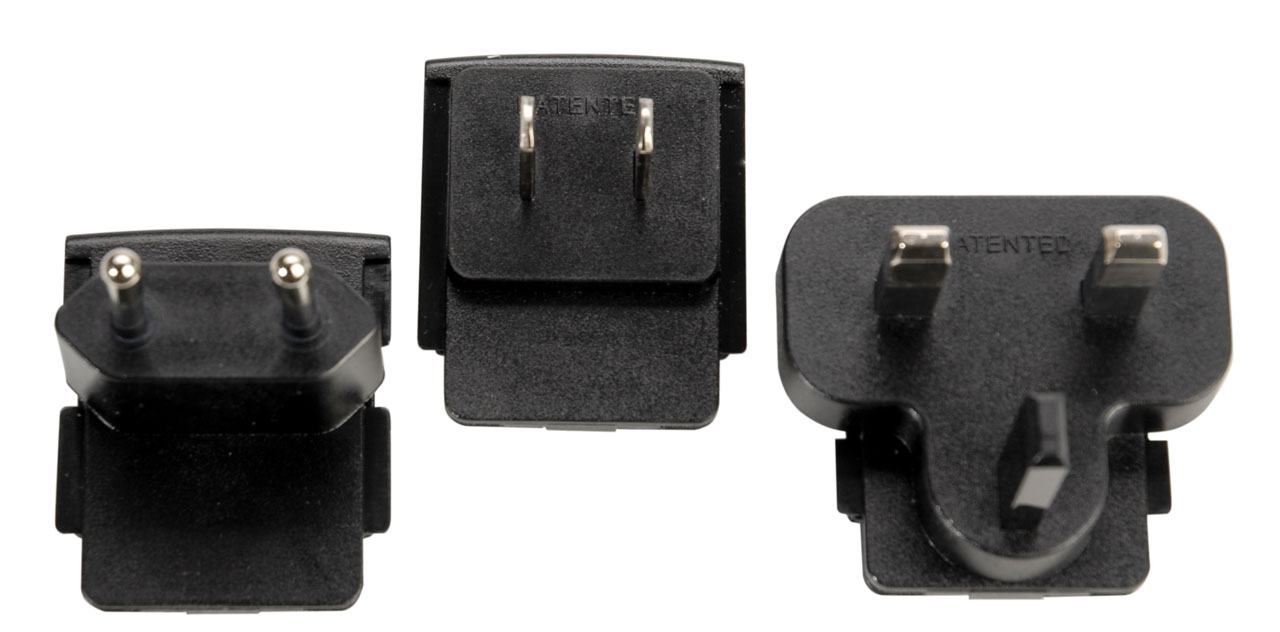

POWER SUPPLY / POWER CONSUMPTION AC adapter 12 VDC
CURRENT CONSUMPTION 700 mA (max)
WARM-UP TIME <1 min.
LONG-TERM STABILITY < 1.5 %RH per year
HUMIDITY SENSOR ROTRONIC HYGROMER® IN-1
TEMPERATURE SENSOR NTC
RESPONSE TIME CO2 : <3 min. diffusion time / T°: 4s
RESPONSE TIME T 63 <30 s, without filter
PARAMETERS SHOWN CO2, relative humidity and temperature
ALARM INDICATORS Adjustable for CO2 measurement
CLOCK Real time clock
MEMORY SIZE 18,000 values with time stamp, automatic recording (%RH / °C / ppm)
HOUSING ABS
CE / EMC CONFORM 2004/108/EC
MAINTENANCE No maintenance (standard indoor application)
DIMENSIONS 330 x 250 x 50 mm
WEIGHT 1400 g

Brand

Rotronic

Rotronic Logo

Additional information

CO2 Range Max:

CO2 Range Min:

Operating Humidity Max:

Operating Humidity Min:

Relative Humidity Range Max:

Relative Humidity Range Min:

Operating Temperature Max:

Operating Temperature Min:

Temperature Range Max:

Temperature Range Min:
