Relative Humidity and Temperature Transducer | Wall Mount Hygroflex1 HF1

Relative Humidity and Temperature Transducer Hygroflex1 HF1
 3

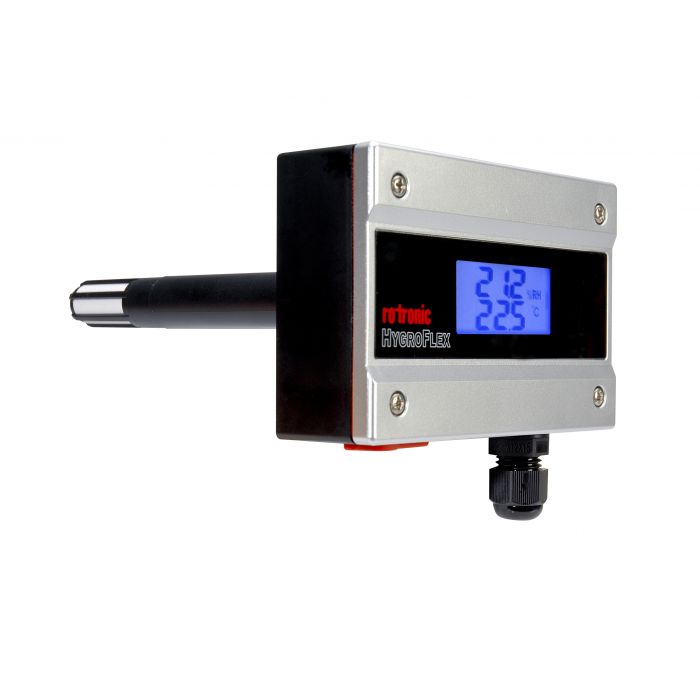

Wall Mount Relative Humidity and Temperature Transducer Hygroflex 1

Relative Humidity and Temperature Transducer | Wall Mount Hygroflex1 HF1

Price range: R7,126.00 through R7,816.00 ex vat

Relative Humidity & Temperature Transducer – Overview

These Wall mount transmitters are equipped with the stable Hygromer® IN-1 sensor and boast unbeatable value for money. The HygroFlex1 series is an inexpensive HVAC transducer for relative humidity and temperature. The units come pre-configured to a specific scale which can be changed with the optional ROTRONIC HW4/SW21 software. This can also calibrate and adjust the transducer.

Relative Humidity & Temperature Transducer – Features

  • Transducer for relative humidity and temperature
  • Two scalable analogue voltage or current outputs
  • Stable Hygromer® IN-1 humidity sensor
  • Adjustable at 35 % / 80 %RH
  • USB service interface
  • Small footprint
  • Easy mechanical installation
Clear
SKU: N/A Category: Tags: ,

Description

Relative Humidity and Temperature Transducer | Hygroflex1 HF1

OPERATING RANGE -20…50 °C / 0…100 %RH (non-condensing)
ACCURACY AT 23 ±5 °C < 2 %RH (10…90 %RH) / ± 0.3 °K (0…50 °C)
POWER SUPPLY / POWER CONSUMPTION 12…28 VAC / 15…40 VDC
CURRENT CONSUMPTION  3/4 wire type, with voltage output,  with current output: < 55 mA
LONG-TERM STABILITY < 1.5 %RH per year
HUMIDITY SENSOR ROTRONIC HYGROMER® IN-1
STANDARD TEMPERATURE SCALE 0…50 °C or 0…100 °F
TEMPERATURE SENSOR Thermistor
RESPONSE TIME 4s
RESPONSE TIME T 63 30 s (63 % of a jump 35…80 %RH) without filter
PARAMETERS SHOWN Humidity and/or temperature
CIRCUIT TYPE  3/4-Wire
ANALOGUE OUTPUTS SCALEABLE BY THE USER 2
MIN. / MAX. LOAD VOLTAGE / CURRENT SIGNAL 4…20 mA ;
HOUSING ABS
IP PROTECTION RATING IP65
CE / EMC CONFORM 2004/108/EC
WEIGHT Wall version type W and A: 140 g

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Relative Humidity and Temperature Transducer | Hygroflex1 HF1

Additional information

Weight 140 g
Options:

Wall Mount, 2 wires, 4…20 mA, 0…50 °C , No Display, Wall Mount, 3 wires, 4…20 mA, 0…50 °C , With Display, Wall Mount, 3 wires, 4…20 mA, 0…50 °C, No Display

Brand

Rotronic
