Description

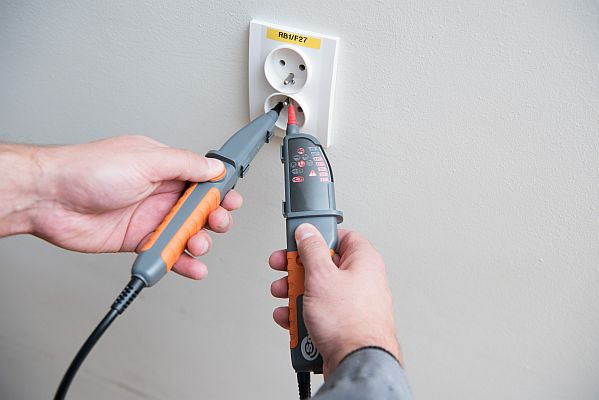

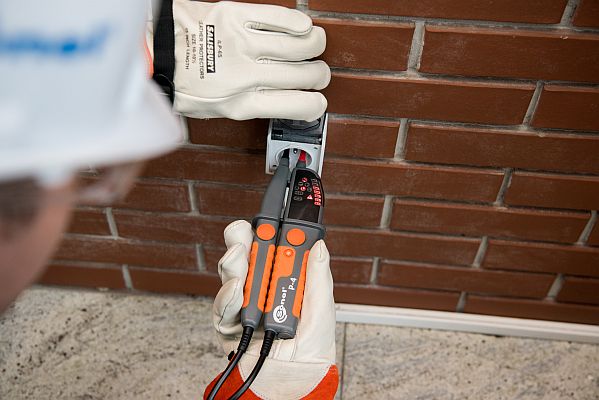

Indication of direct and alternating voltages:

• on the diode bar (bar graph): 12, 24, 50, 120, 230, 400, ≥690 V
• determination of voltage: alternating or direct polarization

Circuit continuity test:

• signaling for resistance for R ≤ 400 kΩ
• light and sound signaling

Phase spin indicator:

• phase sequence indication for voltage> 100 V

Unipolar phase designation:

• optical and acoustic signaling for voltage> 100 V

Residual Current Circuit Breaker Test:

• breaker test with I _Δn ≤30 mA

Other data:

• Operating frequency: 16..400 Hz
• Measurement category according to PN-EN 61010-1: CAT III 1000 V, IV 600 V
• Housing protection degree according to PN-EN 60529: IP65
• Type of insulation according to PN-EN 61010-1: double, class II
• Meter power supply: 2 x LR03 AAA 1.5 V (alkaline cells recommended)
• Working / storage temperature: -15 .. + 55 ° C / -20 .. + 70 ° C
• Dimensions: 275 x 82 x 36 mm
• Weight without batteries: 267 g
• Measuring tips: Ø2 mm / Ø 4 mm / length 4mm (GS38)

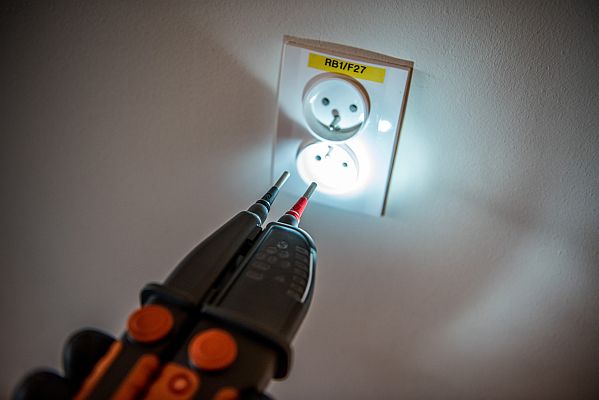

• Measurement place backlight: built-in flashlight
• The instruments meet the requirements of the following standards: PN-EN 61326-1, PN-EN 61326-2-2, PN-EN 61010-1, PN-EN 61243-3
• Warranty: 24 months

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
