Electricians

5
CMP-200 Clamp-On AC Leakage Current Meter
R1,504.00 ex vat

Clamp-On AC Leakage Current Meter - Overview

The CMP-200 digital clamp meter is designed for clamp measurements of AC leakage current.

Clamp-On AC Leakage Current Meter - Features
- high resolution (0,1 mA)
- three measuring ranges: 200 mA, 2 A, 200 A
- display LCD 3½ digits (max 1999)
- white LED backlight
- internal diameter clamp approx. 30 mm (1,2")
- DATA HOLD function, for holding measured values
- MAX function
- AUTO-OFF function
- double moulded casing
Add to basket
1
Advanced Industrial Digital Multimeter | CMM-60
R12,861.00 ex vat

Advanced Industrial Digital Multimeter - Overview

The CMM-60 multimeter allows you to record data thanks to the Trend Capture function showing a historical graph from the built-in memory. It is also possible to transfer data and analyse the results in the Multimeter Software. The device facilitates the diagnostics of potential problems covering the operation of industrial automation, electromechanical devices, motors and distribution of electricity. Precise indications, the convenience of use and early detection of irregularities in the operation of machines and devices are the main benefits of having this device in your equipment. All whilst adhering to strict safety requirements during work in industrial conditions.

Advanced Industrial Digital Multimeter - Features
- Colour display with a counting range of up to 50,000 digits
- Allows reading at a wide-angle in poor lighting conditions
- Quickly detect irregularities due to measurement results displayed in graphical form
- Over 14 measurement functions
- Display the value of the constant and variable component or the sum during voltage measurement
- The 4~20mA function for measurement of the control circuits of temperature, pressure, pH or flow sensors
- True RMS for AC voltage and current allows measuring the effective value of distorted waveforms
- Built-in low-pass filter
- Save results of fast 1ms waveforms thanks to the PEAK value measurement function
- Relative measurement function allows elimination of resistance values of test leads
- Display the result of the measurement of the constant and alternating components of the signal simultaneously
- Real-time clock to add date and time of measurement to each sample
- Recalling measurement results from the built-in memory for 2000 measurements
- Registration of maximum and minimum values
- Calculation of the average of current measurements
- Built-in Bluetooth
- HELP function
- Optional strap with a hook
- IP67 protection level
- The rotary switch has been designed for easy handling
- Dedicated lithium-polymer battery
- A dedicated charger and power supply for charging the battery without removing it
"m.v." means a standard measured value

Add to basket
2
True RMS Industrial Digital Multimeter CMM-40
R4,513.00 ex vat

Industrial Digital Multimeter - Overview

This Industrial Digital multimeter CMM-40 was designed for measurements of AC/DC voltage, AC/DC current, resistance, capacitance, frequency (electrical and electronic), duty cycle, temperature, testing diodes and continuity. It is a Cat IV Digital multimeter rated up to 600V or Cat III up to 1000V.

Industrial Digital Multimeter - Features
- 2 Years Warranty
- Auto/manual range selection
- display 4¾ digits (40000 max)
- "DATA HOLD” function, for holding measured values
- "REL” function, comparing measurements relative to a stored reference value
- "MAX/MIN” function
- "PEAK HOLD” function
- memory for 2000 measurement results
- continuity test with acoustic signalling (beeper)
- "AUTO-OFF” function
- double moulded, IP65 waterproof casing
Add to basket
1
Industrial Multimeter With Bluetooth | CMM30
R3,836.00 ex vat

Industrial Multimeter CMM30 - Overview

The Industrial Multimeter with Bluetooth CMM-30 model is a device from a new generation of industrial multimeters that combines versatility, modernity, and extraordinary durability. The instrument comes with 11 basic measurement functions together with additional functions to provide a wide range of applications. The smartphone app enables remote reading and saving of measurements, even from places with difficult access thanks to wireless communication. The backlight of the device automatically adjusts the brightness level of the screen and the control panel to the prevailing conditions, while the built-in flashlight allows working in the dark. The innovative design combines drop protection, IP67 casing, and ease of use, even with dielectric gloves. This device is created for electricians who value quality and innovation.

Industrial Multimeter CMM30 - Features
- 11 measurement functions
- AC/DC voltage measurement
- AC/DC measurement
- Resistance measurement
- Capacity measurement
- Temperature measurement
- Duty Cycle measurement
- Frequency measurement
- Manual and Automatic range selection
- Simultaneously display the sum of DC and AC components
- HOLD function to capture stable readings of noisy signals
- Recording maximum/minimum/average values
- Relative measurements
- Display the peak value of the measured signal
- True RMS for AC voltage and current
- Built-in Bluetooth for wireless communication
- Beeper for circuit continuity
- Built-in flashlight
- Automatic backlight
- Robust housing with IP67 protection
- Rotary switch designed for easy handling
- Increased drop protection
- Auto-OFF function
- 6000 counts display
- An optional strap with a hook
Datasheet

Add to basket
3
Modern Digital Multimeter with Flashlight, Bluetooth and IP65 Rated | CMM-11
R2,219.00 ex vat

Modern Digital Multimeter - Overview

This Digital multimeter is the perfect solution for every electrician, fitter, installer and maintenance crew. The CMM-11 multimeter is designed for quick diagnostics of devices and electric circuits. Thanks to an ergonomic design and pocket size, CMM-11 will find a place in every tool bag and will not take much space. It has all the basic measuring functions you would come to expect of a modern-age digital multimeter. Due to the rubberised housing, it will resist falls up to 2,5 meters from mechanical damage.

Modern Digital Multimeter - Features
- manual and automatic range selection
- Cat III 600V Rated
- built-in flashlight
- HOLD function for holding measured values
- MAX/MIN function for displaying extreme values
- compact housing
- increased resistance to falls
- beeper for sound signal circuit continuity
- auto-OFF function
- display 3¾ digit (count max 4000)
Add to basket
Portable Appliance Tester | PAT-10
R23,842.00 ex vat

Portable Appliance Tester - Overview

The innovative small dimensions make this PAT tester truly portable. With its advanced measuring systems it will allow you to carry out fully automated measurements for electrical equipment. Options can be freely configured to suit the user's needs. Alternatively, switch it to manual mode to perform individual tests. All meters in this (PAT) range allows you to make basic measurements without external power in emergency situations as one can easily run a simplified set of test in battery mode.
The small size, weight, and specially designed carrying case of the meter and accessories provide comfort and high mobility. Wireless communication to the printer is hassle-free without unnecessary cables. Storage and integration of the results in PC software further extend the functionality of the instrument.

View a simulation here: https://www.sonel.pl/simulators/pat-10/

Portable Appliance Tester - Features

Wifi Enabled

Works with a portable printer

LED test results indication

Quick access to the measurement procedures

Measurement of insulation resistance

PRCD trip time testing

Measurement of equivalent, touch and differential leakage current

IEC lead test

Measurement of mains voltage

Measurement of protective conductor resistance with the currents: 200 mA, 10 A

Automatic range selection

Compact design, ergonomic soft case

Works with the program Sonel Reader and Sonel PAT (option)

[embed]https://youtu.be/Nq6Tr9HG6Kc[/embed]

[embed]https://youtu.be/GxtfTssNo8o[/embed]

[embed]https://youtu.be/aP1IYwetw4c?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183[/embed]

[embed]https://youtu.be/26qo36ZVBKs?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183[/embed]

https://youtu.be/826nqwf-I5U?list=PLICwL6VglKz0euP0AL5y7aEDgVFxkZ183
Add to basket
Insulation Resistance Meter | MIC-5
R6,205.00 ex vat
Insulation Resistance Meter - Overview

The MIC-5 is a handy insulation resistance meter that any self-respecting electrician can sling around his neck like a doctor's stethoscope in order to always have it at hand. The instrument allows for simple and quick insulation evaluation, checking continuity of connections and measuring voltage on the object.

Insulation Resistance Meter - Features
- Insulation resistance measurement:
  - selectable measurement voltage: 250 V or 500 V
  - continuous indication of measured resistance
  - very long operation time with one set of batteries: 14 h for measurement at U_ISO = 250 V, 11 h for U_ISO = 500 V
  - automatic discharge of tested object’s capacitance after measurement of insulation resistance
  - acoustic determination of 5 seconds time intervals that facilitates to take time characteristics during insulation resistance measurement
  - measurement current up to 1.4 mA
  - protection against measurement of live objects
- Low voltage resistance measurement in range of 0...1999 Ω:
  - measurement with current of <10 mA with resolution of 0,1 Ω
  - quick acoustic signalling for circuit resistance below 10 Ω
- AC/DC voltage measurement in range of 0...600 V:
  - automatic detection of voltage type (AC/DC)
- Autoranging
- Suitable for 50 Hz and 60 Hz network
- Backlit LCD display
- AUTO-OFF function
- Built-in flashlight
- Meets the requirements of IEC 61557-1 and IEC 61557-2
https://www.youtube.com/watch?v=xXMt4bBdRDk

Add to basket

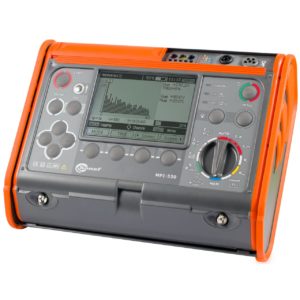

Electrical Installation Multi-function Meter | MPI-530
R46,818.00 ex vat

Electrical Installation Multi-function Meter - Overview

The Electrical Installation Multi-function Meter MPI-530 is an instrument for electric shock protection measurements. It includes the option of various earthing and earthing resistance measuring methods. Additionally, the meter enables its user to analyse power supply parameters, and record and display them on its screen. The instrument automatically measures the insulation resistance in a socket and 3 -, 4 - and 5-wire cables when used with an AutoISO-1000C adapter. Measurement results may be continuously verified, depending on the user’s demand or according to binding regulations. The memory of the instrument may store tens of thousands of measurements allowing users to store them in a structure of a protocol and describe individual measurement points.

Datasheet

Add to basket
1
Single Phase 2 Wire Energy Meter | UEM40-2C
Price range: R1,489.00 through R2,269.00 ex vat
Single Phase 2 Wire Energy Meter - Overview

1 DIN module energy meter for energy measurement in industrial and civilian applications, with the option of built-in communication: RS485 Modbus RTU or M-Bus. Available with MID certification suitable for billing.

Besides the energy, the meter can measure the main electrical parameters and makes them available on the display and on the built-in COM port if available. Optional COM port allows to manage the connected meter by a remote station and data is transmitted on a RS485 or M-Bus line according to the device model. Moreover, a dedicated application for remote management is provided:
• Modbus Master software > for energy meter management by PC in RS485 Modbus network
• M-Bus Master software > for energy meter management by PC in M-Bus network

The meter is built according to EN 50470-1 standard. The active energy is compliant to IEC/EN 62053-21 class 1, but for MID certified device it fulfils class B requirements according to EN 50470-3. The accuracy of the reactive energy is compliant to IEC/EN 62053-23 class 2.

Backlit LCD display with clear graphic symbols for easy reading. Metrological LED on front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and long-lasting reliability.

Single Phase 2 Wire Energy Meter - Features
- Direct connection up to 40 A
- Fully bi-directional 4-quadrant measurements for all energies and powers
- UEC40-2C for a simple energy meter without built-in communication
- UEM40-2C R for RS485 Modbus RTU communication
- UEM40-2C M for M-Bus communication
- High reliability
- 1 DIN module compact size
- Quick installation
- S0 output for energy pulse emission
- LCD display with 7 main digits
- Available with MID certification
Datasheet

Select options
1
Three Phase Energy Meter | UEM6C
Price range: R3,931.00 through R8,922.00 ex vat
Three Phase Energy Meter - Overview

Energy measurement for industrial and domestic applications, with built-in communication, according to the model. Either: RS485 Modbus RTU/ASCII, M-Bus or Ethernet Modbus TCP. Available with MID certification suitable for billing. Besides measuring energy, the meter can measure many electrical parameters and makes them available on the built-in communication ports. The LCD display shows the energy and instantaneous power. The COM port allows managing the connected meter remotely. Despite transmitting data over RS485, M-Bus or Ethernet, the device has a dedicated application for remote management as provided:
• Modbus Master software - for energy meter management by PC in RS485 Modbus or Ethernet network
• M-Bus Master software - for energy meter management by PC in M-Bus network
• Web server - built-in interface for energy meter management by PC in Ethernet network

It enables data recording with manual or automatic data transfer where data is sent to a remote server at the set time. This three-phase Energy meter is built according to EN 50470-1 standard. Active energy is compliant with IEC 62053-22 class 0,5 S, but for MID certified devices it fulfils class C requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 6205323 class2. The wide backlit LCD display with clear graphics and is easy to read. Metrological LED on the front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and reliability.

Three Phase Energy Meter - Features
- Available built-in communication: RS485 Modbus RTU/ASCII or M-Bus or Ethernet (Modbus TCP)
- For 1 or 5A CT
- Programmable CT ratio
- 4 DIN modules
- Fully bi-directional 4-quadrant measurements for all energies and powers
- For 4 wire networks with a balanced or unbalanced load.
  M-BUS model can be used also for 3 / 4 wire networks
- 8 MB for data recording and automatic/manual data transferring (only ETHERNET model)
- S0 output for energy pulse emission
- Class C according to EN 50470-3 (MID)
- Available with MID certification
LEGEND
MID: MID certified meter, with reset function only on partial counters.
RESET: Meter without MID certification, with RESET function on ALL counters

DATASHEET

Select options
Three-phase Network Analyzer | UPA20
R4,426.00 ex vat
Three Phase Network Analyzer -Overview

UPA20 is a three-phase network monitoring device that provides the measurements needed to complete energy efficiency projects and to assure the monitoring of an electrical distribution network. The instrument is easy to use with its large backlit multiple-display screen with 4 hotkeys. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio and provided with a correction function for CT wiring errors.

The Three-phase network analyser can be equipped with additional modules that give flexibility. Modules for RS485 communication and additional digital inputs/outputs can be used to increase its range of functionality. The instrument is compliant with IEC 61557-12. It guarantees performance levels from the PMDs under the environmental conditions typical of industrial and tertiary applications.

Three-phase Network Analyzer - Features
- Wiring error detection
- DIN 96x96 compact version
- Main electrical parameters measured and displayed for a cost-effective consumption analysis
- For current transformers (not included)
- Available optional plug-in modules for communication, inputs/outputs
- Active energy class 0,5 S according to IEC 62053-22
- Compliant with IEC 61557-12, the reference standard for PMDs (Performance Metering & monitoring Devices)
- UL listed product - UL no. E231725
Add to basket
Bipolar Voltage Indicator P-4
R2,783.00 ex vat

Bipolar Voltage Indicator P-4 - Overview

The SONEL P-4 is an extremely durable, reliable and safe to use bipolar voltage indicator with additional circuit continuity and phase sequence checking functions. It was designed to work in the most difficult conditions, both industrial and commercial. Advanced technology, high-level safety and simplicity of use are key features of the P series devices.

Bipolar Voltage Indicator P-4 - Features:
- automatic measurement of alternating and direct voltage up to 1000 V
- optical indicator using a diode line
- sound indicator when hazardous voltages are exceeded 50 VAC and 120 VDC
- testing of RCD operation using an additional load
- continuity indication automatically after connecting to the facility
- bipolar phase rotation direction test
- unipolar indication of voltages above 100 V
- reinforced two-component housing preventing mechanical damage and falls
- IP65 level guarantees dust and damp protection
- safety thanks to CAT IV 600 V and CAT III 1000 V measurement categories
- built-in flashlight
Add to basket
Loop Impedance Meter | MZC-306
R56,746.00 ex vat

Loop Impedance Meter - Overview

Performing loop impedance tests without tripping RCD saves time and money by not having to take the RCD out of the circuit when testing and is a safer procedure. It is important to know that if a fault occurs in an electrical installation, sufficient current will flow to operate the fuse or circuit breaker protecting the faulty circuit within a predetermined time. This Loop impedance meter has a Cat IV rating up to max 750V and makes light work of short circuit loop measurements.

Loop Impedance Meter - Features
- Loop impedance measurement with resolution 0,01 Ω
- Loop impedance measurement without tripping the circuit breaker > 30 mA with resolution 0,01 Ω (100...440 V)
- Measurements possible in installations 110/190 V, 115/200 V, 127/220 V, 220/380 V, 230/400 V, 240/415 V, 290/500 V and 400/690 V (range 100...750 V)
- Short circuit current indication
- Voltage measurement up to 750 V and up to 250 V with resolution 0,1 V
- Measurements using Uni-Schuko adapter or test wires 1,2; 5; 10 and 20 m
- Memory of 990 records
- USB connection with PC
- Powered by disposable or rechargeable (4xLR14)
Add to basket
4
Economical Cat II 600V Digital Multimeter | CMM-10
R940.00 ex vat

Economical Digital Multimeter - Overview

An economical Cat II 600V digital multimeter with auto & manual range selection. It also includes a HOLD function to keep a measured value. The REL function gives value relative to a previous measured function. The Digital Multimeter CMM-10 has been designed for the purpose of measuring AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature and also for testing diodes and continuity.

Economical Digital Multimeter - Features
- Auto/Manual range selection
- DATA HOLD function, for holding measured values
- REL function - measurements relative to a stored value
- Continuity test with acoustic signalling (beeper)
- AUTO-OFF function
- Display 3 7/8 digits (5000 max)
Add to basket
Bipolar Voltage Indicator P-5
R4,024.00 ex vat

P-5 Voltage Indicator - Overview

SONEL P-5 is an extremely durable, reliable and safe to use bipolar voltage indicator with additional circuit continuity and phase sequence checking functions. It was designed to work in the most difficult conditions, both industrial and commercial. Advanced technology, high-level safety and simplicity of use are key features of the P series devices. The P-5 model can perform resistance measurements up to 2 kΩ and has an LCD display that allows you to accurately display voltage and resistance values.

P-5 Voltage Indicator - Features
- automatic measurement of alternating and direct voltage up to 1000
- optical indications by means of a diode line and additionally an LCD display
- sound indications when hazardous voltages are exceeded 50 VAC and 120 VDC
- testing of RCD operation by means of an additional load
- continuity indication, automatically after connecting to the object
- bipolar phase rotation direction test
- unipolar indication of voltages above 100 V
- resistance measurement up to 1999 Ω
- possibility of stopping the measurement result thanks to the HOLD function
- reinforced two-component housing preventing mechanical damage and falls
- built-in flashlight and backlight display for measurements in insufficient lighting
- degree of protection at IP65 level guarantees dust tightness and protection against flooding
- safety thanks to the CAT IV 600 V and CAT III 1000 V measurement categories
Add to basket
