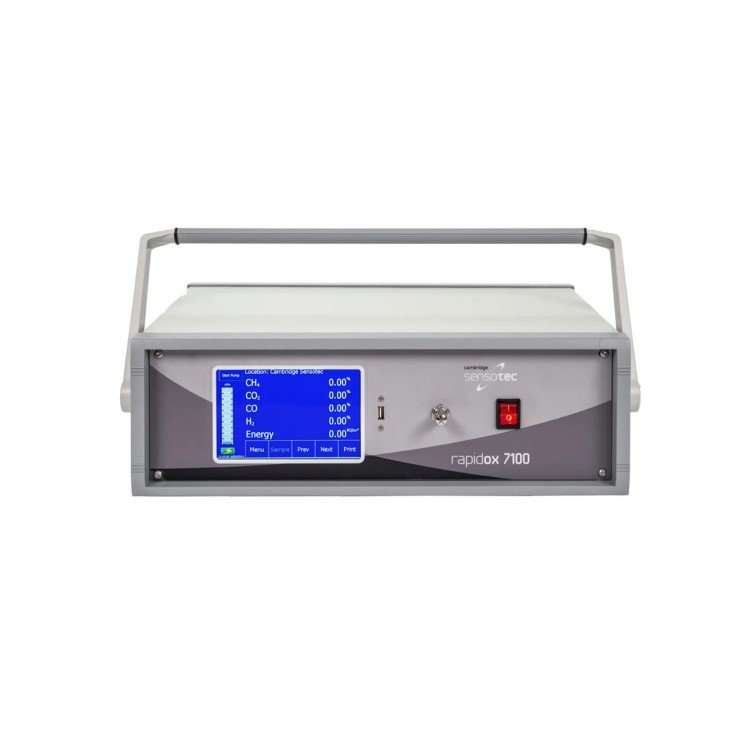

Advanced Multigas Analyser – Overview

The Advanced Multigas Analyser is a sophisticated instrument for analysing, controlling, and monitoring process gases across various industries. It offers flexibility with multiple gas sensing configurations to meet specific application needs. The analyser is conveniently housed in a 482mm enclosure, making it easy to mount in a standard industry test equipment rack. It can measure up to seven gases simultaneously and employs a variety of high-precision gas sensors, each uniquely designed and calibrated to prevent cross-interference with the background process gas. Flashback arrestors are incorporated into the gas measuring circuit as necessary for safety. The analyser can measure gases such as CO2, CO, H2O, O2, C2H4, SO2, CH4, H2, and H2S, among others. Suitable for use in applications involving energy-containing gases like Biogas or Syngas. Results are both logged and displayed on-screen.

Advanced Multigas Analyser – Features

• Modular design for bespoke sensor combinations
• Housed within a 482mm enclosure for mounting into test equipment racks
• 180mm full-colour touchscreen interface with soft menu keys
• Permanent or sampling modes available
• Data is continuously logged
• Excel-compatible data can be downloaded via USB
• Operates on any worldwide mains voltage (90-260VAC)
• Fully programmable alarm settings
• Multi-language
• Password protection
