Manufacturing

Harsh Environment Temperature and Humidity Transmitter | THM50X

Harsh Environment Temperature and Humidity Transmitter - Overview

This transmitter combines rugged durability with measurement precision. It contains a Class A Pt100 with a capacitive humidity sensor. The measuring range for the wall mount is -40°C ... +80°C, and the remote type: -40°C ... +150°C, with an accuracy of ±0.1°C / ±1%RH. Applications include laboratories, HVAC, manufacturing, and industrial process monitoring.

Harsh Environment Temperature and Humidity Transmitter - Features
- Aluminium alloy casing for harsh environments
- Direct key operation for temperature/humidity adjustment, RS-485 settings, and unit switching
- High-accuracy temp & humidity measurement
- Fast response and quick recovery after condensation
- RS-485 communication for configuring measurement units, ranges, output type, and station address
- DATA LOG function records up to 65,535 entries for analysis
- Measures extremely low humidity, down to 0.1% RH
- Multiple physical measurement units switchable: %RH, °C, mbar, g/kg, g/m³, kJ/kg, AH%
Read more
2 Wire Temperature Transmitter | TP04
Price range: R2,093.00 through R2,421.00 ex vat
2 Wire Temperature Transmitter - Overview

This electronic device is used to send a temperature measurement, which is taken by a temperature sensor, over 2 wires to the processing unit. The transmitter is responsible for converting the small electrical signal from the temperature sensor into a more readable signal for the processing unit.

2 Wire Temperature Transmitter- Features
- Monitoring for long-distance temperature signal transmission
- SS Housing, with anti-condensation function and good heat dissipation
- Good measuring repeatability and anti-interference
- Signal transfer from PT sensor to 4 ... 20 mA
- With SD05 integrated signal indicator for local display (Optional)
Select options
1

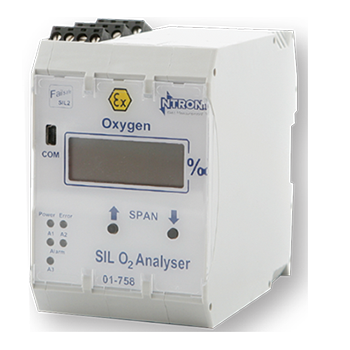

Oxygen Analyser | Ntron Microx

Oxygen Analyser - Overview

This compact oxygen analyser has a remote sensor and three display module mounting options. It utilises zirconia or electrochemical technology to give a reliable oxygen concentration measurement. The zirconia sensor offers fast response time and a long service life with virtually no drift, whilst the electrochemical sensor allows measurement in background gases containing hydrocarbons. The minimum output range of 0 to 1000 ppm is ideal for nitrogen generation or glove box monitoring. It can also be supplied with measuring ranges up to 0 to 96% O2 for oxygen concentrators. The flexibility is further enhanced by different mounting options and multiple sensor types

Oxygen Analyser - Features
- Zirconia/electrochemical sensor technology options
- Measurement range: 0 to 1000ppm up to 0 to 100% O2
- Gas connections via KF40 or Flow-through housing (with/without orifice) M16 Threaded
- RS232 Comms
- LCD + 4 button HMI
- Din rail / Panel / Wall mounting options
- 3 configurable alarm relays
Read more
Advanced Thermal Imager | KT-560.1
R210,777.00 ex vat
Advanced Thermal Imager - Overview

This Advanced Thermal Imager is highly accurate and is robustly designed and constructed. It is ideally suited for troubleshooting electrical installations, wiring, panels, motors, breakers, transformers, switchgear, and electrical equipment; monitoring the thermal performance of industrial manufacturing processes; identifying overheating of mechanical and electro-mechanical components; inspecting buildings for insulation leaks, energy audits, HVAC/R equipment, water damage, and pests; and locating hidden heat sources (of people, animals, objects) in dark or low-light conditions. The touchscreen and lens swivel independently to view objects of interest that are difficult to access from any angle. It has a large number of functions, intuitive handling and excellent ergonomics making it ideal for every advanced thermographer.

Advanced Thermal Imager - Features
- Image files saved in JPG format
- Recording of IR videos
- Built-in reports module
- MIF image combining mode
- Extensive image analysis tools
- Built-in camera for capturing images within the visible light spectrum
- Built-in: GPS, digital compass, LED flashlight, laser.pointer, laser rangefinder
- Interfaces: USB type C, Wi-Fi, Gigabit Ethernet, micro HDMI, SD memory card slot, Bluetooth
- Digital zoom
- Interchangeable lenses do not require calibration by the manufacturer
Add to basket
Digital Differential Pressure Transmitter | P064
Price range: R7,973.00 through R9,364.00 ex vat
Digital Differential Pressure Transmitter - Overview

The P064 digital differential pressure / pressure transmitter is a high-performance pressure transmitter incorporating advanced monocrystalline silicon pressure sensor technology. This product uses a diaphragm that has double overpressure protection and also has an internal circuit with anti-surge protection. It can accurately measure differential pressure, flow, vacuum, liquid level, and density.

Digital Differential Pressure Transmitter - Features
- Advanced monocrystalline silicon differential pressure sensor
- Wide range covering：0.1 ... 25 bar
- Measures liquid, gas, steam, liquid level
- 2-wire, 4 ... 20 mA+HART® protocol digital communication
- LCD, backlit display, remote transmission and local zero, span adjustment
- High accuracy, good stability
- Stainless steel housing
- IP rating：IP65
- Strong resistance to frequency conversion interference
- High static pressure, high overpressure protection
- Diaphragm with patented double overpressure protection design
- Lightning protection circuit design
Select options
Digital Universal Input Signal Converter | DPT02
Price range: R2,554.00 through R4,007.00 ex vat
Digital Universal Input Signal Converter - Overview

The Digital Signal Converter converts a digital signal into an analogue signal. Suitable for use in factories, manufacturing and production. Easy to use and user-friendly. Comes in a fire-proof case and moisture-proof cover.

Digital Universal Input Signal Converter - Features
- Local display
- Easy keypad programming
- 20-Point linear calibration
- User-friendly
- High light red LED display panel, Character height: 7.6 mm
- DIN rail installation
- High safety & stability
- Fire-proof case, moisture-proof cover
- Display readout : 3 Digits (-199 ... +999)
- Input: Current / Voltage
- Output: Analog / Relay / RS-485
- Accuracy: 0.2%F.S.±1 digital
- IP rating: IP20
- Power supply: AC 85 ... 253 V; Auxiliary supply output (DC 16 ... 25 V / 23 mA), used for 2-wire & 3-wire transmitter
Select options
Isolated Converter Splitter | SP03
Price range: R1,840.00 through R2,269.00 ex vat
Isolated Converter Splitter - Overview

The Isolated Signal Converter converts a digital signal into an analogue signal. Suitable for use in factories, manufacturing and production. Compact, easy to use and user-friendly.

Isolated Converter Splitter - Features
- 2 sets of isolated analogue output (Option：4 ... 20 mA / 0 ... 10 V)
- Zero adjustments to output signal
- Reduces the electrical noise of the signal
- Aluminum rail design
- Quick installation
- Compact size
Select options
Stainless Steel Humidity Probe | HC2A-IE02-XX

Stainless Steel Humidity Probe - Overview

Stainless Steel Humidity Probe for pressurised conduits and vessels. This industrial screw-in probe is especially suitable for high temperatures up to 200 °C and demanding industrial environments. It measures humidity and temperature and is compatible with the HF5, and HF8 series measurement transmitters, HP32 and HP23 handheld devices and the HL-NT dataloggers. Applications include industrial manufacturing, drying processes and food and pharmaceutical manufacturing.

Stainless Steel Humidity Probe - Features
- Pressure resistant up to 100 bars
- Wide temperature measurement range -100…200 °C
- Outstanding accuracy
- Repeatability and long-term stability
- Advanced probe housing and construction
- Hot-swappable
- No calibration adjustment required due to the digital interface with Rotronic devices
Datasheet

Read more
Universal Isolating Signal Converter or Splitter | DST01

Universal Isolating Signal Converter or Splitter - Overview

The Universal Signal Converter converts a digital signal into an analogue signal. Suitable for use in factories, manufacturing and production. This model incorporates two easy-to-read LCD displays which indicate process value (PV) and user-selected parameters. Powered by a DC 12 ... 38 V or AC 95 ... 250 V supply. It is fully programmable for linear voltage, linear current, Pt100 and thermocouple types such as J, K, T, E, B, R, S, N, L, U, P, C, and D input. Its fast sampling rate allows the signal conditioner to retransmit the signal faster. Maximum of 3 retransmissions with one input.

Universal Isolating Signal Converter or Splitter - Features
- Signal isolation: Power supply; Analogue input
- 3 groups of analog output
- 1 set RS-485 output
- Multiple input signals
- LED display
- Easy to operate
- DIN rail installation
- High safety & stability
Read more
High Temperature Industrial Humidity Probe | HC2A-ICXXX-A

High Temp Industrial Humidity Probe - Overview

This industrial probe is especially suitable for high temperatures up to 200 °C and demanding industrial environments. It measures humidity and temperature and is compatible with the HF5, HF8 series measurement transmitters, HP32 and HP23 handheld devices and the HL-NT dataloggers.

High Temp Industrial Humidity Probe - Features
- Measures relative humidity and temperature
- Wide temperature measurement range -100…200 °C
- Outstanding accuracy
- Repeatability and long-term stability
- Advanced probe housing and construction
- Hot-swappable, no calibration adjustment required due to the digital interface with Rotronic devices
- User scalable analogue output signals (2x 0…1V)
- Digital interface via UART
- Rapidly interfaced with HygroClip2 compatible devices from Rotronic or for OEM applications
Read more
Cropico DO4A Milli-Ohmmeters
R40,647.00 ex vat
Cropico DO4A Milli-Ohmmeters - Overview

This portable digital ohmmeter is a practical instrument for low resistance measurement, ideal for use in the workshop, field or test facilities. It is of rugged construction and contained in an aluminium case with tilt handle. The DO4A has many advanced features, including protection up to 415 volts rms, digital calibration and long scale length, 4,000 count. The rechargeable sealed lead acid battery means real portability with more than 14 hours of continuous operation, without the problems normally associated with other battery types. Full measurement capability is maintained whilst charging.

Cropico DO4A Milli-Ohmmeters - Features
- True 4 wire measurement eliminates lead resistance errors
- 6 push button ranges 40mΩ - 4kΩ with long scale length
- 10μΩ resolution on 40mΩ range
- Zero control thermal E.M.F. compensation
- Digital calibration
- Mains/rechargeable battery operation
- Open circuit lead warning
- Rugged industrial maintenance free design
- Universal mains supply 100/200/220/240V +10% - 13%
Add to basket
DO7 Plus Micro Ohmmeter

Micro Ohmmeter - DO7 plus - Overview

The DO7Plus is a 10A micro ohmmeter, suitable for applications within aerospace, utilities, cable or machine manufacturers or where a cooling curve is required to plot peak resistance. Sealed in an IP67 case, it is ruggedly constructed to ensure durability. This micro ohmmeter has a display length of 60,000 counts and auto averaging of forward and reverse measurement removes thermal emf differences. The DO7Plus micro ohmmeter has built in rechargeable batteries which will provide up to 1 hour of continuous use at 10A, and up to 20 hours at all other ranges. The data log memory using FRAM technology offers unlimited read/write cycles and over 10 years of data retention, without relying on internal batteries.

DO7 Plus Micro Ohmmeter - Features
- Backlit LCD graphic panel with programmable timer for battery conservation
- Qwerty Keyboard
- Temperature compensation via PT100
- Coefficients for Copper and Aluminum
- Display length of 60,000 counts
- Auto Averaging with a forward reverse measurement (removes thermal emf diff)
- Log Memory can be plotted to calculate peak resistance value at t=0
- Memory 1000 time stamped readings
- Software included to view data via download with USB, RS232
- Ruggedly constructed case IP 67 when lid is closed a d IP53 when lid is open.
- On-screen, real-time graphical plotting cooling curve facilities with peak resistance value calculator
- Reading rate of 2 readings per second
- Measuring ranges from 6mΩ - 6kΩ
- Resolution 100nΩ on 6mΩ range
- Single pulse measurement for fast resistance tests
- Continuous measurement current for inductive tests
- Full test lead continuity testing and diagnostic display
- Multilingual - display available in English, French, German, Spanish or Italian
https://www.youtube.com/watch?v=OqDCdP8Jodo

Read more
