Vehicle Emissions Gas Analyser

Vehicle Emissions Gas Analyser – Overview

This portable multi-parameter electronic combustion analyser can analyse up to 5 gases: Oxygen, Nitric Oxide, Hydrocarbons, Carbon Monoxide, and Carbon Dioxide. This specialist manufacturer of portable combustion emissions analysers is considered an expert in this field. The 700 AV is used for a variety of applications including exhaust emissions from cars, boats, locomotives, trucks, buses and motorcycles.

Vehicle Emissions Gas Analyser – Features

Built-in Printer: 2” Graphic Thermal Printer
4 & 8 Line, 128 x 64 pixel Dual Display with backlight
Non-Dispersive Infrared 3-Gas Sensor Optional (measures CO, CO2 and Hydrocarbons)
Easy to Use Key Pad
Flexible Sampling Probe
The Model 700 unit has RS 232, USB and Blue Tooth communications capabilities
Highly Accurate NDIR CO, CO2 And HC Sensors
On-Board Printer
Free Data Logging Software (optional)

Description

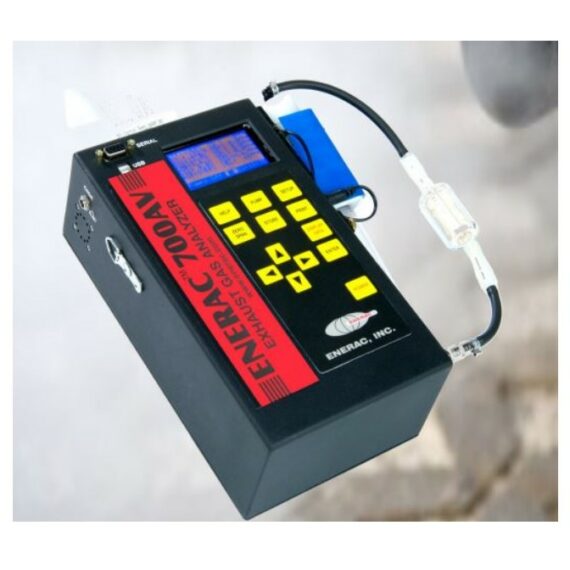

Vehicle Emissions Gas Analyser | Enerac 700AV

MEASURED PARAMETERS

RANGE

RESOLUTION

ACCURACY

SENSOR TYPE

Ambient Temperature

0-150 °F

1 degree F or C

+/- 2 ° F M

RTD

Stack Temperature (net)

0-2,000 °F (1,100 °C)

1 degree F or C

+/- 2 ° F M

Type K Thermocouple

Stack Velocity / Flow

0-150 ft/sec

1 ft/sec

Meets EPA Method 2

Type S Pitot Tube

Oxygen (O₂)

0-25%

0.1 %

+/- 0.2% M

Electrochemical

Nitric Oxide (NOₓ)

0-5,000 ppm

1 ppm

+/- 0.2% M

Electrochemical

Hydrocarbons CₓHy

0-30,000 ppm

1 ppm

+/-3% M (Meets EPA method 25B)

NDIR

Carbon Monoxide (CO)

0-15%

0.01%

+/-3% M

NDIR

Carbon Dioxide (CO₂)

0-20%

0.1%

+/-3% M

NDIR

COMPUTED PARAMETERS

RANGE

RESOLUTION

ACCURACY

AFR (Air : Fuel Ratio)

0.01

Lambda (λ)

0.01

ER (Equivalence Ratio)

0.01

Excess Air

0-1000%

+/-.2%

DIMENSIONS:

5.75″W x 9.75″H x 3.25″D

POWER:

4 D size NiMH rechargeable

WEIGHT:

3kg

DISPLAY:

4&8 Line 128 x 64 pixel Dual
