Portable Combustion Analyser – Overview

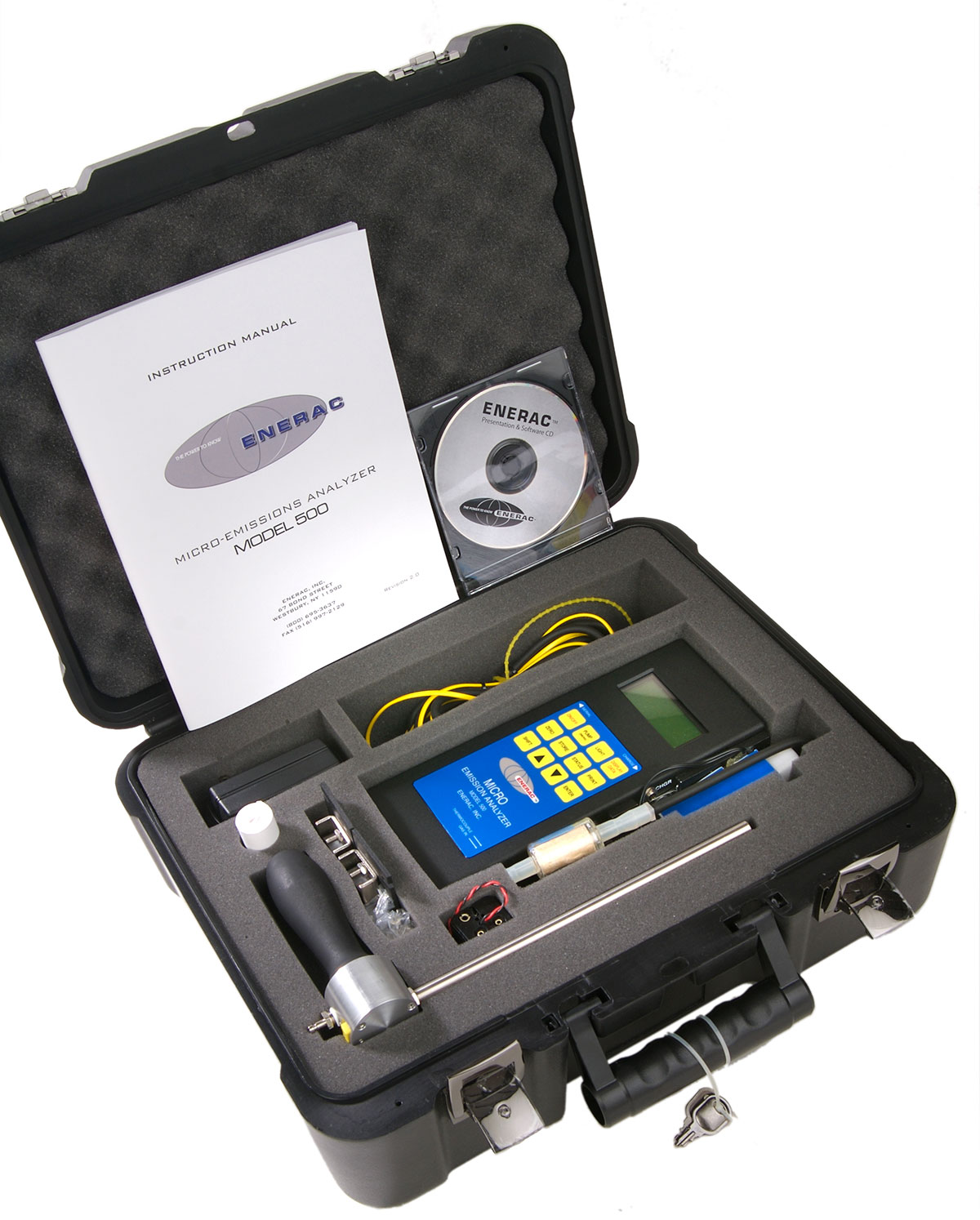

The ENERAC™ Model 500 is a low-cost, easy-to-use, portable combustion efficiency emissions analyser. It is perfect for testing the efficiency of a combustion source as well as collecting advanced emissions data for internal use and reporting requirements. Suitable for testing various combustion sources such as boilers, burners, engines, turbines, generators, kilns, dryers, heaters and ovens, just to name a few. The ENERAC™ 500 is designed to provide years of trouble-free service. It is flexible enough to be tailored to meet your specific needs, yet simple enough to be completely maintained in the field. Advanced design, rugged construction and an impressive array of options are its hallmark. Constructed as a field workhorse, it can be upgraded at any time (adding options to the same unit) to meet your changing needs. It also provides a comprehensive range of automatic emissions calculations (grams/brake horsepower-hour; pounds/ million Btu), advanced Enercom windows software, two-way communications and factory support. From low NOx burners (0.1 ppm NOx resolution) to large rich burn engines (5,000ppm NOx/20,000ppm CO,) the ENERAC™500 is designed to help you meet your needs for various monitoring applications at an affordable price.

Portable Combustion Analyser – Features

Rugged lightweight aluminium case
Work-horse of the industry
Won’t warp or crack like plastic models
Small, lightweight and tough
2-Year Warranty
Best service and support in the industry
Buy only what you need and add options later
Always upgradeable
Free software and accessories
Receive a generous trade-in allowance on your old analyzer

Description

Portable Combustion Analyser | Enerac 500

MEASURED PARAMETERS

RANGE

RESOLUTION

ACCURACY

1. AMBIENT TEMPERATUREType RTD

0-150 ̊F

1 ̊F or C

+/- 2 ̊F M

2. STACK TEMPERATURE(Net)Type K Thermocouple

0-2000 ̊F(1100 ̊C)

1 ̊F or C

+/- 2 ̊F M

3. OXYGEN (O)
Electrochemical Cell

0-25%

0.10%

+/- 0.2% M

4. CARBON MONOXIDE (CO)
Electrochemical Cell

0-2000 PPM or
0-20000PPM or
0-40000PPM

1 PPM

+/- 0.2% M**

5. NITRIC OXIDE (NO)
Electrochemical Cell

0-300 PPM or
0-2000 PPM or
0-4000 PPM

0.1 PPM
1 PPM
1 PPM

+/- 0.2% M**

6. NITROGEN DIOXIDE (NO2)
Electrochemical Cell

0-200 PPM or
0-500 PPM or
0-1000 PPM

0.1 PPM
1 PPM
1 PPM

+/- 0.2% M**

7. Sulfur Dioxide (SO2)

0-2000 PPM
0-4000 PPM

1 PPM

+/- 0.2% M**

8. COMBUSTIBLES
Catalytic Sensor

0-5%

0.1%”

+/- 0.2%(CH4)M

9. STACK DRAFT

+10″to 40″ WC

0.1 ” WC

+/- 0.2% M

10. SMOKE TEST

ASTMD method D2156

COMPUTED PARAMETERS

RANGE

RESOLUTION

ACCURACY

1. COMBUSTION EFFICIENCY

0-100%

0.10%

+/- 1%

2. CARBON DIOXIDE
(CO 2)

0-40%

0.10%

+/- 2%

3. EXCESS AIR

0-1000%

+/- .2%

4. OXIDES OF NITROGEN
(NOX)

0-800 PPM or
0-3000 PPM or
0-5000 PPM or other

0.1 PPM
1 PPM
1 PPM

+/- 4%

5. Pounds / Million Btu
(CO,NO,NO2,SO2)

0-99.99 #/mBtu

0.01 #/B

+/- 2%

6. GRAMS / BRAKE-HP-HR

0-99.99/bhp-hr

0.01g/bhp-hr

+/- 2%

Portable Combustion Analyser | Enerac 500

Additional information

Options:	O2 Sensor (Or Just One Sensor of Choice; CO, NO, NO2, SO2), O2 (Or just one sensor of choice), Temperature (Stack/Exhaust), O2, CO (Carbon Monoxide), Temperature, Draft, O2, CO, Temperature, Draft, Combustibles, Printer, Blue-Tooth (B-T), O2, CO, NO, Temperature, Draft, Printer, O2, CO, NO, Temperature, Draft, Combustibles, Printer, Blue-Tooth, O2, CO, NO, NO2, NOx, Temperature, Draft, Printer, B-T, O2, CO, NO, NO2, NOx, Temperature, Draft, Printer, Thermoelectric Condenser/ Peltier Cooler (Sample Conditioning System), O2, CO, NO, NO2, NOx, Temperature, Draft, Combustibles, Printer, Blue-Tooth, Thermoelectric Condenser (Sample Conditioning System), O2, CO, NO, NO2, NOx, SO2, Temperature, Draft, Combustibles, Printer, Blue-Tooth, Thermoelectric Condenser/Peltier Cooler

Options:

O2 Sensor (Or Just One Sensor of Choice; CO, NO, NO2, SO2), O2 (Or just one sensor of choice), Temperature (Stack/Exhaust), O2, CO (Carbon Monoxide), Temperature, Draft, O2, CO, Temperature, Draft, Combustibles, Printer, Blue-Tooth (B-T), O2, CO, NO, Temperature, Draft, Printer, O2, CO, NO, Temperature, Draft, Combustibles, Printer, Blue-Tooth, O2, CO, NO, NO2, NOx, Temperature, Draft, Printer, B-T, O2, CO, NO, NO2, NOx, Temperature, Draft, Printer, Thermoelectric Condenser/ Peltier Cooler (Sample Conditioning System), O2, CO, NO, NO2, NOx, Temperature, Draft, Combustibles, Printer, Blue-Tooth, Thermoelectric Condenser (Sample Conditioning System), O2, CO, NO, NO2, NOx, SO2, Temperature, Draft, Combustibles, Printer, Blue-Tooth, Thermoelectric Condenser/Peltier Cooler
