Three-phase Power Monitoring Devices – Overview

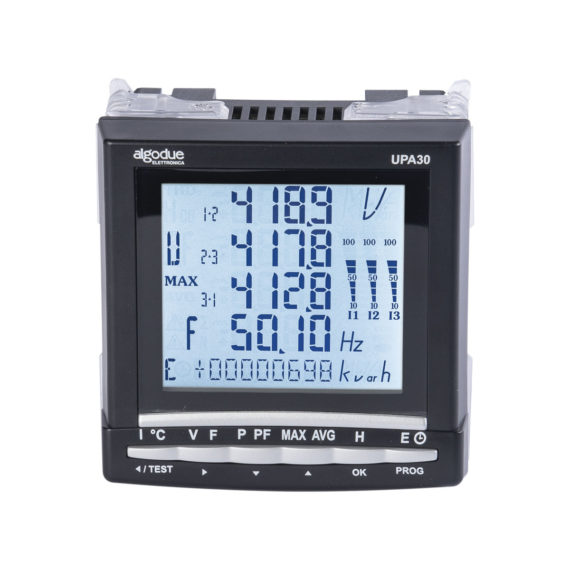

UPA30 is a performance metering & monitoring device that provides all of the measurements needed to complete energy efficiency projects and to assure the monitoring of electrical distribution. Particularly suitable for consumption analysis and control, with an excellent quality/price ratio. The instrument is easy to use due to its large backlit multiple-display screen with 6 hotkeys. With correction function for CT wiring errors. The three-phase Power Monitoring Device can be equipped with additional modules making it a flexible product. Modules for RS485 communication, additional digital or analogue inputs/outputs and temperature detection can be used to increase its range of functionality. The Power Monitoring Device is compliant with IEC 61557-12. It is designed for performance from the PMDs under the environmental conditions typical of industrial and tertiary applications.

Three-phase Power Monitoring Devices – Features

  • DIN 96×96 compact version
  • User-friendly operation
  • Optional plug-in modules for communication, inputs/outputs, temperature
  • Main electrical parameters measured and displayed for a cost-effective consumption analysis
  • For current transformers (not included)
  • Programmable VT
  • Wiring error detection
  • Display of predictive power values
  • Active energy class 0,5 S according to IEC 62053-22
  • Compliant with IEC 61557-12, the reference standard for PMDs (Performance Metering & monitoring Devices)
  • UL listed product – UL no. E23172
Clear
SKU: N/A Category: Tags: , , , , ,
Algodue logo

Description

Three phase Power Monitoring Devices for Industrial Environment | UPA30

Specifications of Power Monitoring Device

Measurement of currents on insulated inputs (TRMS)
Via CT primary 9,999 A
Via CT secondary 1 or 5 A
Measurement range 0 … 11 kA
Input consumption ≤ 0,1 VA
Measurement updating period 1 s
Accuracy 0.2%
Permanent overload 6 A
Intermittent overload 10 In for 1 s

Voltage measurements (TRMS)
Direct measurement between phases 50 to 1039 VAC
Direct measurement between phase and neutral 28 to 600 VAC
VT primary measurement 500,000 VAC
VT secondary measurement 60, 100, 110, 173, 190 VAC
Frequency 50 / 60 Hz
Input consumption ≤ 0,1 VA
Measurement updating period 1 s
Accuracy 0.2%

Current – voltage product
Limitation for CT 1 A 10,000,000
Limitation for CT 5 A 10,000,000

Power measurement
Measurement updating period 1 s
Accuracy 0.5%

Power factor measurement
Measurement updating period 1 s
Accuracy 0.5%

Frequency measurement
Measurement range 45 … 65 Hz
Measurement updating period 1 s
Accuracy 0.1%

Energy accuracy
Active (according to IEC 62053-22) Class 0.5 S
Reactive (according to IEC 62053-23) Class 2

Auxiliary power supply
Alternative voltage 110 …400 VAC
AC tolerance ± 10 %
Direct current 120 … 350 VDC / 12 … 48 VDC
DC tolerance ± 20 % / – 6 … + 20 %
Frequency 50 / 60 Hz
Power consumption ≤ 10 VA

Operating conditions
Operating temperature range -10 to +55°C
Storage temperature -20 to 85°C
Relative humidity 95%

Three phase Power Monitoring Devices for Industrial Environment | UPA30

Additional information

Weight N/A
Dimensions N/A
Options

UPA30 110…400VAC/120…350VDC, UPA30 12…48VDC

Brand

Algodue Electronica

Algodue Electronica is a specialist in Electricity Metering Systems. They have over 30 years of experience in the field of energy management. Quality, experience and flexibility to offer the best solution and to achieve customer satisfaction.
