Energy audit

3-Phase Network Power Analyzer 4 Din Module | UPM209RGW
Price range: R13,760.00 through R20,225.00 ex vat
3-Phase Network Power Analyzer - Overview

The UPM209 is an innovative instrument for measuring and recording of electrical parameters. Particularly suitable for consumption analysis and control, with excellent value for money. The connections are quick and easy, and very useful for energy audits or retrofitting applications on existing switchboards. UPM209 is the ideal instrument to establish the measurement points on the plant.

The instruments can communicate through the RS485 serial port by Modbus RTU/ASCII protocol or through Ethernet port by Modbus TCP protocol. Furthermore, wintoolnet software is available for remote instrument management. A web interface is also available. This very useful function allows one to manage the instrument via a PC connection.

3-Phase Network Power Analyzer - Features
- 4 DIN modules compact version
- Fully bi-directional four quadrants measurements for all energies and powers
- Main electrical parameters measured and displayed for a cost-effective consumption analysis
- 4 available KITs: 30cm Ø 10cm, 45cm Ø 14cm, 70cm Ø 22cm, 90 cm Ø 29cm
- 3 selectable current scales
- Possibility to connect by PT
- Up to 8 MB for data recording
- Possibility to record all energy counters
- Up to 24 parameters selectable among real-time measurements for MIN/AVG/MAX recording
- MODBUS RTU/ASCII communication by RS485 port with Digital Output and remote management with WintoolNET
- MODBUS TCP communication by Ethernet port and remote management with Webserver
Datasheet

Select options
1
Three Phase Energy Meter | UEM6C
Price range: R3,931.00 through R8,922.00 ex vat
Three Phase Energy Meter - Overview

Energy measurement for industrial and domestic applications, with built-in communication, according to the model. Either: RS485 Modbus RTU/ASCII, M-Bus or Ethernet Modbus TCP. Available with MID certification suitable for billing. Besides measuring energy, the meter can measure many electrical parameters and makes them available on the built-in communication ports. The LCD display shows the energy and instantaneous power. The COM port allows managing the connected meter remotely. Despite transmitting data over RS485, M-Bus or Ethernet, the device has a dedicated application for remote management as provided:
• Modbus Master software - for energy meter management by PC in RS485 Modbus or Ethernet network
• M-Bus Master software - for energy meter management by PC in M-Bus network
• Web server - built-in interface for energy meter management by PC in Ethernet network

It enables data recording with manual or automatic data transfer where data is sent to a remote server at the set time. This three-phase Energy meter is built according to EN 50470-1 standard. Active energy is compliant with IEC 62053-22 class 0,5 S, but for MID certified devices it fulfils class C requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 6205323 class2. The wide backlit LCD display with clear graphics and is easy to read. Metrological LED on the front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and reliability.

Three Phase Energy Meter - Features
- Available built-in communication: RS485 Modbus RTU/ASCII or M-Bus or Ethernet (Modbus TCP)
- For 1 or 5A CT
- Programmable CT ratio
- 4 DIN modules
- Fully bi-directional 4-quadrant measurements for all energies and powers
- For 4 wire networks with a balanced or unbalanced load.
  M-BUS model can be used also for 3 / 4 wire networks
- 8 MB for data recording and automatic/manual data transferring (only ETHERNET model)
- S0 output for energy pulse emission
- Class C according to EN 50470-3 (MID)
- Available with MID certification
LEGEND
MID: MID certified meter, with reset function only on partial counters.
RESET: Meter without MID certification, with RESET function on ALL counters

DATASHEET

Select options
Three phase Power Monitoring Devices for Industrial Environment | UPA30
Price range: R7,529.00 through R12,765.00 ex vat
Three-phase Power Monitoring Devices - Overview

UPA30 is a performance metering & monitoring device that provides all of the measurements needed to complete energy efficiency projects and to assure the monitoring of electrical distribution. Particularly suitable for consumption analysis and control, with an excellent quality/price ratio. The instrument is easy to use due to its large backlit multiple-display screen with 6 hotkeys. With correction function for CT wiring errors. The three-phase Power Monitoring Device can be equipped with additional modules making it a flexible product. Modules for RS485 communication, additional digital or analogue inputs/outputs and temperature detection can be used to increase its range of functionality. The Power Monitoring Device is compliant with IEC 61557-12. It is designed for performance from the PMDs under the environmental conditions typical of industrial and tertiary applications.

Three-phase Power Monitoring Devices - Features
- DIN 96x96 compact version
- User-friendly operation
- Optional plug-in modules for communication, inputs/outputs, temperature
- Main electrical parameters measured and displayed for a cost-effective consumption analysis
- For current transformers (not included)
- Programmable VT
- Wiring error detection
- Display of predictive power values
- Active energy class 0,5 S according to IEC 62053-22
- Compliant with IEC 61557-12, the reference standard for PMDs (Performance Metering & monitoring Devices)
- UL listed product - UL no. E23172
Select options
1
Three-phase 80A Energy counter with built-in communication | UEM80
Price range: R5,084.00 through R9,762.00 ex vat
Three-phase 80A Energy counter - Overview

The Three-phase Energy meter is for industrial and domestic applications, with built-in communication. Either: RS485 Modbus RTU/ASCII, M-Bus, or Ethernet Modbus TCP, depending on the module. Available with MID certification suitable for billing. Besides measuring energy, the meter can measure many electrical parameters and make them available on the built-in communication ports. The LCD display shows the energy and instantaneous power. The COM port allows managing the connected meter remotely. Despite transmitting data over RS485, M-Bus or Ethernet the device has a dedicated application for remote management as provided:
- Modbus Master software -> For energy meter management by PC in RS485 Modbus or Ethernet network.
- M-Bus Master software -> For energy meter management by PC in M-Bus network.
- Web server -> Built-in interface for energy meter management by PC in Ethernet network. It enables data recording with manual or automatic data transferring where data is sent to a remote server at the set schedule.
This Three-Phase Energy meter is built according to EN 50470-1 standard. Active energy is compliant with IEC 62053-21 class 1, but for MID certified devices it fulfils class B requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 62053-23 class 2. The wide backlit LCD display has clear graphic symbols for easy reading. Metrological LED on the front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components, and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and reliability.

Three-phase 80A Energy counter - Features
- UEM80-4D R for RS485 Modbus RTU/ASCII communication
- UEM80-D M for M-Bus communication
- UEM80-4D E for Ethernet (Modbus TCP) communication
- Direct connection up to 80 A
- Fully bi-directional 4-quadrant measurements for all energies and powers
- For 4 wire networks with a balanced or unbalanced load.
  M-BUS model can be used also for 3 / 4 wire networks
- Class B according to EN 50470-3 (MID)
- 8 MB for data recording and automatic/manual data transferring (only ETHERNET model)
- S0 output for energy pulse emission
- Available with MID certification
Datasheet

CONTACT US FOR FURTHER OPTIONS

Select options
Single-Phase 80A Energy Meter with built-in communication | UEM80-2D
Price range: R4,939.00 through R8,426.00 ex vat
Single-Phase 80A Energy Meter with built-in communication - Overview

The UEM80-2D Energy meter is for industrial and domestic applications, with built-in communication, depending on the model. Besides measuring energy, the meter can measure many electrical parameters and makes them available on the built-in communication ports. The LCD display shows the energy and instantaneous power. The COM port allows managing the connected meter remotely. Despite transmitting data over RS485, M-Bus or Ethernet the device has a dedicated application for remote management as provided:
- Modbus Master software - for energy meter management by PC in RS485 Modbus or Ethernet network.
- M-Bus Master software - for energy meter management by PC in M-Bus network.
- Web server - built-in interface for energy meter management by PC in Ethernet network. It enables data recording with manual or automatic data transferring where data is sent to a remote server at the set schedule.
This Single-Phase Energy meter is built according to EN 50470-1 standard. Active energy is compliant with IEC 62053-22 class 0,5 S, but for MID certified devices it moreover fulfils class C requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 6205323 class2. A wide backlit LCD display with clear graphics makes reading easy. Metrological LED on the front panel and sealable terminal covers. The analysis of the MTBF values, the accurate selection of components, and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and long-lasting reliability.

Single-Phase 80A Energy Meter with built-in communication- Features
- UEM80-2D R for RS485 Modbus RTU/ASCII communication
- UEM80-2D M for M-Bus communication
- UEM80-2D E for Ethernet (Modbus TCP) communication
- Direct connection up to 80 A
- Fully bi-directional 4-quadrant measurements for all energies and powers
- Class B according to EN 50470-3 (MID)
- 8 MB for data recording and automatic/manual data transferring (only ETHERNET model)
- S0 output for energy pulse emission
- LCD display with 7 main digits
- Available with MID certification
Datasheet

CONTACT US FOR MORE OPTIONS

Select options
Three-Phase 4 wire Energy Counter | UEC1P5
R5,659.00 ex vat
Three-Phase 4 wire Energy Counter - Overview

The three-phase 4-wire energy counter is for industrial and domestic applications, available with MID certification suitable for billing. Combined with different external modules, the meter can communicate with other systems. COM modules are available for the most common field protocols. Besides measuring energy, the meter can measure many electrical parameters and makes them available on the built-in IR ports. The LCD display shows the energy and instantaneous power. This Three-Phase Energy meter is built according to the EN 50470-1 standard. Active energy is compliant with IEC 62053-21 class 1, but for MID certified devices it fulfils class B requirements according to EN 50470-3. The accuracy of reactive energy is compliant with IEC/EN 62053-23 class 2. Wide backlit LCD with clear graphic symbols for easy reading. Metrological LED on the front panel and sealable terminal covers. Available versions with different voltage working range for the connection on a 3 or 4-wire network, suitable for balanced or unbalanced loads. The analysis of the MTBF values, the accurate selection of components, and the reduction of the internal working temperatures together with strict production and control standards guarantee a product with excellent quality and reliability.

Three-Phase 4 wire Energy Counter- Features
- For 1 or 5A CT
- Programmable CT ratio
- Fully bi-directional 4-quadrant measurements for all energies and powers
- For 3 / 4 wire networks with a balanced or unbalanced load
- Class B according to EN 50470-3 (MID)
- Tariff input
- 2 S0 outputs for energy pulse emission
- LCD display with 8 main digits
- IR optical port for communication with external modules
- Available with MID certification
Datasheet

CONTACT US FOR MORE OPTIONS

Select options

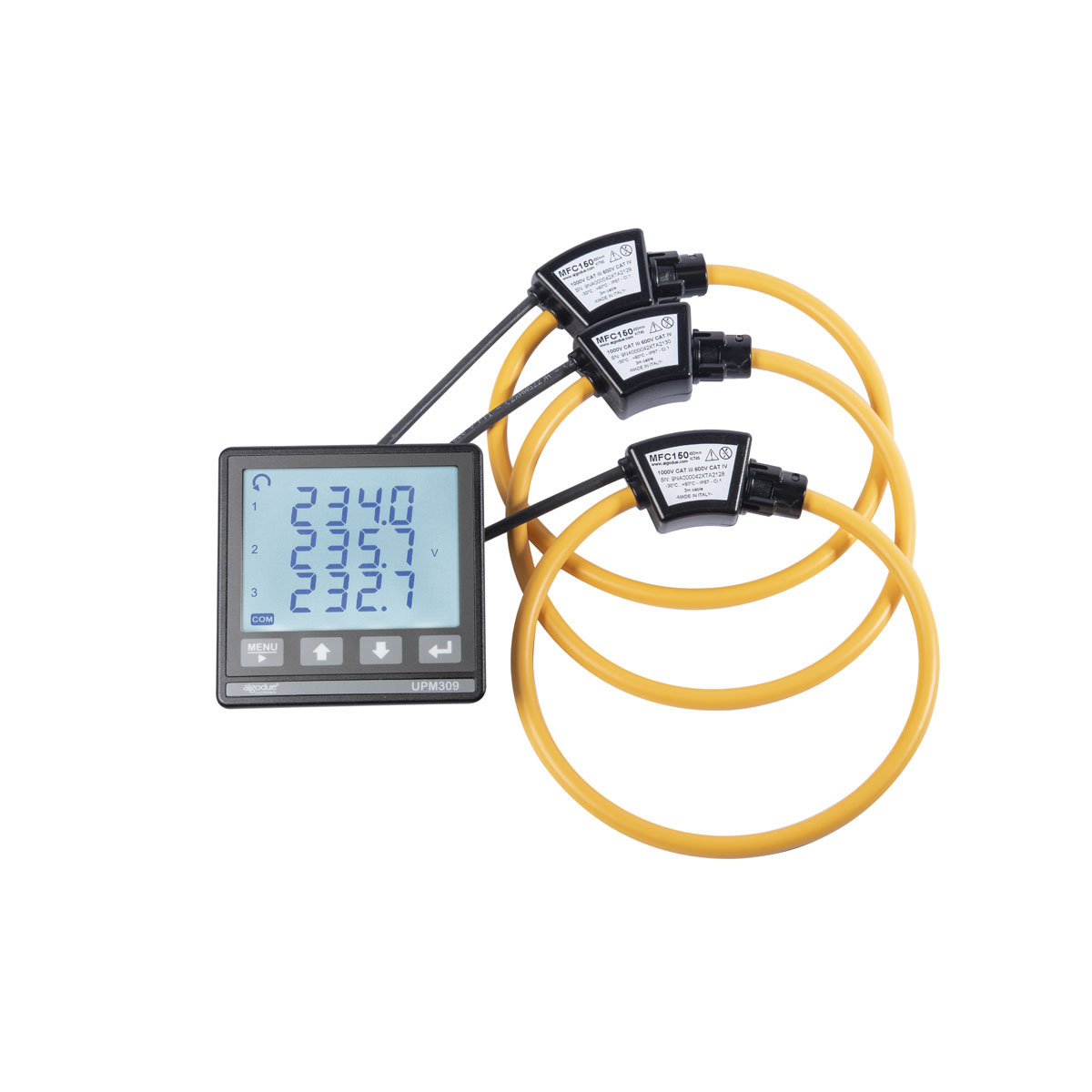

3 Phase Network Analyzer with DIN Display | UPM309RGW

3 Phase Network Analyser with Rogowski coils - Overview

UPM309 is an innovative instrument for the measurement and recording of electrical power parameters. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. Connections are quick and easy, useful for retrofitting applications on existing switchboards or for an energy audit.

UPM309 is the ideal instrument to establish the measurement points on the plant. The instrument communicates with an RS485 serial port by MODBUS RTU/ASCII protocol or through an Ethernet port by MODBUS TCP protocol.

Furthermore, it is available with WintoolNET software for remote management. The web interface is also available with an Ethernet port option: a very useful function that gives the option to manage the instrument by any PC connected to the network.

3 Phase Network Analyser with Rogowski coils - Features
- DIN 96x96 ultra-compact version, only 39 mm depth
- Fully bi-directional four quadrants measurements for all energies and powers
- Up to 24 parameters selectable among real-time measurements for MIN/AVG/MAX recording (ENH version)
- Main electrical parameters measured and displayed for a cost-effective consumption analysis
- 4 available KITs: 30, 45, 70, 90 cm
- 3 selectable current scales
- Possibility to connect by PT
- Up to 8 MB for data recording (ENH version)
- Record all energy counters (ENH version)
- MODBUS RTU/ASCII communication by RS485 port
- MODBUS TCP communication by Ethernet port
- Possibility to manage the instrument in remote mode by WintoolNET software or by the Web server interface
- 2 digital outputs, 1 digital input, 1 analogue output (optional)
Read more
