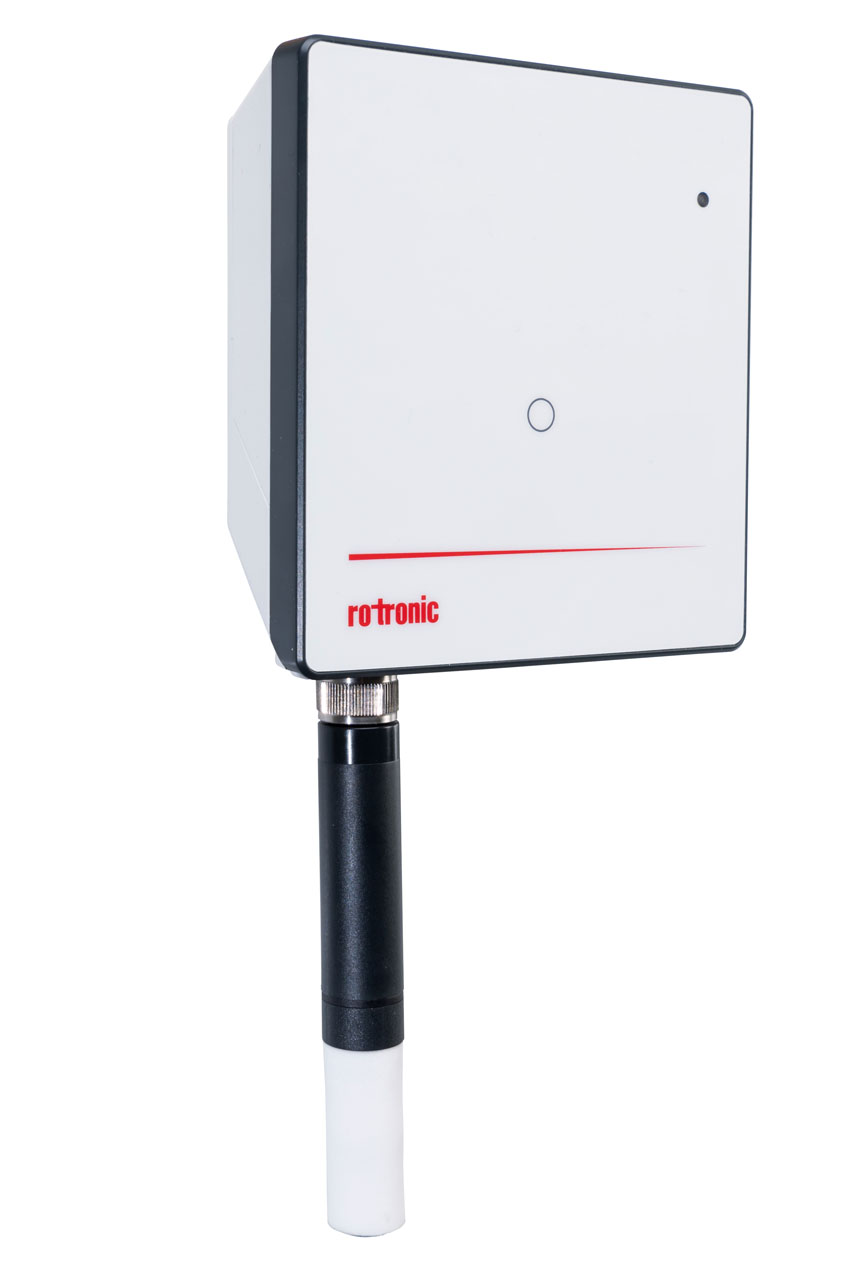

Wireless Monitoring System Data Logger | RMS-LOG-868

Wireless Monitoring System Data Logger | RMS-LOG-868

R11,198.00 ex vat

Monitoring System Data Logger – Overview

This data logger is the component between the humidity/temperature probe and the database in the Rotronic Monitoring System (RMS). It stores 44,000 pairs of measured values from the exchangeable HygroClip probe and transmits them to the RMS database via a wireless link. It is suitable for absolute data protection, even if the power supply and communications should temporarily break down.

Monitoring System Data logger – Features

  • Wireless Interface
  • FDA 21 CFR Part 11 / GAMP5 compliant
  • Measures and Stores 44,000 pairs of values
  • Fail-safe, internal battery
  • 3 years battery lifetime
  • Compatible with RMS Gateway, RMS server software and RMS Cloud

Requires: interchangeable HygroClip probe and a cloud software account with Rotronic or the purchased software on your server.





Description

Monitoring System Data Logger with LAN | RMS-LOG-868

RANGE OF APPLICATION -40…70 °C / 0…100 %RH
POWER SUPPLY 24 VDC / battery: 2 x AA, EVE-ER14505 / PoE: 802.3af-2003, Class 1
CURRENT CONSUMPTION 50 mA
BATTERY LIFE 3 years (at 23 °C and interval of 1 minute)
MEASURED VALUE MEMORY 44,000 pairs of measurement values
MEASUREMENT INTERVAL 10 s to 15 min
EXPLOITATION SOFTWARE RMS-Config / RMS Server Software / RMS Cloud
FIRMWARE UPDATE Via RMS-Config / RMS Server Software / RMS Cloud
COMMUNICATION INTERFACES 868 MHz
REVERSE VOLTAGE PROTECTION Protection diode to V +
HOUSING ABS
IP PROTECTION RATING IP65
FDA/GAMP COMPATIBILITY FDA 21 CFR Part 11 and GAMP compatible
DIMENSIONS 105 x 113 x 38 mm
WEIGHT 200 g

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Monitoring System Data Logger with LAN | RMS-LOG-868

Additional information

Options

LAN Logger, 868 MHz

Brand

Rotronic
