Low Dew Point Probe | HC2-LDP

Low Dew Point Probe HC2-LDP
 1

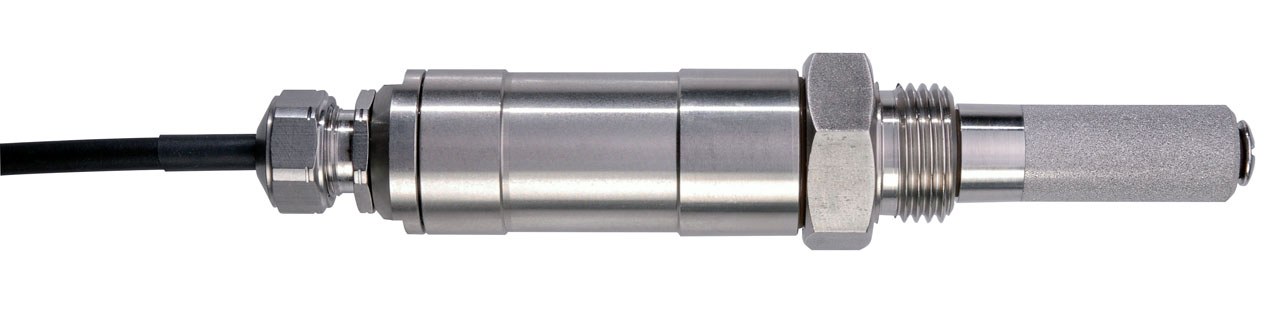

HC2 low dew point probe

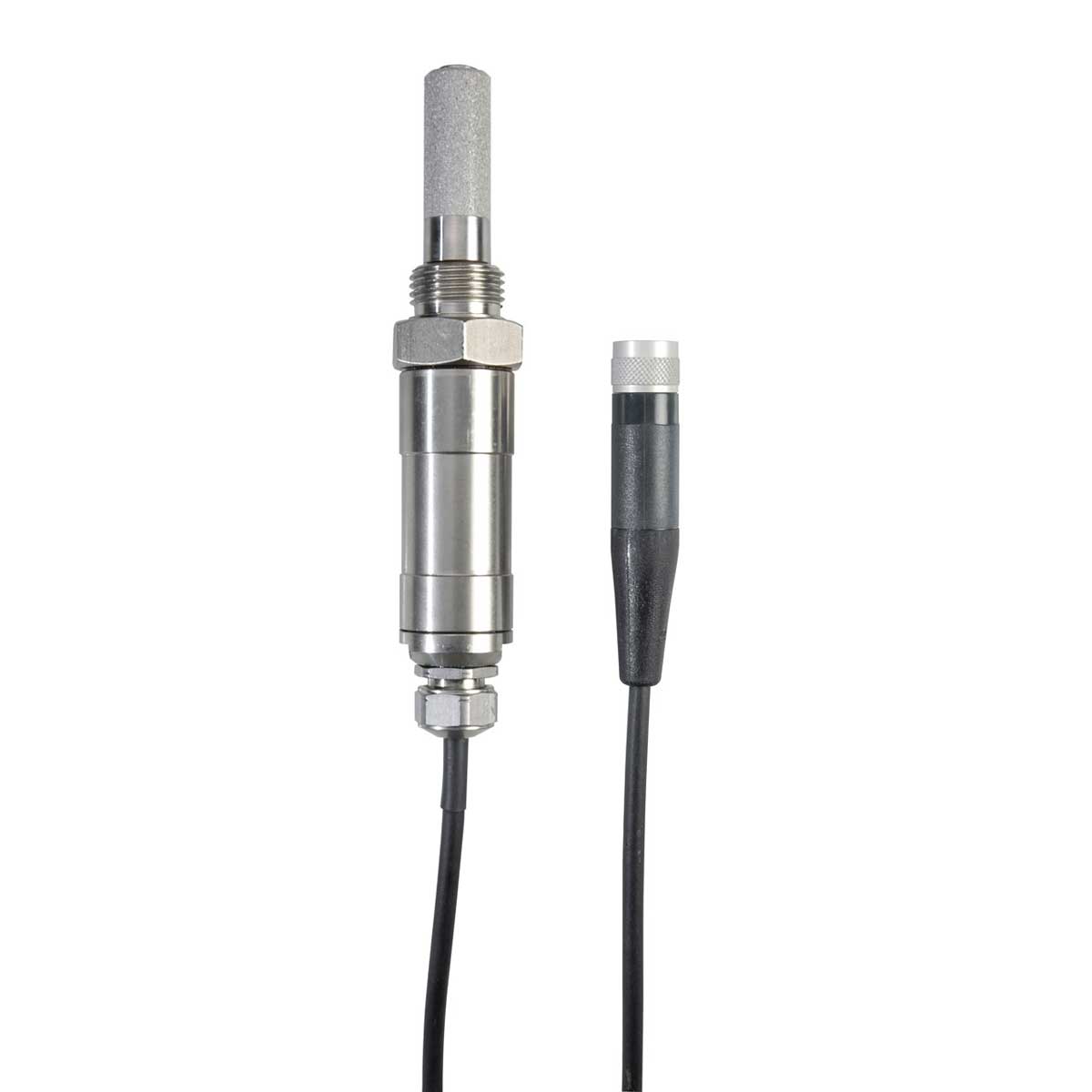

Dew point Sensor and cable

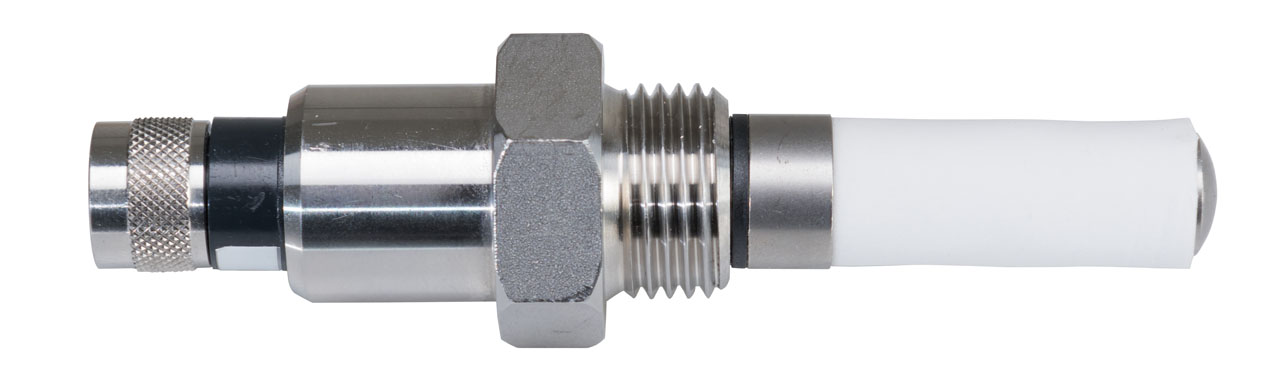

Dew point Sensor with PE Filter

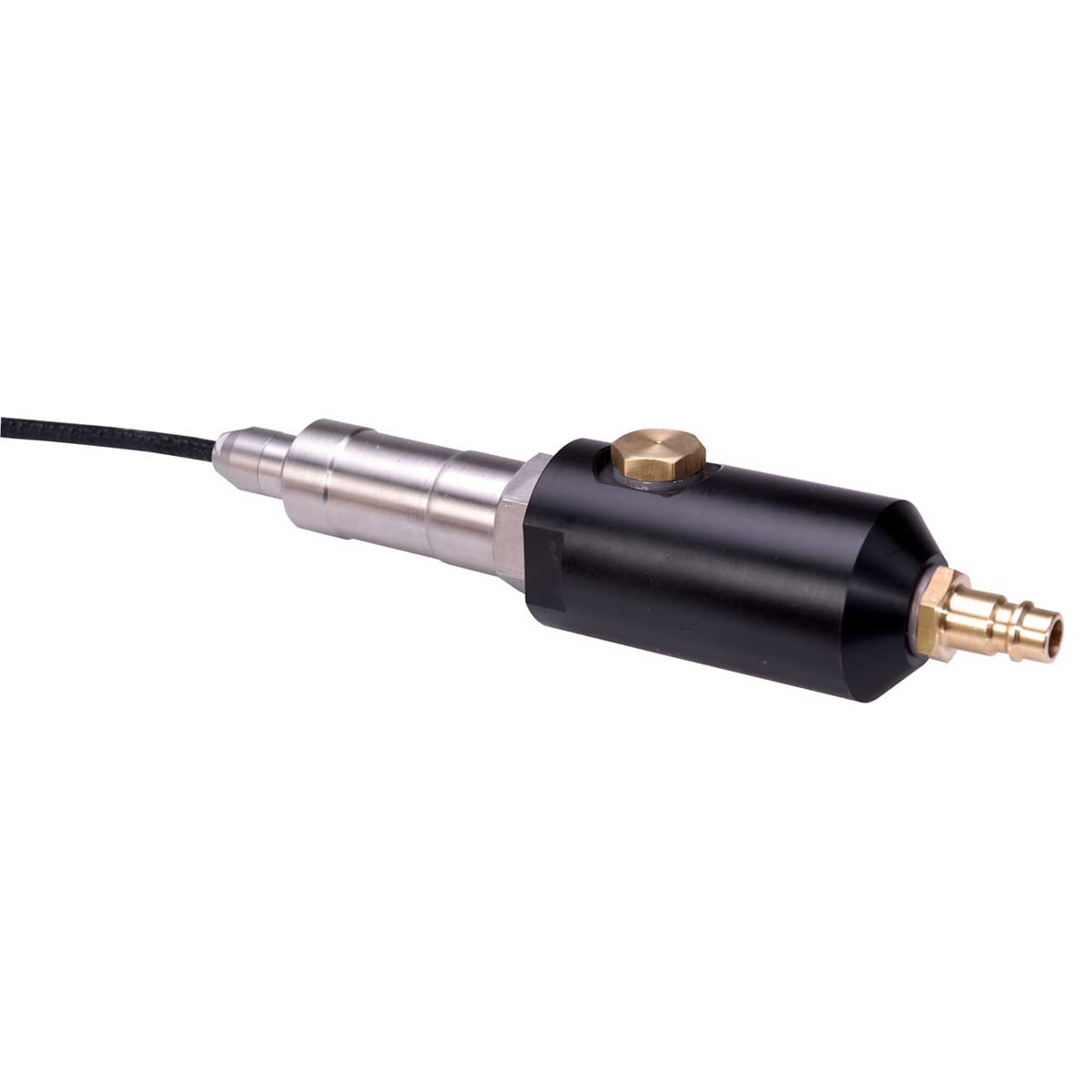

Rotronic HC2-LDP Dew point sensor with chamber LDP-FCPB1

Low Dew Point Probe | HC2-LDP

Price range: R50,877.00 through R59,383.00 ex vat

Low Dew Point Sensor – Overview

Low dew point probe, reliable measurement of trace moisture. The dew point probe comes with Rotronic’s latest AirChip4000 technology. Calculates a measurement from the average of 8,000 single points within a 2-second interval. Together with the HYGROMER® LDP-1 dew point sensor, delivers measurements of the highest quality. The low dew point probes are used in compressed air systems, refrigeration driers and adsorption driers. Suitable measurement chambers with a defined air flow rate and a quick connector for optimum dew point measurement are available in POM and stainless steel. The base unit can be used for customisation.

Low Dew Point Sensor – Features

  • Highly accurate dew point and temperature measurement
  • Withstands pressures up to 100 bar
  • HYGROMER® LDP-1 sensor element
  • Excellent repeat-ability
  • Trace moisture monitoring at low limits
  • With the latest AirChip4000 measurement technology
  • Compatible with HF5 / HF8 / PF4 transmitters and HP22, HP23 & HP32 handhelds

*Chambers and Transmitters or handhelds sold separately

Clear
SKU: N/A Category:

Description

Low Dew Point Probe

DEW POINT ACCURACY @ 23 °C ±2 K Td (-50…20 °C Td)±3.5 K Td (-60…-50 °C Td)
PROBE TYPE Digital dew point & temperature probe
MEASURING RANGE -70…85 °C Td / -40…85 °C
TEMPERATURE ACCURACY @ 23 °C ±0.2 K
DEW POINT SENSOR HYGROMER® LDP-1
LONG-TERM STABILITY DEW POINT SENSOR <1 °C Td/Year
RESPONSE TIME DEW POINT SENSOR ?63: @ -50 °C TD Typically <10 min, with filter
RESPONSE TIME TEMPERATURE SENSOR ?63: @ -50 °C TD Typically <15 min, with filter
PRESSURE RESISTANCE 16 bar100 bar (with LDP-MCS measurement chamber)
POWER CONSUMPTION 3.3…5 VDC / <1.5 mA
TEMPERATURE SENSOR Pt1000, Class B 1/3
FILTER CARTRIDGE Sintered stainless steel, 50 ?m
MEASUREMENT INTERVAL 2 seconds
COMMUNICATION INTERFACES UART
HOUSING Stainless steel 1.4301
IP PROTECTION RATING IP65
FDA/GAMP COMPATIBILITY Yes
CE / EMC CONFORM 2004/108/EC
MAINTENANCE Annual calibration (recommended)
STORAGE AND TRANSPORT CONDITIONS -40?85 °C, non-condensing
DIMENSIONS 145 x 140 mm (probe head)Hexagonal nut: 3 x 140 mm
WEIGHT 260 g

Low Dew Point Probe

Additional information

Options

LDP-Screw-in probe 2m Cable, -70…85 °C Td, 1/2'' G thread, LDP-Screw-in probe 5m Cable, -70…85 °C Td, 1/2'' G thread
