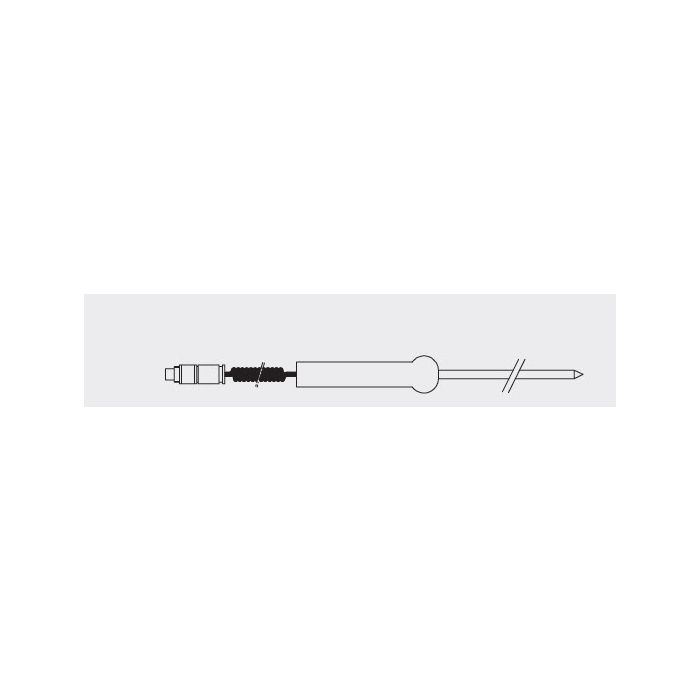

Insertion Temperature Probe – Overview

These are resistance thermometers (Pt100 = positive measurement resistance), meaning that the resistance increases with increasing temperature. This insertion-type temperature probe has a measuring range of -70…500 °C, τ90: 80/6 s.

Insertion Temperature Probe  – Features

• Measuring range of -70…500 °C, τ90: 80 / 6 s

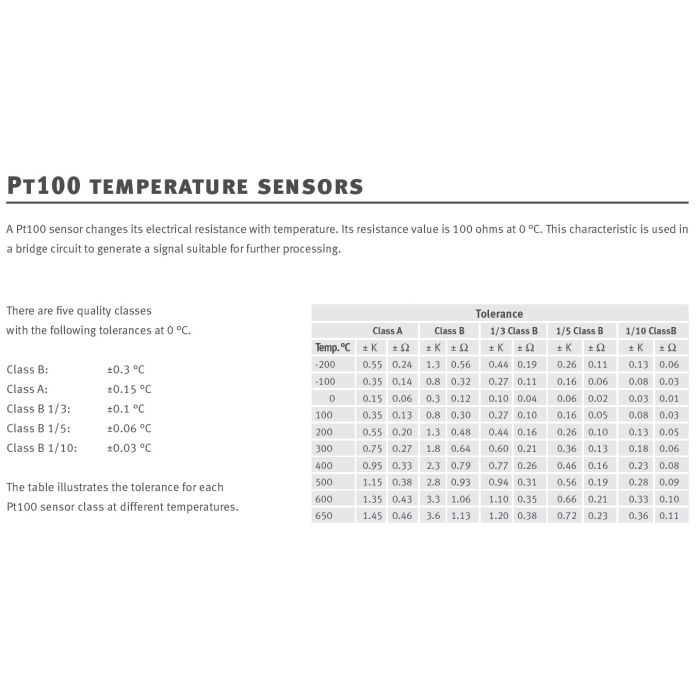

• Class A sensors with a 4-wire connection
• Connection: 4-pin Binder connector plug series 711
• 90: Response time to reach 90 % of actual temperature change (air/water) with an airflow velocity of 2 m/s
• Handle with 1 m cable
• Probe material: DIN 1.4404
• Probe cable material PUR, Max. 80 °C, Min. -40 °C
