Advanced Temperature Transmitter – Overview

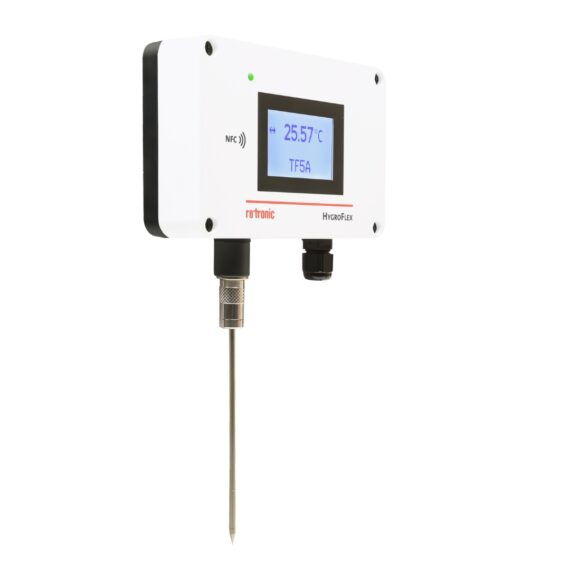

The TF5A temperature transmitters are available in wall-mounted versions, with or without a display. It offers a wide range of adjustable temperature scaling via NFC. ​It is compatible with all Rotronic and third-party PT100 probes featuring a binder 4-pole connector, providing a broad range of temperature options and high accuracy. T

Advanced Temperature Transmitter  – Features

  • Temperature measurement range -200… 600 °C
  • Compatible with all PT100 with binder 4 pole connector​
  • Freely programmable outputs and scaling via NFC-Interface & supports NFC powerless​



SKU: TF5A Category: Tags: , ,

Description

Advanced Temperature Transmitter | TF5A

TF5A-2 2-wire
TF5A-3 / TF5A-D 3/4-wire
Temperature probe PT100 Class A probes, various types
Accuracy @ 23°C ± 0.1°C
Initialisation time Typically, 5 sec.
Measurement interval 1 sec.
Measurement range
-200…600 °C (probe dependent)
Range of applications -10…60 °C with display
-40…80 °C without display
Display Resolution to 2 decimal places
Output signals analog 4…20 mA
Freely scalable 0…1/5/10 V, 0…20, 4…20 mA
Resolution analogue output 15 Bit
Output signal digital –
RS-485 signals on screw terminal
Cable connections 1 x M12, screw terminals
Power supply 10…28 VDC 18…36 VDC
Circuit type 2-wire 3 /4 wire
Current consumption 2x23mA
max.80 mA (when both outputs are connected)
Load per analogue output Max. 500 Ω
Interface UART, NFC and USB
Software HygroSoft
Housing material PC-ABS
Dimensions 122 x 82 x 40.5 mm
Weight 204 g
IP-Protection IP65
Soldering material Lead free (RoHS-Directive 2011/65/ EU)
Standards CE Conformity 2014/30/EU
Conformity GAMP5 and FDA 21 CFR Part 11

¹ FDA conformity is applicable only when the device is operated in combination with the HygroSoft software.

Probes for Temperature Transmitters

Type Accuracy @ 23°C (Class A) Application Range
Cable / Operating range at connector
AC1900 Fixed probe, 100 mm x 3 mm ± 0.20 °C -50…300 °C
-40…105 °C without cable
AC1903 Cable probe, 200 x 6 mm, not waterproof ± 0.20 °C -50…350 °C
-40…105 °C 2 m, thermoplastic cable
AC1904 Cable probe, 50 mm x 6 mm, waterproof ± 0.20 °C -50…105 °C
-40…105 °C 2 m, thermoplastic cable
AC1909 Fixed probe, 100 mm x 4.5mm, air measurement ± 0.20 °C -50…150 °C
-40…105 °C without cable
AC1913-A Kapton foil probe, 20 x 15 x 2 mm ± 0.20 °C -50…200 °C
-40…105 °C 1 m, four PFA wires
AC1916-A-T Cable probe, 60 mm x 6 mm, waterproof, high temperature ± 0.20 °C -100…250 °C
-40…85 °C 2 m PTFE cable

Compatibility: TF5A all versions.
