High Accuracy 0.01dB 35MHz | PSM1735

High Accuracy 0.01dB 35MHz – Overview

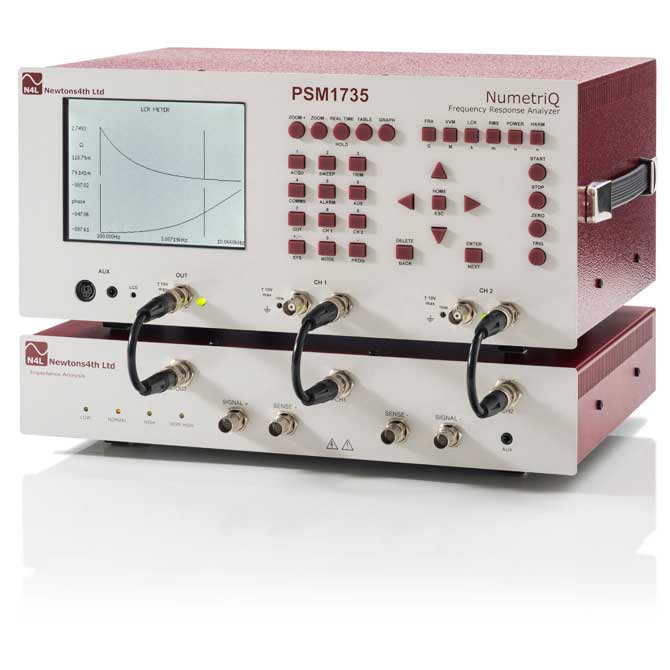

Utilising an innovative design that incorporates both direct digital analysis and heterodyning techniques, the High Accuracy PSM1735 provides a broad range of measurement functions over a wider frequency range than any other instrument available today. Typical applications include switched-mode power supply feedback loop analysis, filter test, and design, LVDT testing, sweep frequency response analysis of wound components, and much more. The PSM1735 NumetriQ utilises the latest DSP and FPGA technology to optimise the use of its analogue hardware providing speed and measurement flexibility without compromising the performance of each measurement function. The N4L PSM1735 features 0.01dB gain accuracy, 0.02° phase accuracy, and a frequency range of up to 35 MHz.

High Accuracy 0.01dB 35MHz – Features

Frequency range 10µHz to 35MHz
Floating differential inputs – 10 Vpk
Gain accuracy at < 1 kHz 0.01 dB
Phase accuracy at < 1 kHz 0.01°
Frequency response analyzer
Impedance analyzer
Vector Volt Meter / Phase Angle Volt Meter
RMS Volt Meter
Loop response analysis
Harmonic analyzer

Datasheet

Description

High Accuracy 0.01dB 35MHz PSM1735 Technical Specifications

High Accuracy 0.01dB 35MHz

MEASUREMENT SPECIFICATIONS
FREQUENCY RESPONSE ANALYSER
Measurement	Magnitude \| Gain (CH1/CH2 or CH2/CH1) \| Gain (dB) Offset Gain (dB) \| Phase (º)
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Gain Accuracy in dB	0.01dB + 0.001dB/kHz < 1MHz 0.1dB + 0.04dB/MHz < 35MHz
Phase Accuracy	0.02⁰ < 10kHz 0.05⁰ + 0.0001⁰ / kHz < 35MHz
Frequency Source	Generator \| CH1 Input
Measurement	Real-Time DFT \| no missing data
Speed	Up to 100 readings per second
Filter	Selectable from 0.2 seconds
Resolution	5 or 6 digits
VECTOR VOLTMETER
Measurement	In-Phase \| Quadrature \| Tan Φ \| Magnitude \| Phase \| In-Phase Ratio \| RMS \| RMS ratio, LVDT Differential LVDT Ratiometric
Frequency Range	10μHz to 35MHz 20mHz to 35MHz with External Source
Basic Accuracy (ac)	0.5% range + 0.05% reading + 0.05mV
LCR METER
Functions	L \| C \| R (AC) \| Q \| Tan Delta \| Impedance phase – Series or Parallel circuit
Frequency Range	10μHz to 35MHz
Current Shunt	External or N4L active head or IAI (Impedance Analysis Interface)
LCR Measurement Functions
Resistance (R)	1mΩ to 500MΩ
Reactance (X)	1mΩ to 500MΩ
Impedance (Z)	1mΩ to 500MΩ
Capacitance Value (Cp & Cs)	1pF to 1mF
Phase Angle	0 to 360 deg with 0.001-degree resolution
Q. Factor	+/- 0.00001 ~ 9999.99
Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)	+/- 0.00001 ~ 9999.99
Admittance (Y) reciprocal of impedance (Siemens)	+/- 2nS to 1KS
Conductance (G) resistive part of admittance (Siemens)	+/- 2nS to 1KS
Susceptance (B) reactive part of admittance (Siemens)	+/- 2nS to 1KS
Voltage Bias	+/- 10V
Ranges-LCR Head	Inductance – 100nH to 10kH Capacitance – 10pF to 1000μF Resistance – 10mΩ to 100MΩ
Ranges-IAI	Inductance – 10nH to 10kH Capacitance – 1pF to 1000μF Resistance – 1mΩ to 500MΩ
Basic Accuracy	0.1% + tolerance of selected current shunt
Sweep Capability	All AC functions
IAI Impedance Analysis Interface
Frequency Range	10μHz to 35MHz
Basic Accuracy	0.1% <1kHz 0.2% + 0.0005% / kHz <35MHz
Internal Shunt Phase Accuracy	Low 5Ω 0.1deg + 0.01deg / kHz Normal 50Ω 0.05deg + 0.005deg / kHz High 5kΩ 0.05deg + 0.005deg / kHz Very High 500kΩ 0.1deg + 0.05deg / kHz
Power Source	90-264V RMS 47-64Hz
TRUE RMS VOLTMETER
Channels	2
Frequency Range	DC to 1MHz 1MHz to 35MHz fundamental only
Measurement	RMS \| AC \|DC \| Peak \| CF \| Surge \| dBm
Basic Accuracy (AC)	As VVM + 0.05mV
Accuracy (DC)	0.01% VA range + 0.1% reading + 0.5mV
POWER METER
Measurements	W \| VA \| PF \| V \| A \| Total Fundamental and Integrated \| Power Harmonics
Frequency Range	20mHz to 1MHz 1MHz to 35MHz fundamental only
Current Shunt	External or use an N4L power adaptor
Current Accuracy	As Voltage + external shunt tolerance
Watts Accuracy	0.15% VA range + 0.15% reading + external shunt tolerance
HARMONIC ANALYSER
Scan	Single or Series
Frequency Range	10μHz to 1MHz
Measurement	Harmonic \| series THD or difference THD
Max Harmonic	50
SYSTEM SPECIFICATIONS
INPUT RANGES
Inputs	2 Balanced Differential
Connectors	Dual Grounded BNC
Coupling	AC or AC+DC
Max Input	100Vpk from earth
Input Ranges	100V \| 30V \| 10V \| 3V \| 1V \| 300mV \| 100mV \| 30mV \| 10mVpk
Scaling	1 x 10^-9 to 1 x 10^9
Ranging	Full auto \| Up only or manual
Input Impedance	1M // 30pF (ex leads)
SIGNAL GENERATOR
Type	Direct Digital Synthesis
Frequency	10μHz to 35MHz
Waveforms	Sine \| Square (1MHz)
Accuracy Open Loop (with no trim)	Frequency ±0.05% ±10% < 10MHz ±20% < 35MHz
Accuracy Closed Loop (with trim)	±1% < 10MHz ±5% < 35MHz
Impedance	50Ω ±2%
Output Voltage(Open Circuit)	0V to ±10Vpk
Output Resolution	50μV to 5mV level dependant
Offset	0V to ±10Vpk
Offset Resolution	±10VmV
Clock Rate	150MHz
Connector	Grounded BNC
DATALOG
Functions	Up to 4 measured functions user selectable
Datalog Window	From 10ms with no gap between each log
Memory	RAM or non – volatile up to 8,000 records
HIGH-SPEED DATA STREAMING
Rate	1500 readings/s max
Window	660μs to 1s Synchronized to waveform
Buffer	8000 results
GENERAL
Display	320 x 240 dot LCD – white LED backlight
Alarm	Any displayed function Hi \| Lo \| Inside Window \|Outside Window
Program Stores	100, prog 1 loaded on power-up
Sweep Stores	30, all parameters in any sweep function
Remote Operation	Full capability \| Control, and data
Size	170H x 350W x 250D mm approx
Temperature	5 to 35°C
Weight	4Kg approx
Power Supply	90-264V RMS 47-63Hz 30VA max

MEASUREMENT SPECIFICATIONS

FREQUENCY RESPONSE ANALYSER

Measurement

Magnitude | Gain (CH1/CH2 or CH2/CH1) | Gain (dB)
Offset Gain (dB) | Phase (º)

Frequency Range

10μHz to 35MHz
20mHz to 35MHz with External Source

Gain Accuracy in dB

0.01dB + 0.001dB/kHz < 1MHz
0.1dB + 0.04dB/MHz < 35MHz

Phase Accuracy

0.02⁰ < 10kHz
0.05⁰ + 0.0001⁰ / kHz < 35MHz

Frequency Source

Generator | CH1 Input

Measurement

Real-Time DFT | no missing data

Speed

Up to 100 readings per second

Filter

Selectable from 0.2 seconds

Resolution

5 or 6 digits

VECTOR VOLTMETER

Measurement

Frequency Range

10μHz to 35MHz
20mHz to 35MHz with External Source

Basic Accuracy (ac)

0.5% range + 0.05% reading + 0.05mV

LCR METER

Functions

L | C | R (AC) | Q | Tan Delta | Impedance
phase – Series or Parallel circuit

Frequency Range

10μHz to 35MHz

Current Shunt

External or N4L active head or
IAI (Impedance Analysis Interface)

LCR Measurement Functions

Resistance (R)

1mΩ to 500MΩ

Reactance (X)

1mΩ to 500MΩ

Impedance (Z)

1mΩ to 500MΩ

Capacitance Value (Cp & Cs)

1pF to 1mF

Phase Angle

0 to 360 deg with 0.001-degree resolution

Q. Factor

+/- 0.00001 ~ 9999.99

Tan Delta (Reciprocal of Q, also known as Dissipation Factor D)

+/- 0.00001 ~ 9999.99

Admittance (Y) reciprocal of impedance (Siemens)

+/- 2nS to 1KS

Conductance (G) resistive part of admittance (Siemens)

+/- 2nS to 1KS

Susceptance (B) reactive part of admittance (Siemens)

+/- 2nS to 1KS

Voltage Bias

+/- 10V

Ranges-LCR Head

Inductance – 100nH to 10kH
Capacitance – 10pF to 1000μF
Resistance – 10mΩ to 100MΩ

Ranges-IAI

Inductance – 10nH to 10kH
Capacitance – 1pF to 1000μF
Resistance – 1mΩ to 500MΩ

Basic Accuracy

0.1% + tolerance of selected current shunt

Sweep Capability

All AC functions

IAI Impedance Analysis Interface

Frequency Range

10μHz to 35MHz

Basic Accuracy

0.1% <1kHz
0.2% + 0.0005% / kHz <35MHz

Internal Shunt Phase Accuracy

Low 5Ω 0.1deg + 0.01deg / kHz
Normal 50Ω 0.05deg + 0.005deg / kHz
High 5kΩ 0.05deg + 0.005deg / kHz
Very High 500kΩ 0.1deg + 0.05deg / kHz

Power Source

90-264V RMS
47-64Hz

TRUE RMS VOLTMETER

Channels

Frequency Range

DC to 1MHz
1MHz to 35MHz fundamental only

Measurement

RMS | AC |DC | Peak | CF | Surge | dBm

Basic Accuracy (AC)

As VVM + 0.05mV

Accuracy (DC)

0.01% VA range + 0.1% reading + 0.5mV

POWER METER

Measurements

W | VA | PF | V | A | Total
Fundamental and Integrated | Power Harmonics

Frequency Range

20mHz to 1MHz
1MHz to 35MHz fundamental only

Current Shunt

External or use an N4L power adaptor

Current Accuracy

As Voltage + external shunt tolerance

Watts Accuracy

0.15% VA range + 0.15%
reading + external shunt tolerance

HARMONIC ANALYSER

Scan

Single or Series

Frequency Range

10μHz to 1MHz

Measurement

Harmonic |
series THD or difference THD

Max Harmonic

SYSTEM SPECIFICATIONS

INPUT RANGES

Inputs

2 Balanced Differential

Connectors

Dual Grounded BNC

Coupling

AC or AC+DC

Max Input

100Vpk from earth

Input Ranges

100V | 30V | 10V | 3V | 1V | 300mV | 100mV | 30mV | 10mVpk

Scaling

1 x 10^-9 to 1 x 10^9

Ranging

Full auto | Up only or manual

Input Impedance

1M // 30pF (ex leads)

SIGNAL GENERATOR

Type

Direct Digital Synthesis

Frequency

10μHz to 35MHz

Waveforms

Sine | Square (1MHz)

Accuracy Open Loop (with no trim)

Frequency ±0.05%
±10% < 10MHz
±20% < 35MHz

Accuracy Closed Loop (with trim)

±1% < 10MHz
±5% < 35MHz

Impedance

50Ω ±2%

Output Voltage(Open Circuit)

0V to ±10Vpk

Output Resolution

50μV to 5mV level dependant

Offset

0V to ±10Vpk

Offset Resolution

±10VmV

Clock Rate

150MHz

Connector

Grounded BNC

DATALOG

Functions

Up to 4 measured functions user selectable

Datalog Window

From 10ms with no gap between each log

Memory

RAM or non – volatile up to 8,000 records

HIGH-SPEED DATA STREAMING

Rate

1500 readings/s max

Window

660μs to 1s Synchronized to waveform

Buffer

8000 results

GENERAL

Display

320 x 240 dot LCD – white LED backlight

Alarm

Any displayed function Hi | Lo | Inside Window |Outside Window

Program Stores

100, prog 1 loaded on power-up

Sweep Stores

30, all parameters in any sweep function

Remote Operation

Full capability | Control, and data

Size

170H x 350W x 250D mm approx

Temperature

5 to 35°C

Weight

4Kg approx

Power Supply

90-264V RMS
47-63Hz
30VA max
