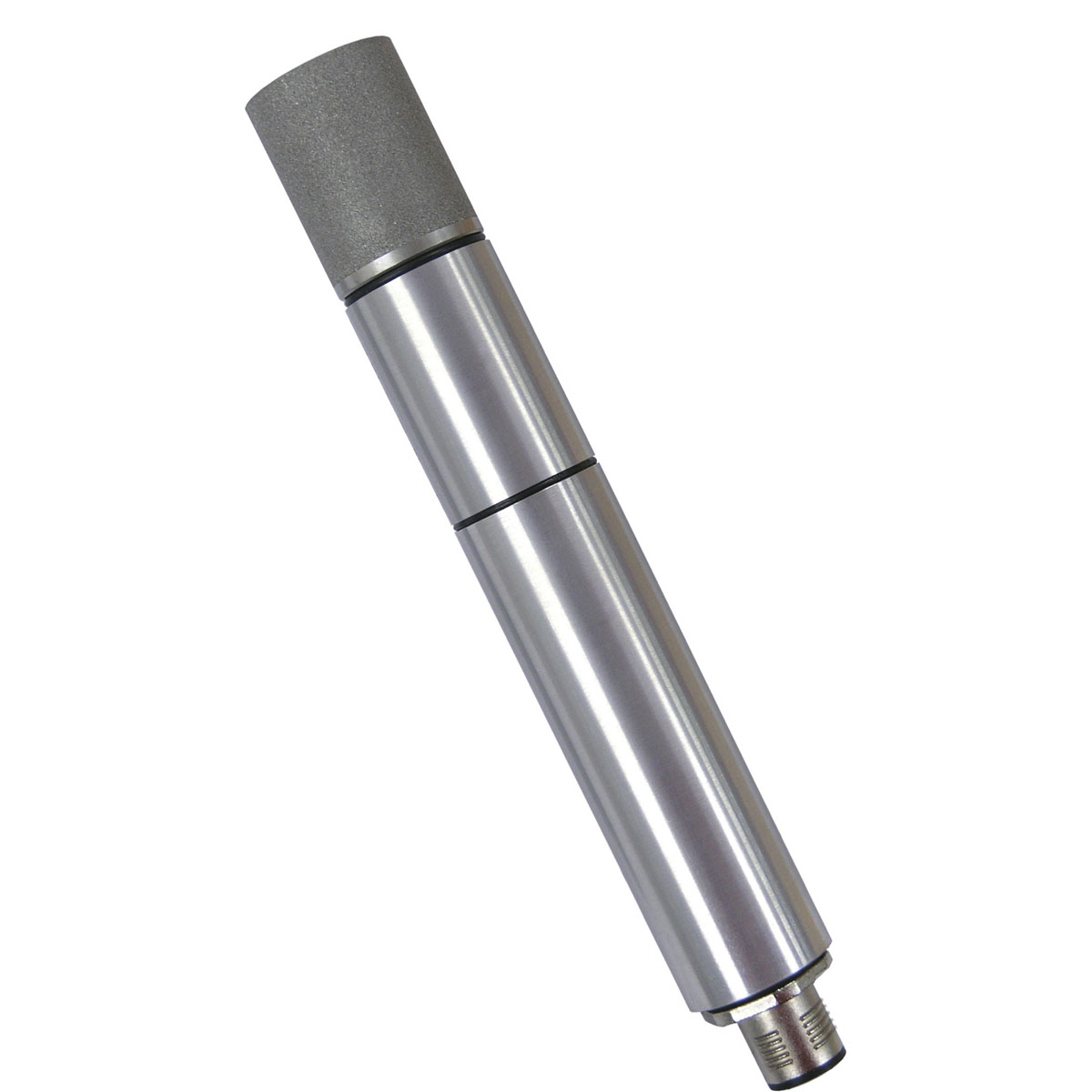

Profile image of TH Pro Nav Metreological Humidity and Temperature sensor

Weather Humidity and Temperature Sensor | TH[pro]

Price range: R12,442.00 through R14,417.00 ex vat

IP 65 Protection label Aluminium Metal parts label SDI Output available RS485 output label Suitable for Naval useModbus RTU protocol

Weather Humidity and Temperature Sensor – Overview

The sensor TH[pro] is a dual measuring instrument for relative humidity and air temperature. The sensor with its energy-saving electronics is characterised by high accuracy. Modbus or customised protocols available. For maritime use, the sintered filter protects the capacitive measuring element from air pollutants.

Weather Humidity and Temperature Sensor – Features

  • Combined measuring instrument for high-quality use
  • For use in all climatic zones
  • Capacitive humidity measuring element
  • Low maintenance
  • Signal output: RS 422/ Talker • NMEA • Modbus RTU • Modbus  RS 485
  • Suitable sensor shelter type 8141.6 (recommended option)
  • High-quality standards in meteorology and on ships
Clear
SKU: N/A Categories: , , Tags: , , , , , , ,
Lambrecht logo Square

Description

Weather Humidity and Temperature Sensor | TH[pro]

Id-No. 00.08095.100001 TH[pro]
00.08095.101001 TH[pro] Nav
00.08095.100031 TH[pro] Modbus
Meas. range air temperature -40…+70 °C
Meas. range rel. humidity 0…100 % r.h.
Accuracy air temperature ± 0.1 K (0…60 °C)
± 0.2 K (-40…0 °C)
Accuracy rel. humidity typ. ± 1.5 % (0…80 %) r. h.
± 2 % (> 80 %) r. h
Reaction time rel. humidity (at v = 1.5 m/s): 30 s
Resolution air temperature 0.1 °C
Resolution rel. humidity 0.1 % r.F.
Protocols NMEA 0183 | WIMHU | WIMTA | Modbus RTU
Interface  00.08095.100001 Serial RS 422/ Talker | Baudrate 4800 | 1 Hz | 8 N 1 | Modbus RTU | SDI-12 *
00.08095.100031 Serial RS 485 Modbus RTU
Supply voltage 4.8…33 V DC
Power consumption 4 mA at 24 VDC | 6 mA at 12 VDC |  11 mA at 4.8 VDC | without terminating resistor
Dimensions H 140 mm x Ø 20 mm
Housing Aluminium especially-coated | M12 plug connector (4-pole)
Protection class IP 65 (housing)
Weight approx. 80 g
Options (order separately) * Service: 97.08095.000010 · Pre-configuration of the standard TH[pro] to SDI-12
 Accessories (order separately) 00.08141.600000 Sensor shelter with natural ventilation
00.08141.600004 Sensor shelter with artificial ventilation
32.14567.060010 sensor cable, 15 m, 4 pole, M12 plug
32.14567.060000 sensor cable, 12 m, 4 pole, M12 plug
