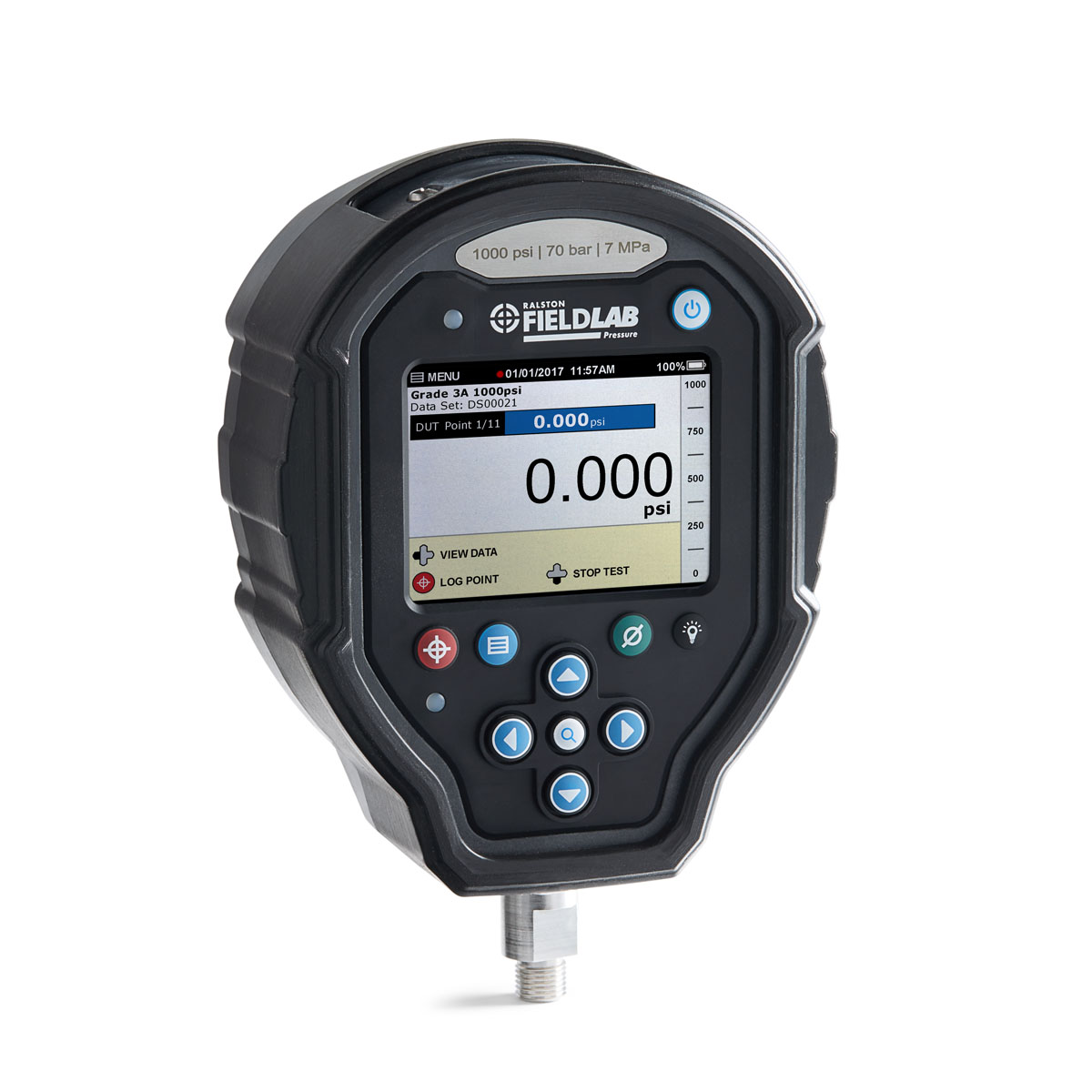

Digital Pressure Calibrator Display – Overview

The Digital Pressure Calibrator is a safe device designed to work on site. It is certified Intrinsically Safe for hazardous locations anywhere in the world. Pressure safety valve crack tests and seat tightness tests can be performed with precision while generating solid data to back up your observations. Single-button logging of both Devices Under Test (DUT) and Reference readings allow techs to get digital logging of test points and instant tolerance feedback. The Fieldlab Test Modes easily create Test Modes for the work that needs to be done and how you want your data returned.  Activate your custom Test Mode on your FieldLab to ensure repeatability and traceability. The Pressure Calibrator Display comes with all standard engineering units used to measure pressure or vacuum and can instantly swap units without searching through menus. For general purpose data logging, the instrument can monitor pressure over short or very long periods at customised intervals.

Digital Pressure Calibrator Display – Features

• Customise Log Interval & Duration
• Long Term Field Monitor (3 months on a single charge)
• 2 Million Data Points Onboard Storage
• Wellhead Monitoring
• Chart Recorder Replacement

Pressure Range Options

• 5 psi / 350 mbar / 35 kPa = GB
• 15 psi / 1 bar / 100 kPa = GD
• 30 psi / 2 bar / 200 kPa = GF
• 50 psi / 3.5 bar / 350 kPa = GH
• 100 psi / 7 bar / 700 kPa = GJ
• 300 psi / 20 bar / 2 MPa = GL
• 500 psi / 35 bar / 3.5 MPa = GN
• 1,000 psi / 70 bar / 7 MPa = GP
• 3,000 psi / 200 bar / 20 MPa = GR
• 5,000 psi / 350 bar / 35 MPa = GT
• 10,000 psi / 700 bar / 70 kPa = GV

Process Connection Options

¼” Male BSPP = 2B
¼” Male NPT = 2M
Ralston Male Quick-test™ = QM
Ralston Male Quick-test™ XT = XM

Accessories

Wireless Module = W1

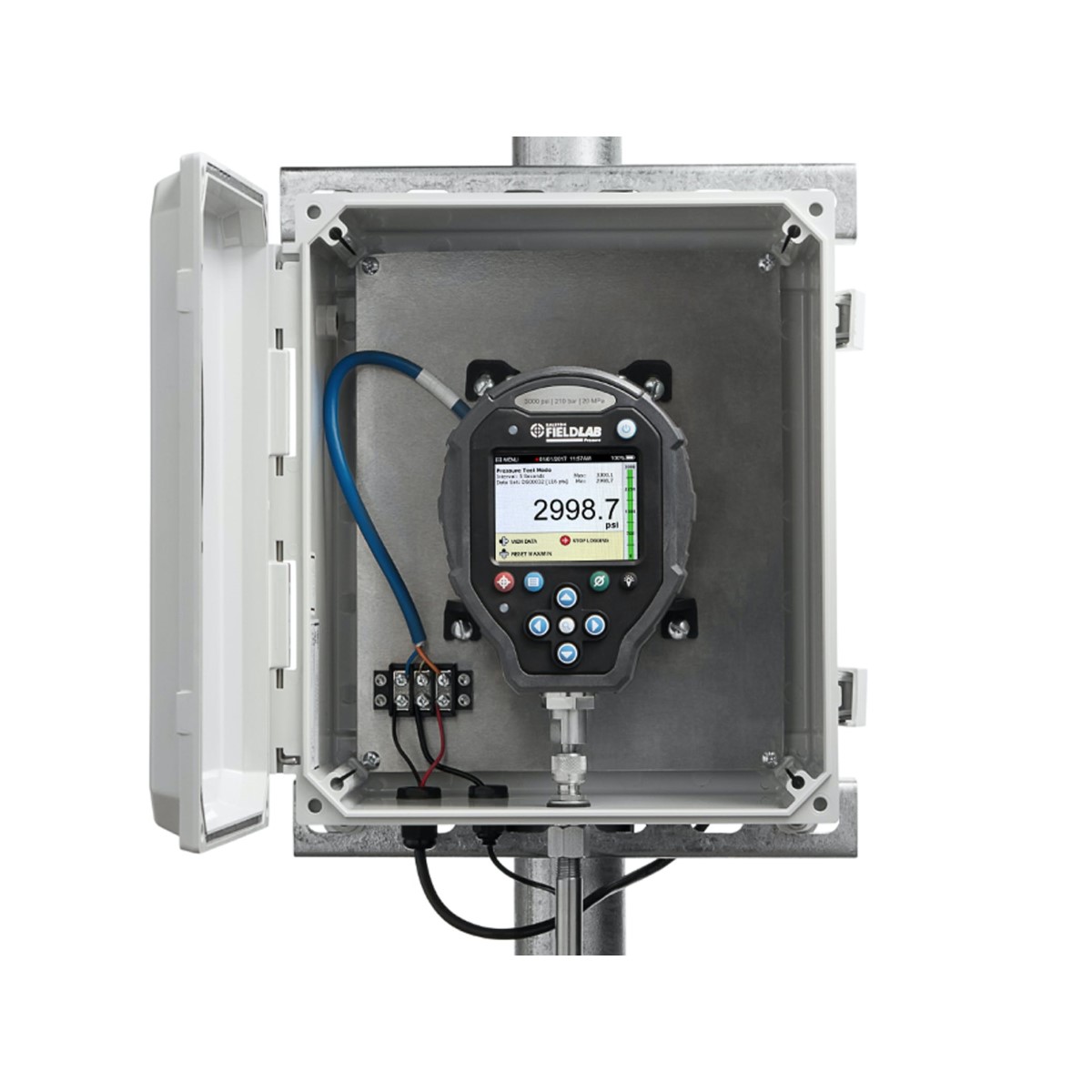

WeatherProof Enclosure = E0
WeatherProof Enclosure with pole mounting hard = EH

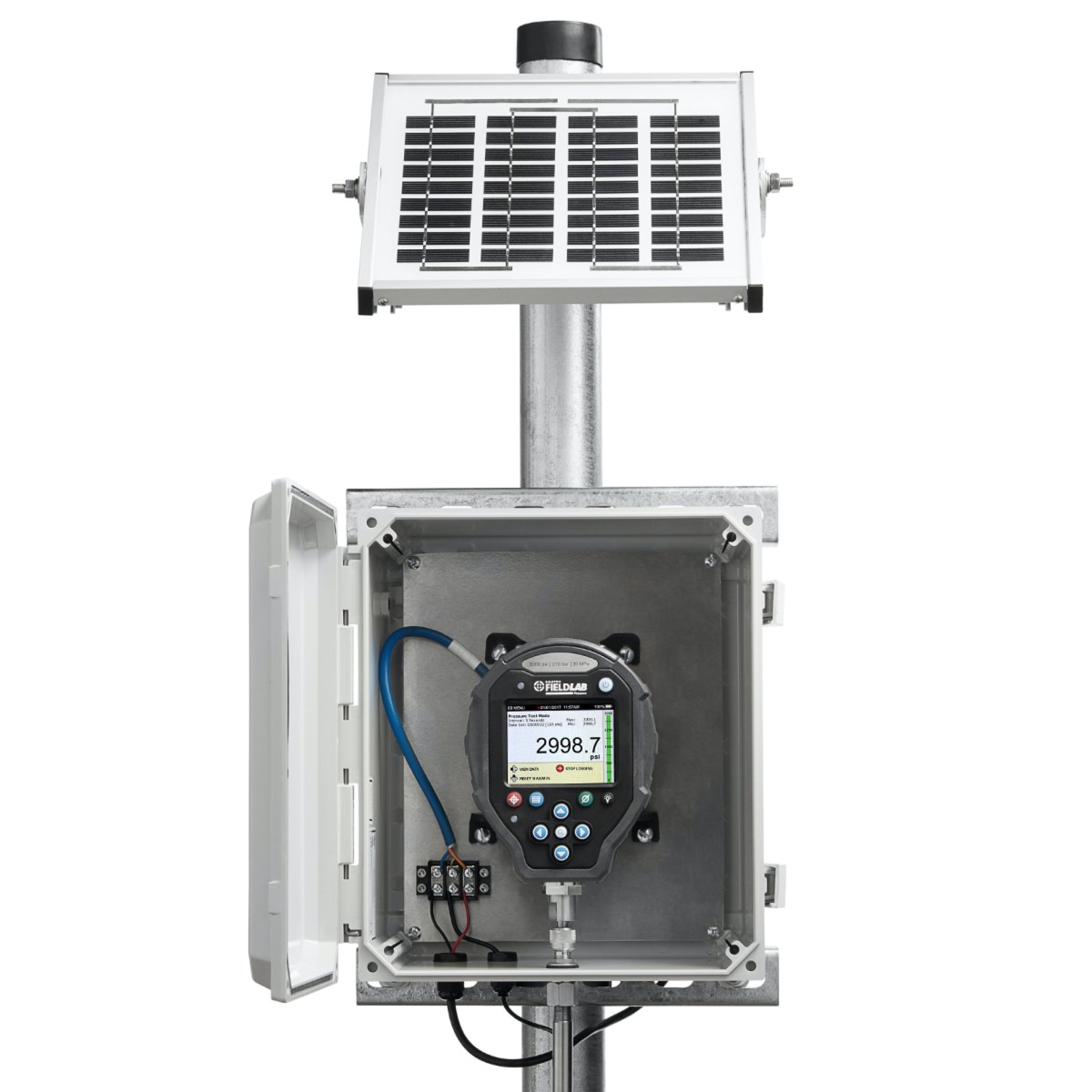

Solar Panel = SP
