Digital AC/DC Clamp Meter | CMP-403

Digital AC/DC Clamp Meter | CMP-403

R3,046.00 ex vat

Digital Clamp Meter – Overview

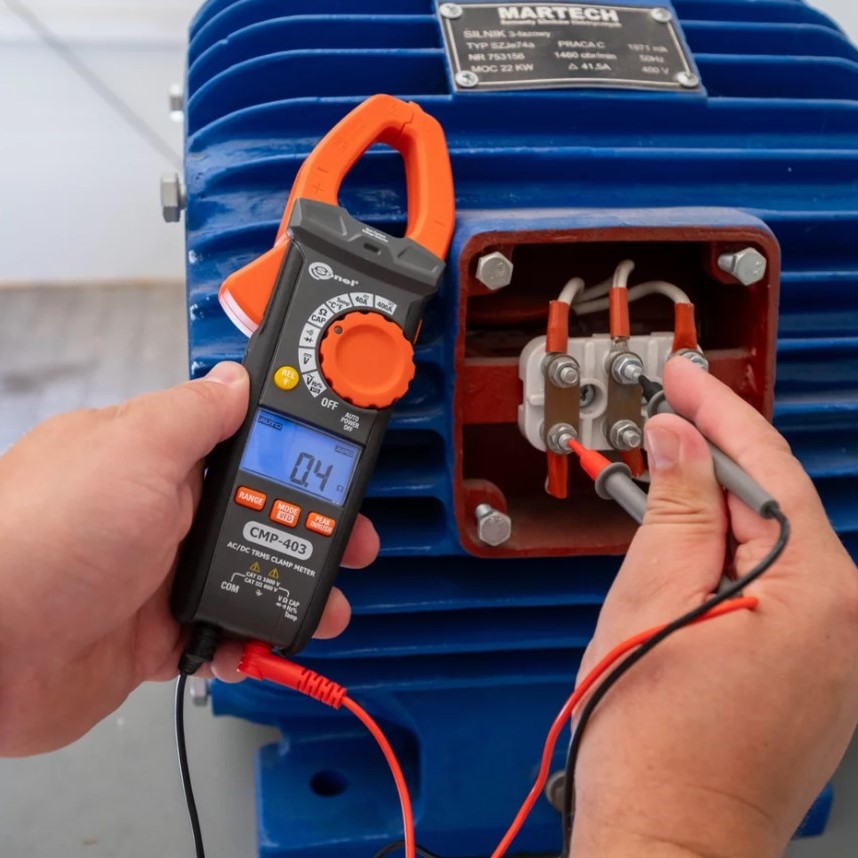

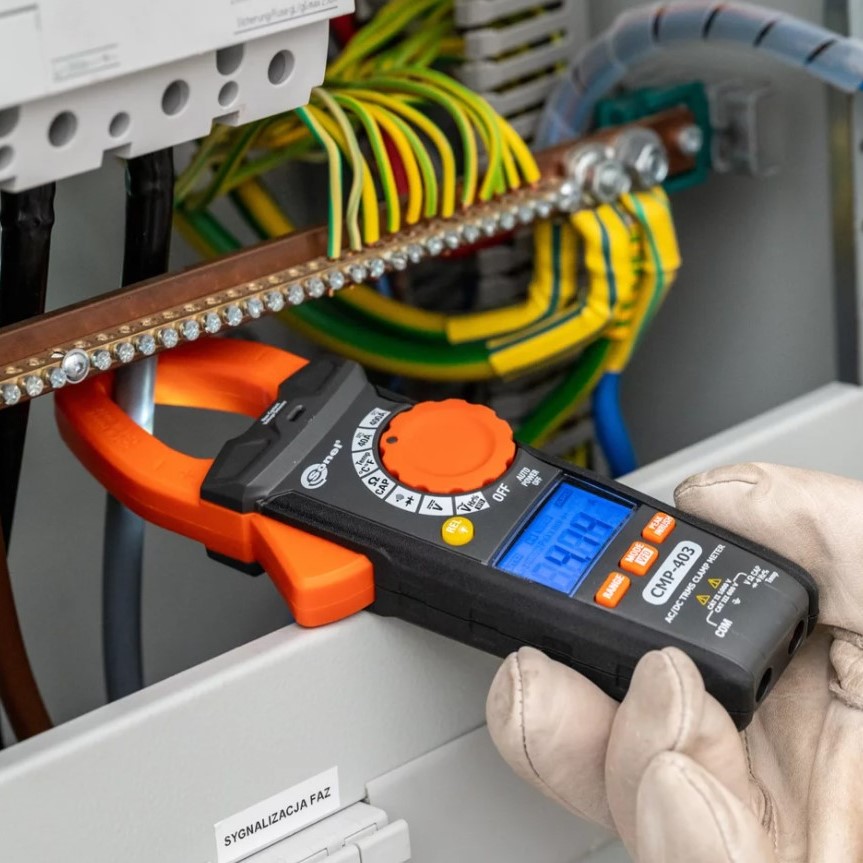

The CMP-403 measures AC & DC current, AC & DC voltage and more. The meter provides precise measurements downstream of frequency converters thanks to the VFD function and is versatile due to its many measurement options. In addition to the basic measurements, the instrument has special functions which include inrush current (INRUSH), max/min peak values (Peak MAX/Peak MIN), and relative value (REL). The built-in flashlight eliminates the problem of darkness in the workplace. The innovative shape means easier access in hard-to-reach and tight places. The clamp edging is equipped with a contactless voltage indicator sensor.  This compact instrument is suitable for working in the toughest conditions. The rubber housing protects the device against accidental damage.

Digital Clamp Meter – Features

  • Counting: 4.000 digits
  • HOLD
  • Automatic range selection

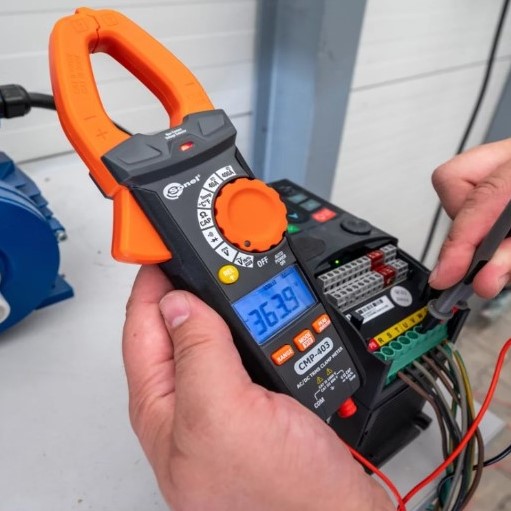

  • Current and voltage measurements downstream inverter, frequency converter or in VFD system
  • Inrush current
  • Non-contact voltage detector
  • Peak MIN / Peak MAX
  • Relative measurement REL
  • TRMS measurement
  • Auto-off
  • Empty battery indication
  • Integrated flashlight
  • Beeper
  •  Display:
    • Type: segment-based LCD, 4 digits
    • Display backlight: manual

Description

Digital Clamp Meter | CMP-403

Measurement functions Range Resolution Accuracy
AC current up to 400.0 A from 0.01 A from ±(2.0% m.v. + 8 digits)
DC current up to 400.0 A from 0.01 A from ±(2.0% m.v. + 8 digits)
AC and VFD voltage up to 1000 V from 0.001 V from ±(1.2% m.v. + 5 digits)
DC voltage up to 1000 V from 0.001 V from ±(1.0% m.v. + 3 digits)
Resistance up to 40.00 MΩ from 0.1 Ω from ±(1.0% m.v. + 4 digits)
Frequency
current up to 999.9 Hz from 0.01 Hz ±(1.0% m.v. + 5 digits)
voltage up to 99.99 kHz from 0.01 Hz ±(1.0% m.v. + 5 digits)
Capacitance up to 99.99 mF from 0.001 nF from ±(3.0% m.v. + 5 digits)
Duty cycle (%) 20.0…80.0% 0.1% ±(1.2% m.v. + 10 digits)
Temperature measurement -20.0…+1000ºC
-4.0…+1832ºF
0.1ºC
0.1ºF
±(3% m.v. + 3ºC)
±(3% m.v. + 5ºF)
Continuity / Diode test ✓ / ✓

m.v. – measured value

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Digital Clamp Meter | CMP-403

Brand

Sonel
