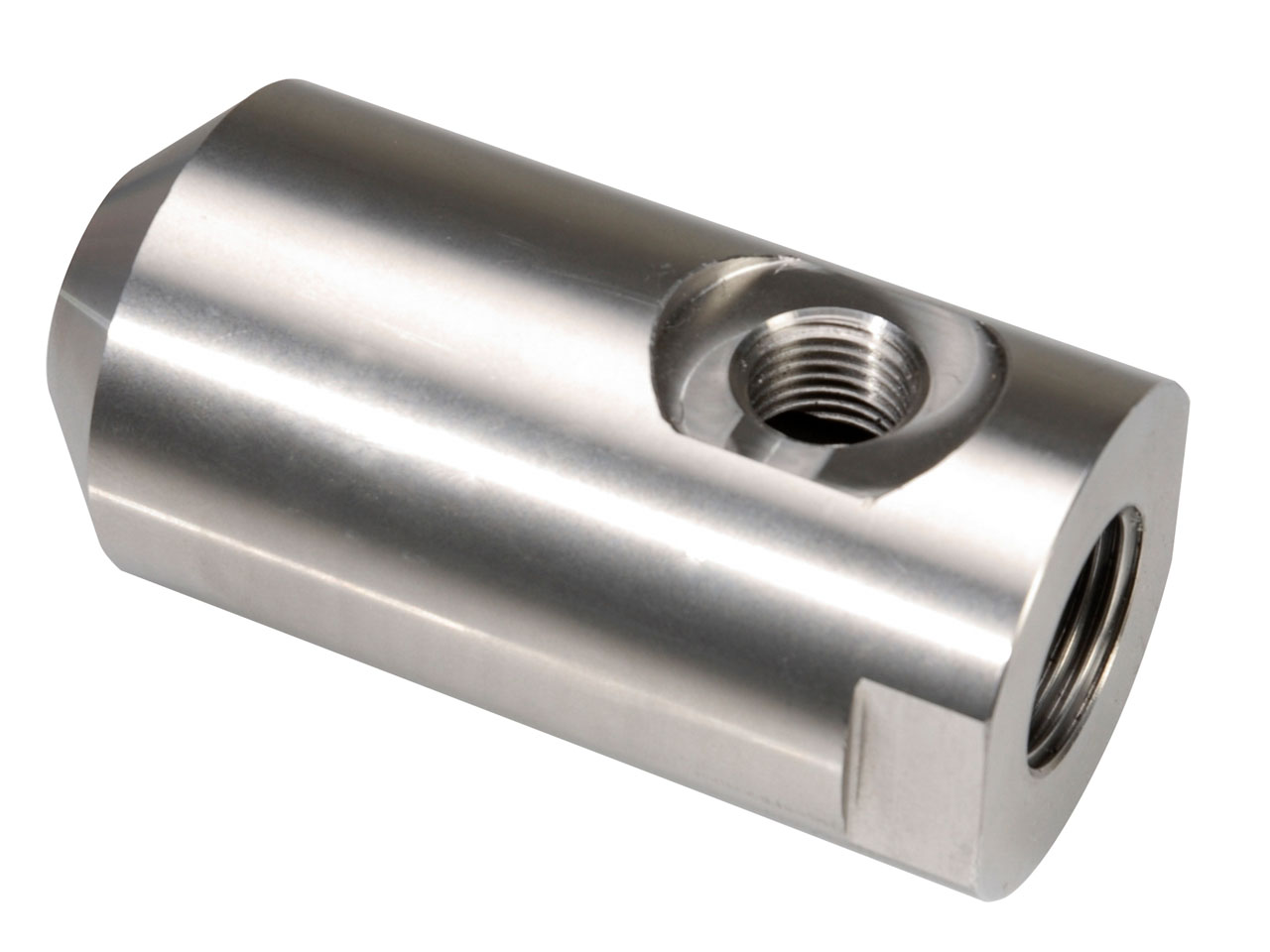

LPD-MCS Dew point Measurement cell body Stainless Steel
LDP Low dew point Installation

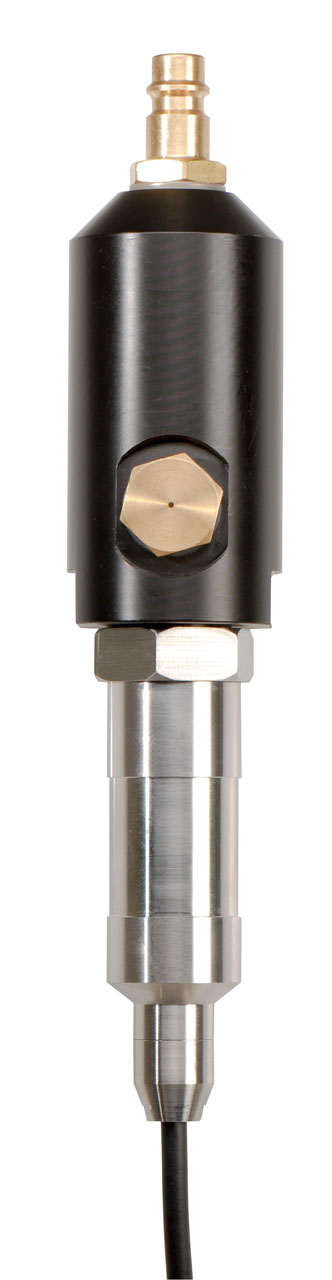

Rotronic Low dew point probe with measurement cell - body, POM LDP-FCB1

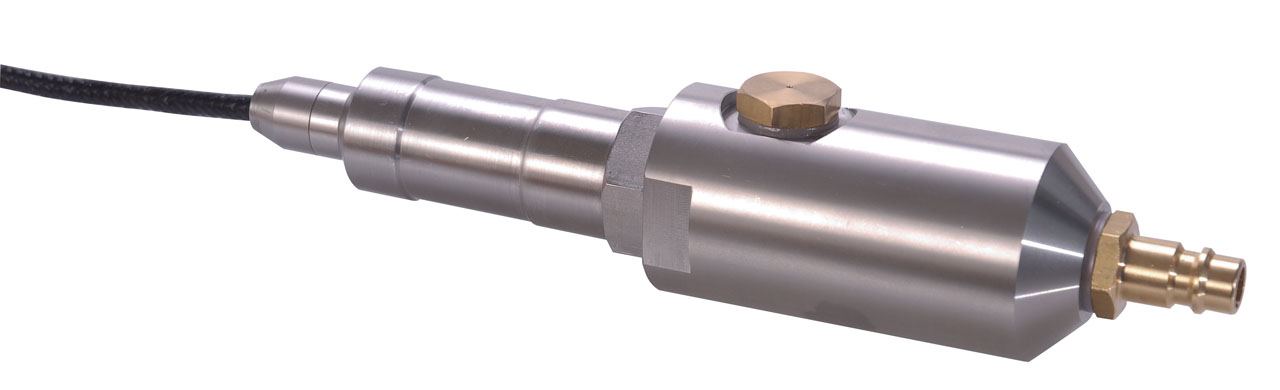

Low Dew point probe with cell body Stainless Steel LDP-FCS1

Dew Point Measurement Chambers | Rotronic

R1,553.00 – R8,812.00 ex vat

Dew Point Measurement Chamber – Overview

Measurement chambers for the Rotronic HC2-LDP with a defined air flow rate and a quick connector for optimum dew point measurement in POM. The base unit can be used for customisation.

Dew Point Measurement Chamber – Features

  • Compatible with HC2-LDP dew point sensor and HF5/ HF8/ PF4 transmitters and handhelds
  • Highly accurate dew point and temperature measurement
  • Withstands pressure up to 100 bar
  • HYGROMER LDP-1 sensor element
  • Excellent repeatability
  • With the latest AirChip4000 measurement technology

*Probes and Transmitter sold separately

Clear
SKU: N/A Category: Tags: ,

Description

Dew Point Measurement Chambers

MEASURING RANGE LDP-FCPB1 : -40 to 85 °C
LDP-FCSB1 : -50…100 °C
PRESSURE RESISTANCE LDP-FCPB1 : 16 Bar
LDP-FCSB1 : 35 Bar
AIR FLOW 1 l/min. @ 8 bar (LDP-FCB1)
CONNECTION G1/2“ thread
Compressed air fitting DN 7.2 (only LDP-FC)
2 x G 1/4“ thread (only LDP-MC)
HOUSING Base unit LDP-FCPB1: POMBrass (fixed valve / quick connector)
Base unit LDP-FCSB1: Stainless steel 1.4301
Brass (fixed valve / quick connector)
DIMENSIONS 40 x 106 mm
WEIGHT 140 g / 100 g

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Dew Point Measurement Chambers

Additional information

Options

LDP measurement cell – body, POM, LDP measurement cell – body, stainless steel, Flow cell, POM (body), brass (valve), 1 lt./min @ 8 bar, Flow cell, stainless steel (body), brass (valve), 1 lt./min @ 8 bar, sintered steel, 50um, sintered steel, 50um, set of 5
