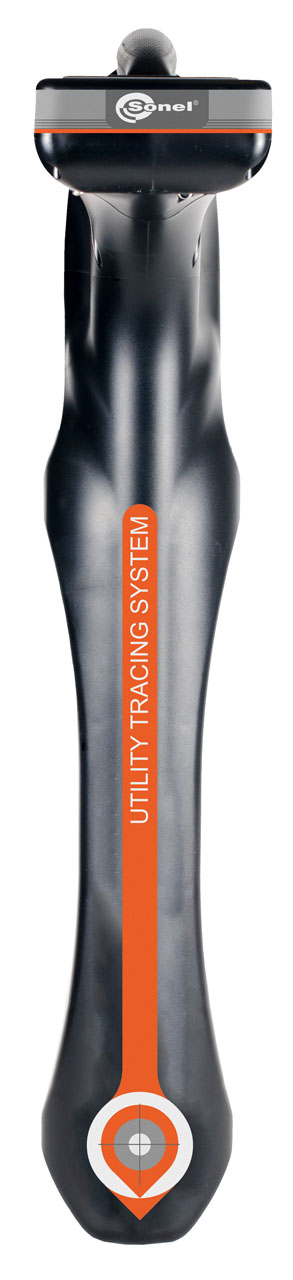

Overview of Cable and Pipe Locator LKZ-2000

Easily locate cables and pipes with pinpoint accuracy. The complexity of large underground utilities networks continually increase, therefor obtaining precise information on the location of specific buried cables and pipes has never been so important. To protect buried assets during ground excavation work and supporting the mapping and surveying of these existing utilities.

Sonel LKZ-2000 system has a unique flexible operating modes to help you easily decide the right mode for your location application for the site conditions. The intelligent utility locator monitors the signal interference levels in all available modes and recommends which to use for the best results. Saving you time and giving you increased confidence in your results.

Application for  Sonel LKZ-2000 – the best system for most challenging conditions!

POWER INDUSTRY
Sonel LKZ-2000 is designed to easily trace power cables over long and short distances with pinpoint accuracy, especially in areas with high levels of electrical interference. When used in conjunction with the supplied Multi Clamp a trace signal can be safely applied to an electrically live cable. The A-Frame accessory can also be used to easily locate cable sheath faults.

CIVIL ENGINEERING AND CONSTRUCTION INDUSTRIES
The highly durable, weatherproof Sonel LKZ system has a flexible operating system to suit most site conditions and terrain, which is essential on complex and demanding civil engineering and construction sites.

RAIL INDUSTRY
Damaging communication cables can be very costly and time consuming to repair, causing major disruption to the rail network. Sonel LKZ system is designed to easily locate and trace cables in congested areas and with high levels of electrical interference.

TELECOM INDUSTRY
Tracing and locating large bundled cables, such as fibre optic cables, can be difficult and time consuming. Sonel LKZ systems high frequency modes are ideally suited for these types odd cables, helping to improve your productivity and locating reliability of all cable types. The A-Frame accessory can be used to easily locate cable sheath faults.

GAS & OIL INDUSTRIES
These can be the most potentially hazardous, costly or environmentally sensitive pipes to strike and therefore most important not to damage. Using the Sonel LKZ system’s range of low frequency modes, locating and tracing these pipes is easy over long distances, maintaining maximum accuracy.

WATER INDUSTRY
Locating and tracing pipes can support the mapping and surveying of utilities. Using the Sonel LKZ system with our dual frequency sonde is the ideal solution for locating deep underground non-metallic sewerage and drainage pipes, that can’t be detected using standard locating technology.



Description

LOCATOR
Frequency / Mode (factory enabled) Power mode 50 Hz, 100 Hz, 450 Hz / 60 Hz, 120 Hz, 540 Hz
Radio mode 15 kHz to 60 kHz
Transmitter made 512 Hz, 3140 Hz, 8192 Hz, 32768 Hz and 83.1kHz
(22 frequencies user configurable)
Antenna configurations Single peak, twin peak, null, total signal or left/right (cable only)
Depth Power to 3 m (10 ft.)
Radio to 2 m (6 ft.)
Transmitter modes to 4.6 m (15 ft.)
Sonde to 6 m (20 ft.)
Depth Estimation 5% of depth in line or sonde (0.2 m to 4.6 m depth range)
10% of depth sonde 4.6 m to 6 m
Bluetooth For remote control transmitter
Battery Type 2 x LR20, not supplied
Battery life 60 hours intermittent use (at 20°C / 68°F)
Auto-off Selectable after 5, 10, 20 or 30 minutes
Operating temperature range -20°C to 50°C (-4°F to 122°F)
Dimension 700 mm (H) x 325 mm (L) x 122 mm (W) (27″” H x 1.8’’ L x 4.8’’ W)
Weight 2.18 kg (94.8 lbs) including batteries
IP rating IP65
TRANSMITTER
Operating frequencies (Factory enable) 512 Hz, 3140 Hz, 8192 Hz, 32768 Hz, 83.1 kHz, 200 kHz
(12 frequencies user configurable)
Output power control 5 levels
Induction (max) 3 Watt
Direct connection (max) 12 Watt when connected to a buried service with an impedance of 100 Ohms
Battery type 10 x LR20, not supported
Battery life up to 100 hours intermittent use (level 2 output at 20°C / 68°F)
Shutdown Selectable auto shutdown after 1, 2, 3, 4, 5, 6, 7, 8 hours
Operating temperature range -20°C to 50°C (-4°F to 122°F)
Dimensions 255 mm (H) x 190 mm (D) x 305 mm (W) – (10’’ H x 12’’ L x 8’’ W)
Weight mm (W) – (10’’ H x 12’’ L x 8’’ W)
3.5 kg (8 lbs) including batteries
IP Rating IP65
