Multifunction Pressure and Flow Meter –  Overview

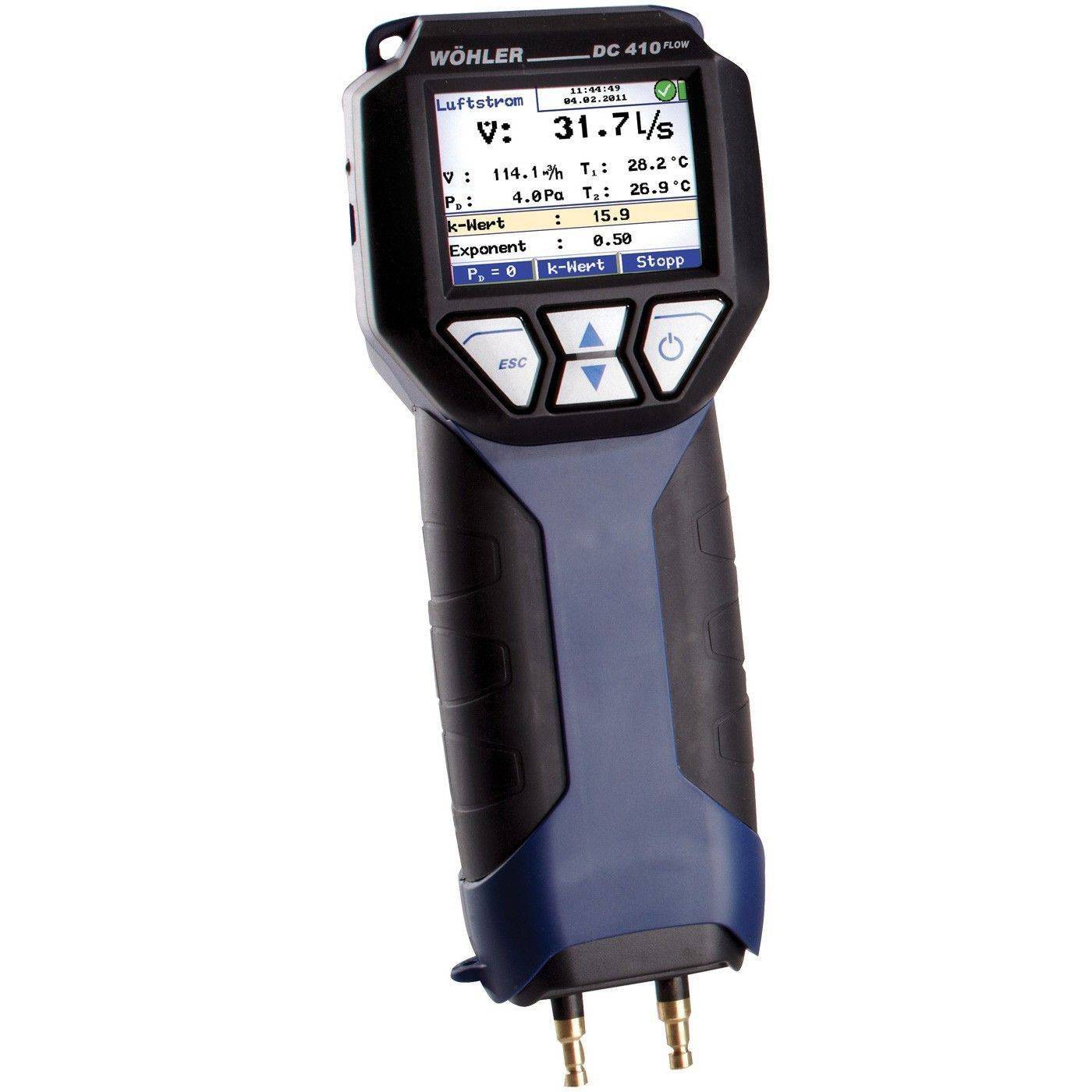

This multifunctional handheld instrument is used to measure differential pressure, airflow, air speed and temperature, as well as for the registration of humidity and barometric pressure. It is suitable for use for acceptance measurements at ventilation systems according to DIN EN 12599; 4 PA Pressure Test to confirm the combustion air availability; measurement of the ventilation loss and the surface loss; flow pressure, installation pressure, standing pressure, jet pressure; flow measurement in air and flue gas ducts; and a data logger. It is highly accurate and incorporates “no-drift” technology. It is tested to comply with standards for ventilation for buildings. It has a USB interface to communicate with your PC, or can print directly with the Wöhler TD 600 thermal fast printer. It can be operated with one hand and has a 4-button keypad.

Multifunction Pressure and Flow Meter – Features

  • Multi-functional
  • Highly accurate
  • Technician friendly

Description

Multifunction Pressure and Flow Meter | DC410 Flow

Technical data
Differential Pressure Range ±100 hPa
Accuracy
< 3 % of the reading, if the value is < ±5 Pa, better than ±0,15 Pa
Resolution
0,01 Pa within the range ±110 Pa
0,1 Pa within the range ±1.000 Pa
otherwise 1 Pa
Air speed Range 0,3…120 m/s
Resolution 0,01 m/s
Continuous density correction:
automatic, with temperature signal
Temperature (internal sensor) Temperature (internal sensor) -20…60 °C
Accuracy < ±1 °C
Resolution 0,1 °C
External temperature probe Range
2 canals, -20…800 °C
Accuracy
< ±2 °C at 0…133 °C
otherwise 1,5 % of the value, according to the directive EN 50379-2
Resolution 0,1 °C
Relative humidity Range
0…100 % r.H. (relative humidity), non condensing
Accuracy
< ±2 % r.H., at 0…90 % r.H., otherwise < 3 % r.H.
Resolution 0,1 % r.H.
Barometric Pressure Range
±300…1,100 hPa
Accuracy
< ±1,5 % hPa of reading
Resolution 0,1 hPa
Current consumption
4 AA rechargeable batteries or 4 AA disposable batteries 1,5 volt
Interfaces
USB interface for data transfer to a PC.

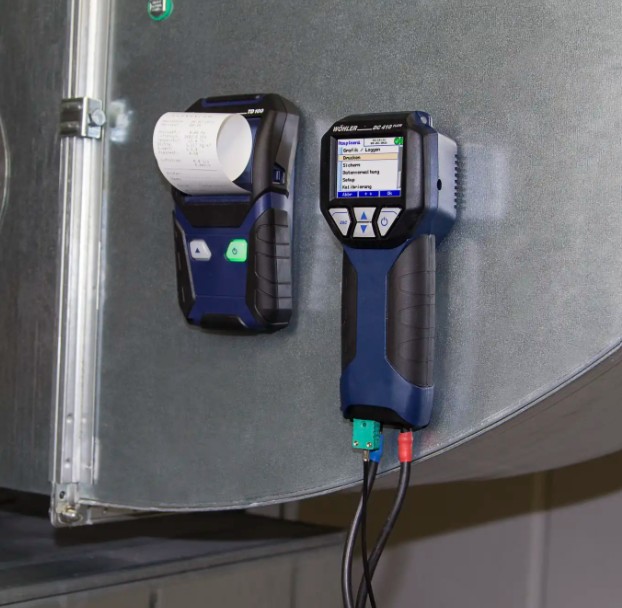

It is possible to transfer the data directly from the meter to the Wöhler TD 600 thermal fast printer
Operating temperature 5…40 °C
Dimensions
80 x 225 x 60 mm

Multifunction Pressure and Flow Meter | DC410 Flow

Brand

Wöhler
