Multifunction Signal Display Monitor | DPM03

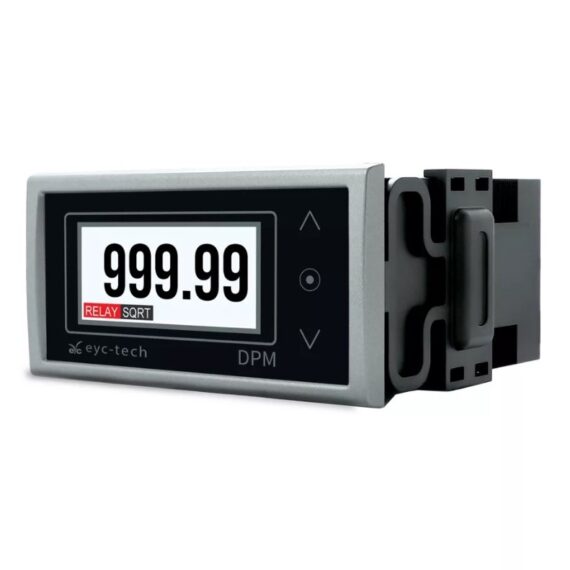

Multifunction Signal Display Monitor DPM03

Multifunction Signal Display Monitor | DPM03

R2,782.00 ex vat

Multifunction Signal Display Monitor – Overview

The Multifunction Signal Display Monitor makes operator reading of an instrument signal easy. This unit displays your readings clearly to ensure better safety and communication in production environments. It has a 5-digit display. Applications include industrial, factory automation, chemical engineering, water treatment, energy, environmental monitoring and pharmaceuticals.

Multifunction Signal Display Monitor – Features

  • High accuracy ±0.1% F.S. ±1 digit
  • 2″ LCD display
  • 5-digit display, decimal point configurable
  • Input signals: Current / Voltage
  • Output signals: Current / Voltage / Relay / RS-485
  • Power supply: AC 90 … 250 V / DC 24 V
  • Auxiliary power: DC 18 … 26 V / 50 mA
  • Square root function for analogue signals
  • Relay output can be configured for action modes (Hi / Lo), hysteresis, delay time, & reset delay
  • Linear interpolation function enables adjustment of non-linear analogue input
Clear
SKU: N/A Categories: , Tag:

Description

Multifunction Signal Display Monitor | DPM03

Display
Display readout 5-digit
Decimal point 0 … 4 place
Display
2″ LCD display
Digit height: 12 mm
Sampling time 8 ms
Response time adjustment range
0.5 … 60 sec
Parameter setting mode Button
Input
Signal type
Current: 0 … 20 mA / 4 … 20 mA
Voltage: 0 … 10 V
Output
Signal Type
Current: 0 … 20 mA / 4 … 20 mA
Voltage: 0 … 10 V
Accuracy
Display
±0.1% F.S. ±1 digit
Input
Current: ±0.1% F.S.
Voltage: ±0.1% F.S.
Output
Current: ±0.2% F.S.
Voltage: ±0.2% F.S.
Temp. influence
±100 ppm/°C
Relays
Alarm hysteresis
Display value or 0 … 100%
ON and OFF delay
0 … 3600 sec
Output signal error detection Yes
Relay actuation direction
Upper limit: HI / AL
Lower limit: LO / AL
Relay capacity
Max current: 6A
Max voltage: AC 277 V / DC 30 V
Max power: 1500 VA / 180 W
Communication
Communication methods & protocol
RS-485 Modbus RTU, master or slave
RS-485 baud rate
9600、19200、38400、57600、115200 bps
Environment
Operating environment
0 … + 60°C / 0 … 95%RH(Non-condensing)
Storage environment
-25 … + 60°C
Electrical
Power supply / Voltage
AC 90 … 250 V / 50 … 60 Hz
DC 24 V ± 10%
Auxiliary power / Output
DC 18 … 26 V / 50 mA
Insulation voltage endurance
2 K Vac/1 min
Parameter memory type FLASH
Dissipated power 5 W
Isolation
Analogue output
Protection
IP rating
IP65 (Front panel)
Electrical protection
Polarity protection, Over-voltage
Certification
Certification CE
Material
Housing
ABS fire-proof class(UL94V-0)
Dimensions(HxWxD)
48x96x96 mm
Cut out dimensions
42.5×90.5 mm(+1 mm)
Weight About 160 g

Multifunction Signal Display Monitor | DPM03

Additional information

Options:

Display, Display+1*RELAY+RS485+Analog output

Brand

eYc
