Flow Switch-Piston Type | FPC04

Flow Switch-Piston Type FPC04

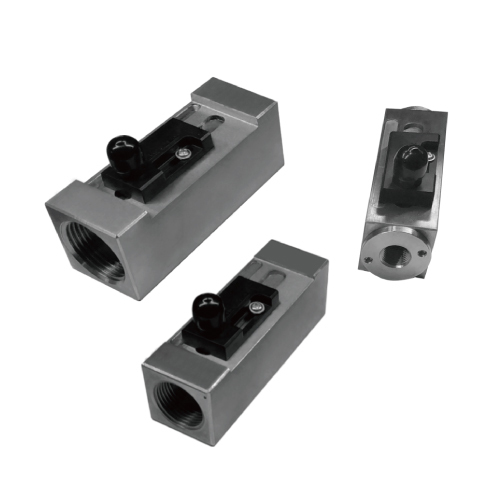

Flow Switch-Piston Type FPC04 Metal

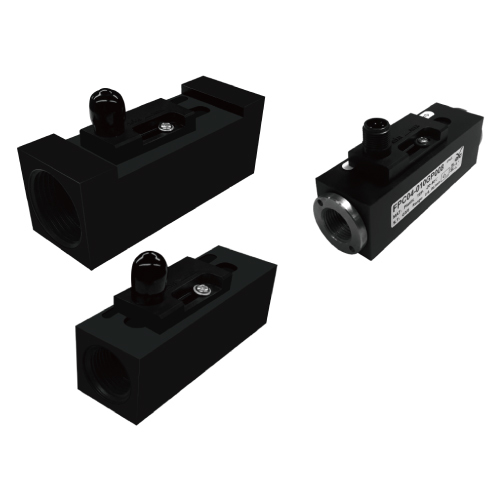

Flow Switch-Piston Type FPC04 Plastic

Flow Switch-Piston Type | FPC04

R1,782.00 ex vat

Flow Switch-Piston Type – Overview

This Piston Flow Switch is a mechanical flow switch used for gases or liquids. It boasts a spring-supported piston and has magnetic triggering of a reed switch. The rugged design makes for a very durable product. Available in plastic or stainless steel.

Flow Switch-Piston Type – Features

  • Protection Rating – IP65
  • Pressure resistance 100bar (stainless steel)
  • Minimal pressure loss
  • Good repeatability
  • Dirt-resistant
  • High switch capability
  • Housing: Plastic / Stainless Steel
Clear
SKU: N/A Category: Tags: , ,

Description

Flow Switch-Piston Type | FPC04

Accuracy Accuracy The total range ± 5%
Hysteresis L / min Depending on switching point, minimum 0.6 L/min
Switch setting scale According to media distinction Media : Water  ;  Temp. : 20 °C
The standard state is set in the horizontal installation state.
Installation position, media, and temperature changes
have a slight effect on the switching value.
Media measured Liquid / Gas Water, Oil, Gas
Wiring Connector M12
Output Reed switch Capacity 24 VDC / 250 VAC, 100 mA
Pressure resistance Unit : bar Stainless steel : 100 bar, Plastic : 10 bar
Average pressure loss L / min 0.3 bar ( in 25 L/min )
Medium Temp. °C Max : 90 °C
Protection rating IP IP65
Material Plastic / Stainless steel Housing : Plastic / Stainless Steel, Piston : Plastic, Spring
Stainless Steel, Seal : NBR
Electrical connector M12 with 2 m cable

Flow Switch-Piston Type | FPC04

Additional information

Options:

Flow Switch-Piston Type, Threaded interface 3/8, Stainless Steel, 0.6~8L

Brand

eYc
