Handheld CO2, Humidity and Temperature – CP11

Handheld CO2, Humidity and Temperature – CP11

Call for price

Great value, portable multi parameter CO2 handheld unit

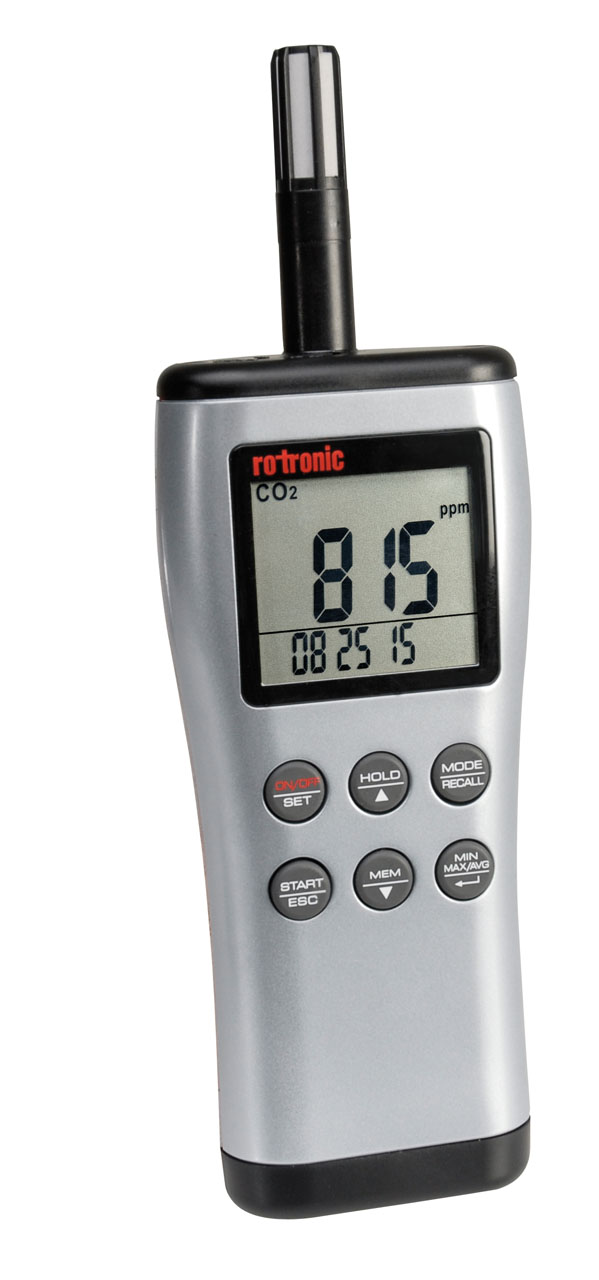

The CP11  is an economical handheld instrument measuring multiple parameter simultaneously including humidity temperature and CO2 . With psychrometric calculations of dew point and wet bulb temperature also available. The CO2 handheld can be set as required and data can be downloaded, saved and analysed using the ROTRONIC SW21 software, software key is provided and can be downloaded for installation on your computer. This instruments offers unbeatable value for money, equipped with a stable humidity sensor HYGROMER® IN-1. Unit are typically used for indoor air quality including, monitoring in underground car parks (safety), Leak monitoring in filling plants (safety).

CO2 Handheld Features

  • Measures and logs CO2, relative humidity and temperature.
  • Maximum, minimum and average value display.
  • Calculates dew point.
  • Software key for SW21 included downloading software from website.
  • Hygromer® IN-1 humidity sensor.
  • 18,000 data point memory for CO2, humidity and temperature values.
  • Adjustable audible CO2 alarm.

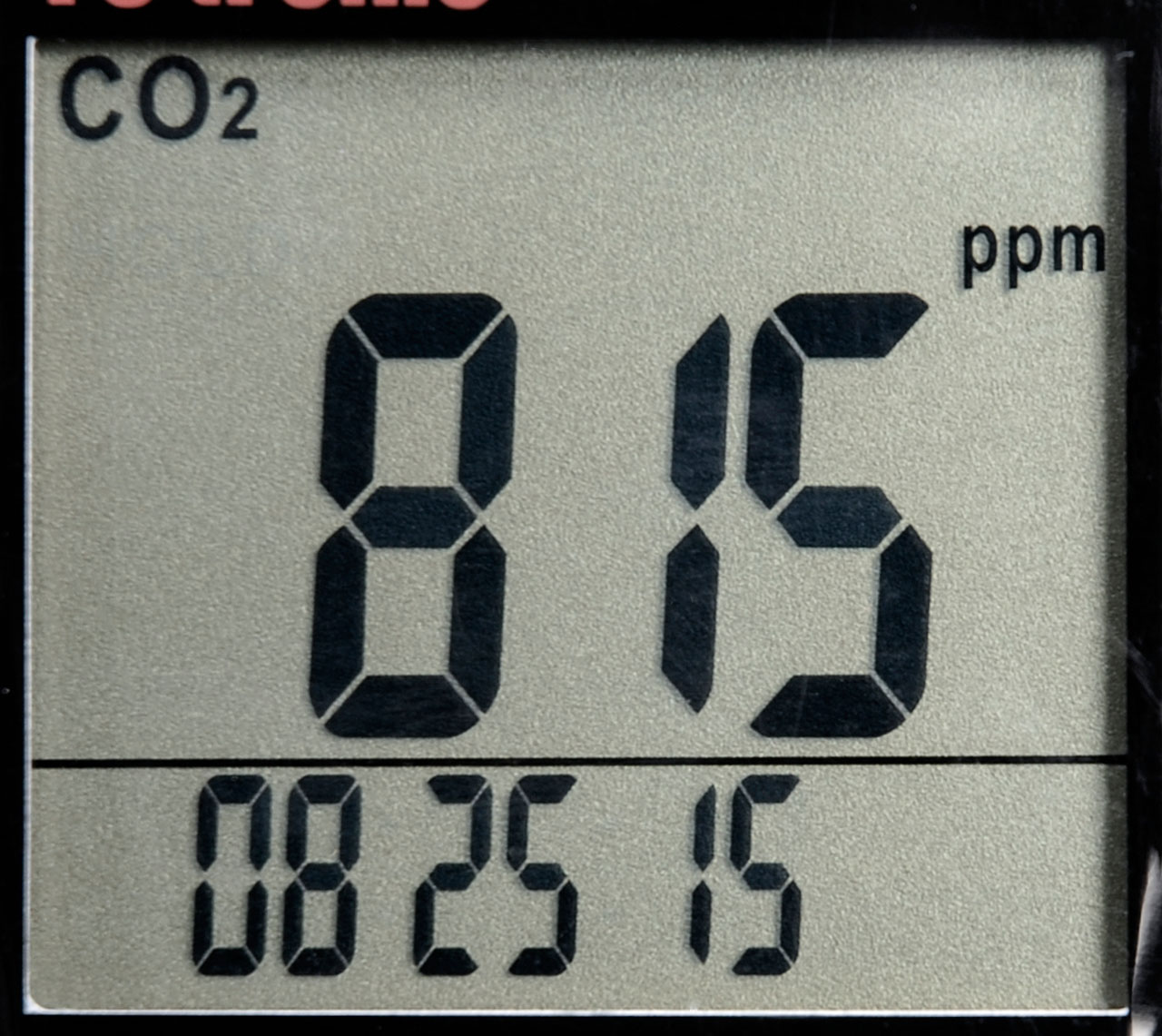

  • Display with back light
  • Adjustable auto power off function.
  • Mini USB interface

Description

RANGE OF APPLICATION 0…50 °C / 0.1…99.9 %RH, non-condensing
ACCURACY AT 23 ±5 °C ±30 ppm ±5 % of the measured value, <2.5 %RH (10…90 %RH), ±0.3 °K
MEASURING RANGE 0…5000 ppm, 0.1…99.95 %RH, -20…60 °C
MEASUREMENT PRINCIPLE Non dispersive infrared (NDIR) with automatic baseline correction (ABC)
ADJUSTMENT POINTS 0, 400 ppm and 35, 80 %RH
PRESSURE DEPENDENCY +1.6 % reading per kPa
ZERO DRIFT <10 ppm/year

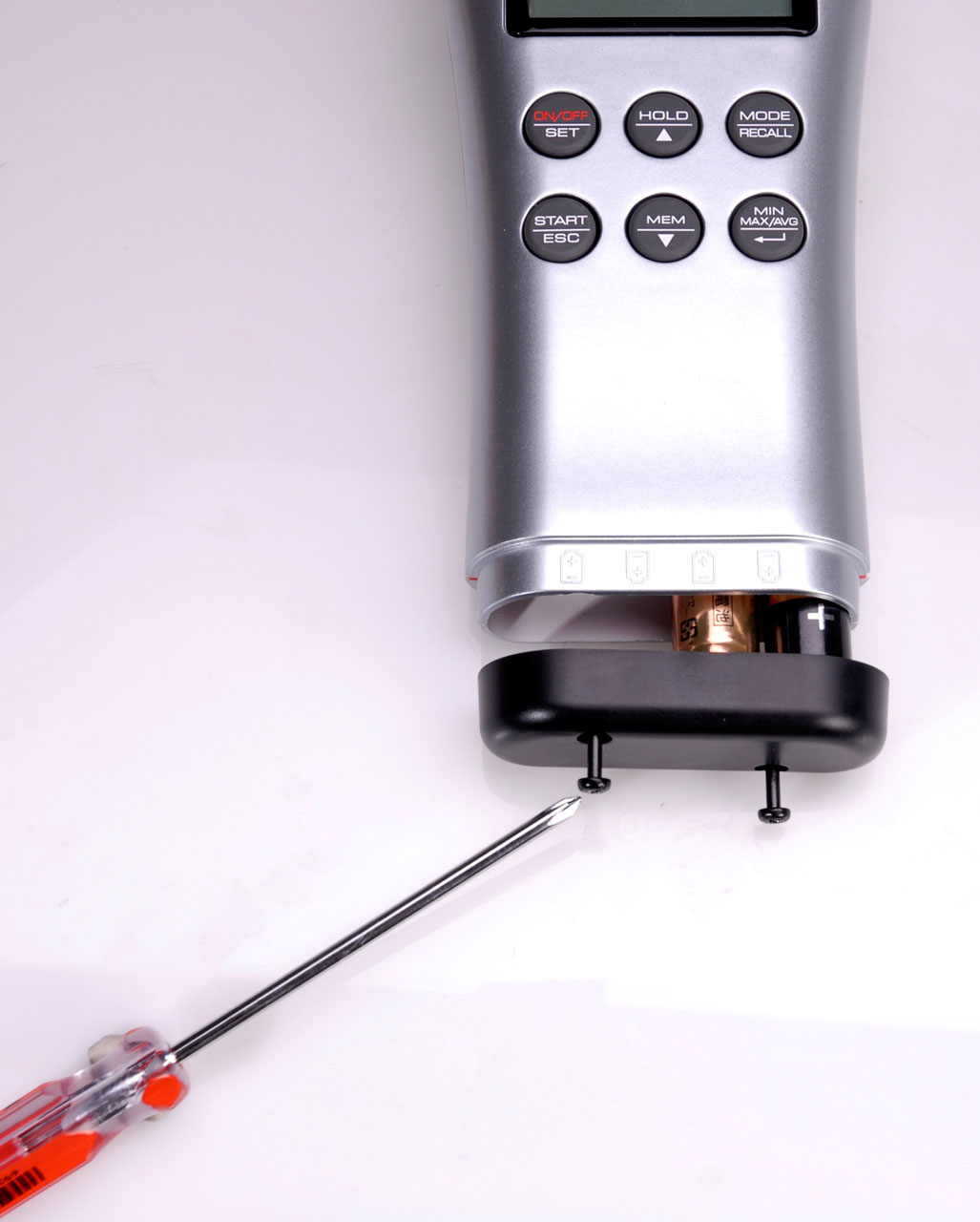

POWER SUPPLY 4 x AA batteries / optional AC adapter AC1214
CURRENT CONSUMPTION 40 mA (typical)
BATTERY LIFE 50 h
MEASURED VALUE MEMORY 18,000 values with time stamp, automatic recording (%RH / °C / ppm), 99 single values with time stamp, manual recording, (%RH / °C / DP / Tw / ppm)
WARM-UP TIME <1 min.
LONG-TERM STABILITY < 1.5 %RH per year
HUMIDITY SENSOR ROTRONIC HYGROMER® IN-1
TEMPERATURE SENSOR Thermistor
RESPONSE TIME <10 sec @ 30 cc/min. flow, <3 min diffusion time
RESPONSE TIME T 63 <30 s, without filter
CALCULATIONS Dew point, wet bulb temperature
PARAMETERS SHOWN CO2, relative humidity and temperature
CLOCK Real time clock
ALARM FUNCTIONS Adjustable for CO2 measurement
HOUSING ABS
IP PROTECTION RATING IP30
CE / EMC CONFORM 2004/108/EC
MAINTENANCE No maintenance (standard indoor application)
DIMENSIONS 76,7 x 41,8 x 233,9 mm
WEIGHT 290 g

download software from https://www.rotronic.com/en-ch/humidity_measurement-feuchtemessung-mesure_de_l_humidite/downloads-humidity-mr

Brand

Rotronic

Rotronic Logo

Additional information

Weight 290 g
Dimensions 76.7 × 41.8 × 233.9 cm
CO2 Range Min:

CO2 Range Max:

Operating Humidity Min:

Operating Humidity Max:

Operating Temperature Min:

Operating Temperature Max:

Relative Humidity Range Min:

Relative Humidity Range Max:

Temperature Range Min:

Temperature Range Max:
