Battery Extra Load Units

Battery Extra Load Units – Overview

This series is designed as an additional load to be used with BLU series, if the required discharge current or power exceeds the capacity of the available BLU device(s). These are based on the most advanced power electronics solutions and use 6-8 fans, which are integrated into the device. It provides high discharge currents (up to 330 A DC) for up to 500 V DC battery systems. The system of BLU and BXL battery testers enables the performance of the capacity test in an accurate, user-friendly way. It performs according to Application B-BXLNS1-315-EN, 2023-06-02 battery testing standards (IEEE 450-2010 / 11882005 / 1106-2015, IEC 60896-11/22 and other relevant standards). A BLU device (in a BLU-BXL system) ensures control of the discharge process. BXL simulates a constant resistance load during the discharge test – its load parameter (resistance) can be set prior to the discharge test. The BXL provides flexibility in selecting its load capacities – several resistances can be set for most of the nominal battery voltages.

Battery Extra Load Units – Features

Used in a system with BLU device to increase load capacity
Lightweight – starting from 12,5 kg
Discharge power up to 32,4 kW
Voltage measurement range: up to 500 V DC
Discharge current – up to 330 A DC
Measurement resolution – current 1 A, voltage 1 V
Discharge process controlled by BLU device
Connects to battery terminals and parallel to BLU device

Description

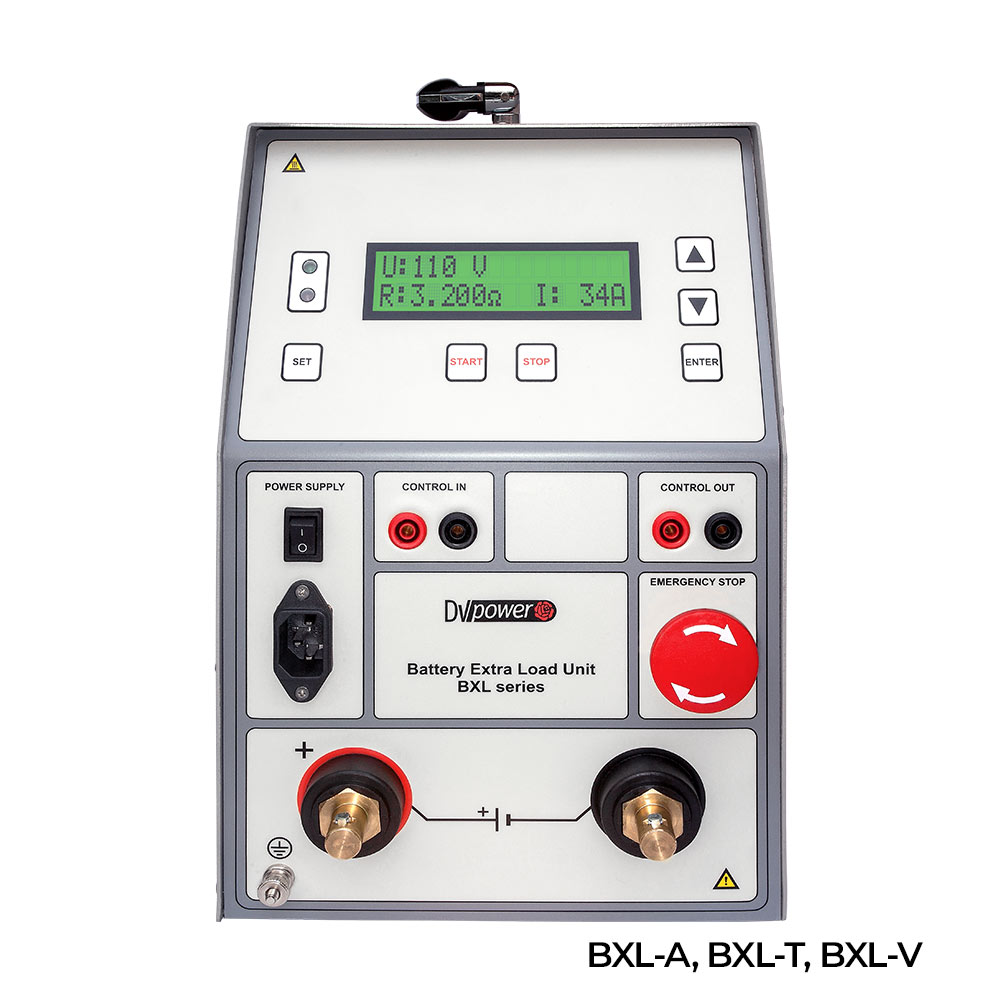

Battery Extra Load Units | BXL Series

Technical Data

Mains Power Supply

Connection according to IEC/EN60320-1; C320

Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase

Input power: 200 VA

Dimensions and Weights

Model

Dimensions

BXL-A

560 x 221 x 355 mm

BXL-T

560 x 221 x 355 mm

BXL-V

730 x 221 x 355 mm

Maximum discharge current & power

Model

Current

BXL-A

250 A

BXL-T

330 A

BXL-V

165 A

Internal voltage measurement

Model

Range

BXL-A

0 – 300 V DC

BXL-T

0 – 75 V DC

BXL-V

0 – 500 V DC

Typical accuracy: ± 0,5% of reading ± 1 V

Internal current measurement

Model

Range

BXL-A

0 – 300 A DC

BXL-T

0 – 450 A DC

BXL-V

0 – 250 A DC

Typical accuracy: ± 0,5% of reading ± 1 A

Warranty

3 years + additional 1 (one) year upon registration on DV Power official website (www.dv-power.com)

Display

LCD screen 16 characters by 2 lines

LCD display with backlight, visible in bright sunlight

Environment conditions

Operating temperature:

-20 °C to +55 °C

Storage & Transportation temperature:

-40 °C to +70 °C

Relative humidity

0 – 95%, non-condensing

Pollution degree:

Protection

Emergency Stop button

Overheat and Overvoltage protection

Applicable Standards (for BLU-BXL system)

EEE 450-2010, IEEE 1188-2005, IEEE 1106-2015, IEC 60896-11, IEC 60896-22 and other relevant standards

Installation/overvoltage: category II

Pollution: degree 2

Safety

Low Voltage Directive: Directive 2014/35/EU (CE conform) Applicable standards, for a class I instrument, pollution degree 2, Installation category II: IEC EN 61010-1

Electromagnetic Compatibility:

Directive 2014/30/EU (CE conform) _Applicable standard: EN 61326-1

CAN/CSA-C22.2 No. 61010-1

Battery Extra Load Units | BXL Series

Brand

DV Power

IBEKO Power AB, with headquarters in Stockholm (Sweden) and best known through the brand ”DV Power”, has developed radically light and ingenious test solutions for transformers, circuit breakers, and batteries. Founded by a group of engineers with deep knowledge and experience in the power electronics technology area. Sold worldwide – in over 100 countries. Their success is solely based on extensive research, development, and fast commercial application.
