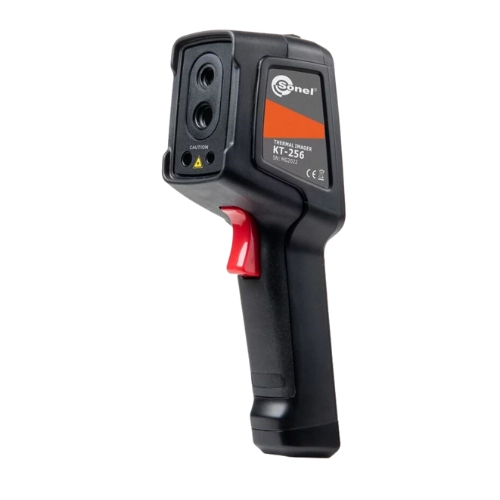

Basic Diagnostics Thermal Imaging Camera | KT-256

Basic Diagnostics Thermal Imaging Camera KT-256
Basic Diagnostics Thermal Imaging Camera KT-256
Basic Diagnostics Thermal Imaging Camera KT-256

Basic Diagnostics Thermal Imaging Camera | KT-256

R22,525.00 ex vat

Basic Diagnostics Thermal Imaging Camera – Overview

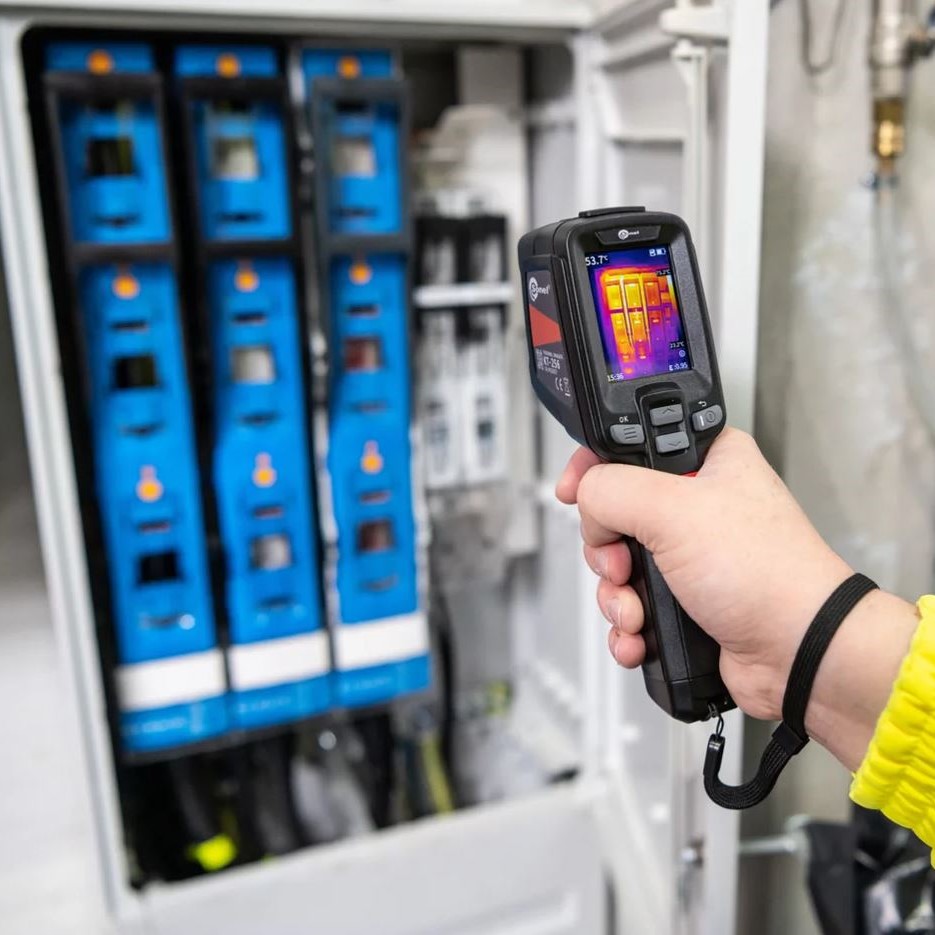

Cost-effective, practical, handy, and powerful.  Used when the temperature of objects is important and may affect the operation of the equipment. Applications include power engineering, construction, industry and HVAC.

Basic Diagnostics Thermal Imaging Camera – Features

  • measuring range -20°C…550°C
  • quick start
  • fast temperature measurement
  • automatic signalling of exceeded alarm threshold
  • saving IR images to SD card
  • built-in Li-Ion battery with 5-hour working time
  • interfaces: USB type C, SD slot
  • can be set up on a tripod



1 in stock (can be backordered)

SKU: WMGBKT256 Category: Tags: , , ,
Sonel Logo Square

Description

Basic Diagnostics Thermal Imaging Camera | KT-256

Parameter Description
Detector resolution 256 x 192 / 12 μm
Detector 7.5~14 μm
Frame rate 25 Hz
Sensitivity 45 mK
Lens (field of vision / focal distance) 56° x 48° / 3.2 mm
Spatial resolution (IFOV) 3.75 mrad
Display 2.4″ 240 x 320 px LCD
Image mode IR / Visual / Infrafusion MIF / PiP
Temperature range Range 1: -20°C…+150°C | -20°F…+302°F
Range 2: 100°C…+550°C | 212°F…1022°F
Accuracy ±2°C | ±4°F
or ±2% of reading
(for ambient temperature 15°C…30°C, object temp. ≥0°C)
Image analysis mode Point. 3 areas. Temperature indication: min, max. Temp. alarm
Palettes 6
Emissivity Selectable from 0.01 to 1.00 or from the list
Measurement adjustment Adjustable distance, ambient temperature (reflected)
Image file format JPG
Built-in features Visual camera 5 MPix, LED flashlight, laser pointer
Interfaces microSD card slot (max. 32 GB), USB type C, tripod
Power supply Li-Ion battery (operating time >16 hours), built-in charger (charging time)

Basic Diagnostics Thermal Imaging Camera | KT-256

Brand

Sonel

Sonel Details.
Sonel Logo Square
