Paper Industry

Air Velocity Transmitter | FTS34/35
Price range: R9,273.00 through R10,859.00 ex vat
Air Velocity Transmitter - Overview

The Air Velocity Transmitter is a Thermal Mass Flow Sensor / Transmitter using the mass flow measuring principle. This transmitter is able to switch between measuring units [m/s], [ft/s], [km/h], [mph], [knot], and is available in either duct or remote type installation. The Air Velocity Transmitter uses stable electronics with good accuracy. It has solid performance and low flow sensitivity. It is suitable for use in industrial processes to monitor gas and flow and is widely used in the Building, Pharmaceutical, Paper, and Biotech industries.

Air Velocity Transmitter Features
- Linear calibration function
- Option RS-485 Communication Interface, Modbus RTU protocol
- Configuration measuring rage, analog output, station number by dip switch & RS-485
- Switch for physical quantity： [mph], [knot], [m/s], [ft/s], [km/h],
- Off SET function by bottom or RS-485
- Programmable software: DATA LOGGER, record, and chart analysis
Select options

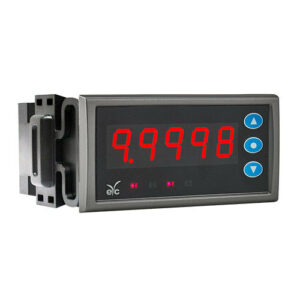

Multifunction Signal Display Unit | DPM02
Price range: R1,975.00 through R4,328.00 ex vat
Multifunction Signal Display Unit - Overview

The Multifunction Display Unit makes operator reading of an instrument signal easy. This unit displays your readings clearly to ensure better safety and communication in production environments. This display unit is designed to read analog inputs in either DC current / DC voltage and has a 5 digit display.

Multifunction Signal Display Unit - Features
- Input type : DC current / DC voltage
- Output type: Analog output / Relay / RS-485
- Extraction of square root (Input : voltage, current)
- Optional RS-485 communication function : 10-point linear calibration
- Signal isolation, noise prevention and filtering function
- Power supply : AC 85 .. 253 V, 50 ... 60 Hz
- Auxiliary supply output (DC 18 ... 26 V / 50 mA ) : Use for 2-wire & 3-wire transmitter
- User-friendly, interactive operation interface
- Panel installation
- High light red LED display panel
- 14.1 mm character height
- 5 digits display (-9.9.9.9 ... +9.9.9.9.9)
- 7-segment display
- Programmable
- High safety & stability
- Fire-proof case, moisture-proof cover
- Plug-in installation designed for easy maintenance
https://www.youtube.com/watch?v=6ubhwLNTDmo

Select options
HVAC Humidity and Temperature Transmitter | HygroFlex HF5
Price range: R11,010.00 through R16,551.00 ex vat
HVAC Humidity and Temperature Transmitter - Overview

The HF5-series is a measurement transmitter for humidity, temperature and dewpoint. It is compatible with the HygroClip2 series probes which integrate AirChip3000 technology. When combined with a HC2A-S advanced probe, it provides superb precision and state-of-the-art functionality, taking humidity and temperature measurement to a whole new level of accuracy < 0.8 %rh and < 0.1 K at 10...30 °C. Applications include HVAC, heating, ventilation, air conditioning, food industry, pharmaceutical industry, printing and paper industries.

HVAC Humidity and Temperature Transmitter - Features
- Relative humidity and temperature measurement
- Dew Point and other psychrometric calculations
- Interchangeable probe for easy maintenance
- Low voltage and mains versions
- Freely scalable analogue signals
- Various digital outputs are available
- Available with metal housing
- Robust, industrial-quality housing
- Wall or duct mounting
Select options
Paper Industry Humidity Measuring | HYGROPALM HP-GTS
R33,254.00 ex vat
Paper Industry Humidity Measuring - Overview

The HP-GTS from Rotronic is a tried and tested instrument for the measurement of relative humidity and temperature in stacks of paper, cardboard and textile. Ideal for paper and textile technicians as well as printers. Graphic display of measured values with an easy-to-adjust visual and audible alarm. 64,000 data memory with programmable logging interval.

Paper Industry Humidity Measuring - Features
- Measure relative humidity and temperature in paper stacks
- Robust aluminium sword probe
- Range of applications of instrument and probe: -10…60 °C / 0…100 %rh (non-condensing)
- Graphic Display of measure values
- Easily adjustable visual and audible alarm
- Accuracy at 23°C: ±2 %RH, ±0.3 °K
- Compatible with HW4 software > V3.9 (free download at rotronic.com)
Add to basket
Sword Hand-held Paper Humidity Probe | HC2-HS28
R28,542.00 ex vat
Sword Hand-held Paper Humidity Probe - Overview

This sword-like, hand-held probe measures the humidity of a stack or rolls in the paper or textile industries. Highly accurate. They are available in 280 mm or 420 mm.

Sword Hand-held Paper Humidity Probe - Features
- Range of application: -40…85 °C / 0…100 %RH
- Digital interface (UART) and scalable analogue outputs, 0…1 V
- Accuracy: ±0.8 %RH, ±0.1 K, at 10...30 °C
- Standard output scaling: 0…1 V = -40…60 °C / 0…100 %RH
- Adjusted at 23 °C and 10, 35, 80 %RH
Add to basket
Dew Point Transducer 4-20mA | THS88max
R17,121.00 ex vat
Dew Point Transducer 4-20mA - Overview

Many industries need to keep an eye on the amount of condensation produced as moisture can break machinery, clog pipes, and cause contamination of the product. Maintaining the dew point of your gas or compressed air system ensures a longer life for your equipment and reduces maintenance costs. It is therefore essential that the dew point level of your installation is constantly monitored. For accurate dew point measurement, faster response times, anti-interference hardware, improved stability and temperature compensation.

Dew Point Transducer 4-20mA - Features
- Dew point calibration
- High accuracy
- 4 ... 20 mA and RS-485 output
- Increased dew point sensitivity
- Quick response
- Hysteresis compensation
- Moisture resistant
- EMC anti-interference
- Anti-condensation
- Low-temperature influence
- Long-term stability
- Three thread (1/2″PT, 1/2″G, and 5/8″UNF) mode can be selected
Select options
Digital Differential Pressure Transmitter | P064
Price range: R14,683.00 through R17,001.00 ex vat
Digital Differential Pressure Transmitter - Overview

The P064 digital differential pressure / pressure transmitter is a high-performance pressure transmitter incorporating advanced monocrystalline silicon pressure sensor technology. This product uses a diaphragm that has double overpressure protection and also has an internal circuit with anti-surge protection. It can accurately measure differential pressure, flow, vacuum, liquid level, and density.

Digital Differential Pressure Transmitter - Features
- Advanced monocrystalline silicon differential pressure sensor
- Wide range covering：0.1 ... 25 bar
- Measures liquid, gas, steam, liquid level
- 2-wire, 4 ... 20 mA+HART® protocol digital communication
- LCD, backlit display, remote transmission and local zero, span adjustment
- High accuracy, good stability
- Stainless steel housing
- IP rating：IP65
- Strong resistance to frequency conversion interference
- High static pressure, high overpressure protection
- Diaphragm with patented double overpressure protection design
- Lightning protection circuit design
Select options
Laboratory Water Activity Meter | HygroLab
Price range: R153,054.00 through R224,619.00 ex vat
Laboratory Water Activity Meter - Overview

The Rotronic HygroLab is an innovative high-end laboratory water activity analyser for measuring up to 4 probes. Simultaneous or asynchronous measurement with the tried-and-tested AW Quick measuring function for pharmaceutical products, tobacco, coffee, food and many more. The Water Activity Meter has a modern 7-inch touch screen interface for clear and simple measurement of water activity. The water activity meter can also be connected to the internet for remote control via a PC or tablet. Measurements can thus be observed and reports downloaded from anywhere, at any time.

Laboratory Water Activity Meter HygroLab - Features

Automatically generated measurement report after every measurement

4-channel benchtop display unit for measurement of water activity, relative humidity and temperature

AW Quick function for fast measurement results (typically 4-5 minutes)

Updates with functional enhancements

4 USB ports (e.g. for mouse and keyboard)

Remote access (by PC or tablet)

High accuracy of ±0.008 Aw at 23 °C

Performs up to 4 measurements simultaneously or asynchronously

Quick and easy operation

Extended operation with mouse and keyboard possible

Measurement of temperature, water activity and relative humidity

Customised set-point for fast and simple output of results

FDA conformity and the possibility to calibrate probes (coming soon via software update)

https://www.youtube.com/watch?v=G-QIzBnFypM
Select options
Standard Vortex Flow Meter | QT LUGB

Standard Vortex Flow Meter - Overview

The Standard Vortex Flow Meter is robust and measures the flow volume of non-conductive liquids, gases, and saturated and superheated steam. The vortex flow meter can add temperature and pressure compensation. It has an embedded sensor, with 4 piezo-electric crystals encapsulated inside the sensor, which is patented. There are no moving parts, and no abrasion, and the non-wearing parts inside the vortex flow meter sensor are in a fully welded SS304 body (SS316 selectable). It eliminates drift & vibration influence well compared to other meters. It can also work as a BTU meter to measure steam or hot water energy. It has a wide range of applications.

Standard Vortex Flow Meter - Features
- Suitable Mediums: Liquid, Gas, Steam
- Medium Temp: -40℃~+200℃; -40℃~+250℃; 40℃~+350℃
- Accuracy: 1.0% (Flange), 1.5% (Insertion)
- Material: SS304 (Standard), SS316 (Optional)
- Nominal Pressure: 1.6MPa;2.5MPa;4.0MPa (Other pressure can be customised)
Read more
Industrial Dew Point Transmitter | THM88max
Price range: R11,712.00 through R14,065.00 ex vat
Industrial Dew Point Transmitter - Overview

Dew Point Transmitters monitor the dew point of your gas or compressed air system ensuring a longer life for your equipment & reduced maintenance costs. This dew point transmitter has a quicker response to low humidity and has a temperature compensation mechanism to reduce the influence of ambient temperature on the dew point value. Its large digital display is 330° rotatable for convenient and easy monitoring. It displays in real-time, and the on-screen buttons adjust the dew point offset. Duct type installation.

Industrial Dew Point Transmitter - Features
- Large real-time digital display
- 330° rotatable display
- On-screen buttons adjust dew point offset
- Faster response to low humidity
- Temperature compensation mechanism
Select options
Thermal Mass Flow Transmitter | FTM06D

Thermal Mass Flow Transmitter - Overview

The FTM06D Thermal Mass Flow Transmitter uses thermodynamic principles to measure air volume and air velocity. There are two temperature sensors inside the probe: one for temperature measurement, and one for temperature measurement after heating. Temperature differences between the two sensors are used to calculate measuring flow rate. This transmitter has all-metal housing and is suitable for a variety of pipe diameters. Widely used in industries like Electronics, Compressed Air, Papermaking, Food, Pharmaceuticals, Biotech, Hospitals, and other factories.

Thermal Mass Flow Transmitter - Features
- Thermal mass flow sensor
- Can measure air volume and air velocity
- Analog / RS-485 / Impulse output
- Accurate measurement
- Using constant temperature anemometer(CTA) technology, good sensitivity
- Unit setting：[L/min], [°C], [°F], [m/s], [ft/s], [Nm³/h]
- Stainless steel housing, suited to a variety of harsh environments
- Built-in temperature compensation
https://www.youtube.com/watch?v=9vIttv1x0eo&t=8s

Read more
