Tag: Liquid Flow

Liquid Flow

  • Flow Totalizer DPM04

    Flow Totalizer | DPM04

     R5,870.00 ex vat

    Flow Totalizer - Overview

    The FlowTotalizer is a multifunctional flow monitoring instrument. This product can be used in connection with air or liquid flow transmitters. It can display instantaneous flow measured and calculate cumulative flow over time. The DPM04 can accept common output signals and features RS-485 communication, relay control, and signal retransmission functions. Applications include: monitoring instantaneous flow rates to ensure production process stability; displaying cumulative flow over specific periods for energy management, billing, and cost analysis; and process control or instant alerts to prevent disruptions or equipment damage.

    Flow Totalizer - Features

    • 2" LCD screen for clear data display
    • Instantaneous and cumulative flow monitoring
    • Multiple signal options for flexibility
    • RS-485 communication for digital integration
    • Relay output for process control

    https://www.youtube.com/watch?v=2ECrUqmc0uI&t=1s



    Select options

  • Averaging Pitot Tube Flow Sensor Platon FPP

    Averaging Pitot Tube Flow Sensor | Platon FPP

    Averaging Pitot Tube Flow Sensor - Overview

    This high accuracy, wide rangeability sensor is an Averaging Pitot Tube flow sensor for use on pipes, ducts or chimneys. Differential pressure created across the Flo-Bar has the standard square root relationship to flow rate, making a simple, removable sensor for installation or retrofit on flowlines of any size. The standard integral manifold allows simple process isolation and easy installation of a DP measurement cell. Suitable for use in liquids, gases or steam.

    Averaging Pitot Tube Flow Sensor - Features

    • Stainless steel (alternative material requirements readily accommodated)
    • Available for most line sizes, even above 3 metres in diameter
    • Flanged or screwed fittings
    • ±1% Accuracy with standard square root flow output
    • Full electron beam welded construction
    • Unique profile sensor with flow averaging
    • Integral 3-valve manifold
    • Simple direct mounting of DP transmitter if required
    • Plain head and remote manifolds available

    Read more

  • Ball Flow Indicator DS1921

    Ball Flow Indicator | DS1921

    Ball Flow Indicator - Overview

    This mechanical flow indicator is suitable for gases and liquids. The ball is lifted by the flow into the glass dome, providing an immediate moving indication of flow. When no flow is apparent, the ball sits in the valve seat below the glass dome. This product is suitable for horizontal pipelines only.

    Ball Flow Indicator - Features

    • Clear indication that flow is present
    • High temperature/pressure capability
    • Excellent chemical compatibility
    • Suitable for use on condensate, liquids and gases
    • Unrivalled flow and pressure drop performance

    Read more

  • Explosion Proof Flow Switch DS1432

    Explosion Proof Flow Switch | DS1432

    Explosion Proof Flow Switch - Overview

    This paddle-operated flow switch is suitable for ½" to 2" pipelines. Magnetic coupling between the spring-loaded vane and the microswitch gives a glandless construction. Applications include gases or liquids up to 2,000 psi. Models are available with Stainless Steel or Brass process parts.

    Explosion Proof Flow Switch - Features

    • Suitable for gases and liquids up to 2,000 psi
    • Leak-proof lower body machined from bar stock
    • Weatherproof
    • Low flow model offers field adjustable set point
    • Easy installation
    • ATEX approved





    Read more

  • Gapmeter Type SGUV Platon DS1160

    Gapmeter Type SGUV | Platon DS1160

    Gapmeter Type SGUV - Overview

    The type SGUV and type SGUL are direct reading Flowmeters for clean liquids and gases in pipe sizes larger than 30mm. They provide a robust and cost effective method of flow measurement. The indicator housing can be mounted locally to the pipe or remotely by the use of flexible impulse tubing. The instrument is a combination of two measuring principles. It is essentially a pressure differential device consisting primarily of an accurately machined orifice plate located in the main pipework. This produces a pressure drop proportional to the square of the flow rate. A secondary orifice restrictor located in the by-pass flowmeter is accurately calibrated to produce a by-pass flow that can be measured by the glass VA type flowmeter, scaled in terms of the main pipe flow. The metering elements are manufactured to a high standard of interchangeability with boldly marked indicating scales and dynamically balanced floats.

    Gapmeter Type SGUV - Features

    • Easy of installation
    • Available for various flanges
    • Instantaneous reading
    • Compact and rugged construction
    • Optional flow alarm
    • Maintenance possible under flow conditions
    • Interchangeable components provide low cost unit
    • Only one moving part
    • Calibration for wide range of gases and liquids

    Read more

  • Glass Tube Variable Area Flowmeters DS3601-100mm

    Glass Tube Variable Area Flowmeters | DS3601-100mm

    Glass Tube Variable Area Flowmeters -  Overview

    This Glass Tube Flowmeter uses a 100mm scale length borosilicate glass tube and a float. As it is based on the variable area (VA) principle, these flowmeters provide clear, simple and reliable operation. They are individually scaled and calibrated according to the customer's requirements. The fluid or gas flows vertically upwards through the tapered glass tube, causing the float to rise to an equilibrium position. The flow rate is measured by reading the top edge of the float against the scaled tube. Suitable for use with gasses or water (eg. cracked ammonia, helium, hydrogen, methane, nitrogen, oxygen, propane).

    Glass Tube Variable Area Flowmeters - Features

    • Instantaneous response
    • Simple and reliable operation
    • Low line pressure loss
    • High resolution
    • Custom scales available on request

    Read more

  • Horizontal Display Metal Tube Rotameter | QTLZ Table 1: Horizontal Display Metal Tube Rotameter Data Sheet Measuring range Water (20℃)                  16~150000 l/h. Air (0.1013MPa 20℃)       0.5~4000 m3/h.  Range ratio 10:1 (Special type 20:1).  Accuracy class 2.5 (Special type 1.5% or 1.0%).  Working pressure DN15~DN50 PN16 (Special type 2.5MPa). DN80~DN150 PN10 (Special type 1.6MPa). Pressure rating of jacket 1.6MPa.  Medium temperature Normalised type -80℃~+220℃. High-temperature type 300℃. Lined with FEP type ≤85℃.  Ambient temperature -40℃~+120℃ (Remote display without LCD≤85℃). (Remote display with LCD≤70℃).  Dielectric viscosity 1/4” NPT, 3/8” NPT 1/2” NPT≤5mPa.s 3/4” NPT,1” NPT ≤250mPa.s  Output Standard signal: two-wire system 4 ~ 20mA (with HART communication) Standard signal: three-wire system 0 ~ 10mA Alarm signal:1.Two-way relay output 2. One-way or two-approach switches Pulse signal output: 0-1KHz isolated output  Process connection Standard type:24VDC±20% AC type:220VAC(85~265VAC) (optional)  Connection mode Flange Thread Tri-clamp  Levels of protection IP65/IP67.  Ex-mark Intrinsically safe: ExiaIICT3~6.    Exd type: ExdIICT4~6. Table 2: Horizontal Display Metal Tube Rotameter Flow Range Calibre (mm) Work number Flow range Pressure loss kpa Water L/h Air m3/h Water Kpa Air Normal type Anti-corrosion type Normal type Anti-corrosion type Normal type Anti-corrosion type 15 1A 2.5~25 -- 0.07~0.7 6.5 - 7.1 1B 4.0~40 2.5~25 0.11~1.1 6.5 5.5 7.2 1C 6.3~63 4.0~40 0.18~1.8 6.6 5.5 7.3 1D 10~100 6.3~63 0.28~2.8 6.6 5.6 7.5 1E 16~160 10~100 0.48~4.8 6.8 5.6 8.0 1F 25~250 16~160 0.7~7.0 7.0 5.8 10.8 1G 40~400 25~250 1.0~10 8.6 6.1 10.0 1H 63~630 40~400 1.6~16 11.1 7.3 14.0 25 2A 100~1000 63~630 3~30 7.0 5.9 7.7 2B 160~1600 100~1000 4.5~45 8.0 6.0 8.8 2C 250~2500 160~1600 7~70 10.8 6.8 12.0 2D 400~4000 250~2500 11~110 15.8 9.2 19.0 40 4A 500~5000 300~3000 12~120 10.8 8.6 9.8 4B 600~6000 350~3500 16~160 12.6 10.4 16.5 50 5A 630~6300 400~4000 18~180 8.1 6.8 8.6 5B 1000~10000 630~6300 25~250 11.0 9.4 10.4 5C 1600~16000 1000~10000 40~400 17.0 14.5 15.5 80 8A 2500~25000 1600~16000 60~600 8.1 6.9 12.9 8B 4000~40000 2500~25000 80~800 9.5 8.0 18.5 100 10A 6300~63000 4000~40000 100~1000 15.0 8.5 19.2 150 15A 20000~100000 -- 600~3000 19.2 -- 20.3 Table 3: Horizontal Display Metal Tube Rotameter Model Selection QTLZ X X X X X X X X X Indicator Code Local indicator Z LCD indicator with output D Nominal diameter Code DN15 -15 DN20 -20 DN25 -25 DN40 -40 DN50 -50 DN80 -80 DN100 -100 DN150 -150 Structure Code Bottom-top / Left-right (horizontal) H1 Right-left (horizontal) H2 Side-side AA Bottom -side LA Thread connection S Tri-clamp M Body material Code 304SS R4 316LSS R6L Hastelloy C Hc4 Titanium Ti Liner F46(PTFE) F Monel M Indicator type Code Iinear indicator(pointer indication) M7 Nonlinear indicator(LCD Display) M9 Combination function(only for LCD display) Code 24VDC with 4~20mA output S 24VDC with HART communication Z Battery power D Additional function Code Measuring tube with thermal preservation/heat insulation jacket T Measure medium temperature higher than 120.C HT Ex-proof: Code With W Without N Alarm Code One alarm K1 Two alarm K2 None N Horizontal Display Metal Tube Rotameter QTLZ

    Horizontal Display Metal Tube Rotameter | QTLZ

    Horizontal Display Metal Tube Rotameter - Overview

    This Variable Area Rotameter is suitable for single-phase liquids or gas flowing in small/medium pipe diameters. It can be used with corrosive, toxic and explosive mediums. It has good stability and reliability. It has an easy-to-read LCD digital display screen and is easy to install. Applications include the Chemical, Pharmaceutical, Petrochemical, Food, and Metallurgical Industries.

    Horizontal Display Metal Tube Rotameter - Features

    • Horizontal Installation, easy installation and observation
    • Good stability and reliability
    • Suitable for single-phase liquid/gas with small/medium pipe diameter
    • Can be used for corrosive, toxic and explosive mediums
    • Two-wire 4~20mADC signal output
    • Easy-to-read LCD digital display
    • Range ratio: 10:1 (Special type 20:1)
    • Accuracy class: 2.5 (Special type 1.5% or 1.0%)
    • Medium temperature: Normalized type -80℃~+220℃
    • Ambient temperature: -40℃~+120℃(Remote display without LCD≤85℃)
    • Working pressure: DN15~DN50 PN16 (Special type 2.5MPa)

    https://youtu.be/npxWCLED5RE



    Read more

  • In-Line Pitot Tube Platon DS1161

    In-Line Pitot Tube | Platon DS1161

    In-Line Pitot Tube - Overview

    The In-Line Pitot Tube "Flo-bar" is a Stainless Steel pipe section with welded-in pitot probes. It is available for ½" to 2" pipes. They are supplied fitted with ¼" ball valves to provide process isolation. Suitable for liquids and gases.

    In-Line Pitot Tube - Features

    • Flow sensors for liquids or gases
    • ±1% of the actual flow rate
    • Flow averaging
    • Internal isolation ball valve
    • No power supply required
    • Full electron beam welded construction



    Read more

  • Metal Tube Flowmeters SC250

    Metal Tube Flowmeters | SC250

    Metal Tube Flowmeters - Overview

    This variable area, high-performance measurement flowmeter, is suitable for use in extreme working conditions. Can be used in liquid or gas flow measurement. Applications include water treatment plants, pulp & paper and food industries; pharmaceutical, chemical and petrochemical industries; power plants and nuclear-generating plants; heating and cooling circuits; saturated steam circuits; oven treatments and control of gas burners.

    Metal Tube Flowmeters - Features

    • Metallic tube with a robust construction
    • Indication using magnetic coupling
    • High-performance measurement in extreme working conditions
    • High resistance to corrosion
    • Low-pressure drop
    • Damping mechanism to avoid float bounces in gas and steam applications

    Read more

  • Metal Tube Purge Flowmeter Platon DS1210

    Metal Tube Purge Flowmeter | Platon DS1210

    Metal Tube Purge Flowmeter - Overview

    Ideal for liquid or gas flow monitoring on small lines in purging, mixing or sampling systems. It uses a stainless steel tapered tube to create a variable area flowmeter. The magnetically coupled pointer shows flow rate on an external scale. Metal Tube Purge Flowmeters are used where the higher integrity offered by a metal flow tube is important, or where conventional glass flow tubes are not allowed in the process. The meters are available with inline (API) or rear-facing (APT) screwed connections. For fine flow rate adjustment, the APV model has an integral multi-turn needle valve. Scales are individually produced to show the actual fluid flow for the process fluids and conditions relevant. The units are suitable for flush mounting in a control panel, using a simple mounting kit. Standard units require no electrical connection.

    Metal Tube Purge Flowmeter - Features

    • For high integrity of high-pressure duty
    • Standard units require no electrical connection
    • Suitable for flush panel mounting
    • Scaled for specific process conditions



    Read more

  • Standard Vortex Flow Meter QT LUGB

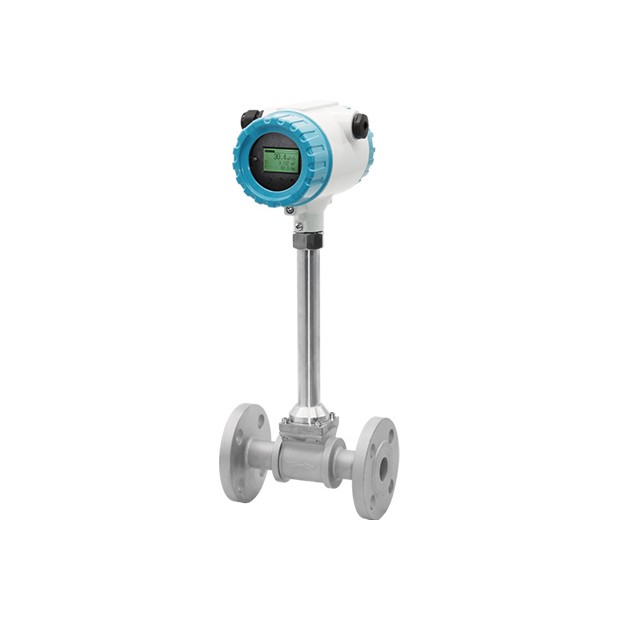

    Standard Vortex Flow Meter | QT LUGB

    Standard Vortex Flow Meter - Overview

    The Standard Vortex Flow Meter is robust and measures the flow volume of non-conductive liquids, gases, and saturated and superheated steam. The vortex flow meter can add temperature and pressure compensation. It has an embedded sensor, with 4 piezo-electric crystals encapsulated inside the sensor, which is patented. There are no moving parts, and no abrasion, and the non-wearing parts inside the vortex flow meter sensor are in a fully welded SS304 body (SS316 selectable). It eliminates drift & vibration influence well compared to other meters. It can also work as a BTU meter to measure steam or hot water energy. It has a wide range of applications.

    Standard Vortex Flow Meter - Features

    • Suitable Mediums: Liquid, Gas, Steam
    • Medium Temp: -40℃~+200℃; -40℃~+250℃; 40℃~+350℃
    • Accuracy: 1.0% (Flange), 1.5% (Insertion)
    • Material: SS304 (Standard), SS316 (Optional)
    • Nominal Pressure: 1.6MPa;2.5MPa;4.0MPa (Other pressure can be customised)

    Read more

  •  1
    Platon Variable Area Flow Meters Glass Tube DS1115

    Platon Variable Area Flow Meters Glass Tube | DS1115

    Platon Variable Area Flow Meters Glass Tube - Overview

    Variable area flowmeters are produced with glass flow tubes in various lengths, for gas or liquid flow measurement. Glass tubes have higher pressure and temperature range than plastic tubes. They are easy to use and come in a variety of sizes. Suitable for use in medical (anaesthetic), industrial, and laboratory applications. The NGX series frames have flow tubes with measurements in 100mm long scales, whereas the smaller LGX frames have flow tubes with measurements in 30mm scales. These are easy to install, as they are usually surface mounted on a vertical panel.

    Platon Variable Area Flow Meters Glass Tube - Features

    • Improved industrialised construction
    • Easy to use
    • High visibility scale
    • Rear ‘blow out’ safety vent
    • Ergonomic design
    • Operator confidence from float rotation
    • Instantaneous response
    • Airflow range 5 mL/min to 150 L/min
    • Customized scales
    • UV stabilized rigid safety cover
    • Glass tube removal without tools
    • ATEX Infra-red alarm option
    • Range of accessories
    • Accuracy up to ±1.25% FSD
    • UKAS calibration optional

    Read more
