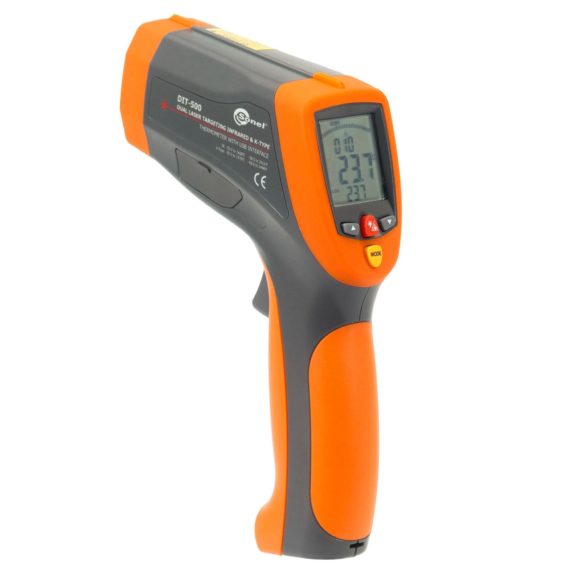

Pyrometer Infrared Thermometer | DIT-500

Pyrometer Infrared Thermometer | DIT-500

R8,950.00 ex vat

Pyrometer Infrared Thermometer – Overview

Professional and compact infrared thermometers are a solution for problems where specific thermal conditions are required. The intuitive one-handed operation of the device and the ergonomically designed gun-type housing allow for trouble-free daily work. Infrared is used to determine the surface temperature of the tested object. The optical system of the instrument detects the radiation that is emitted, reflected and transmitted, then gathers it and focuses it in the detector. The electronic system converts the optical data into a temperature value. To increase the precision of measurement and facilitate targeting, the device is equipped with a laser pointer.

Pyrometer Infrared Thermometer – Features

  • Precise
  • Non-contact temperature measurement
  • Type K temperature measurement
  • Ergonomic gun-type housing
  • Resolution 0.1°F (0.1°C)
  • Emissivity digitally adjustable from 0.10 to 1.00
  • °C/°F switch
  • Automatic range selection
  • High and low alarm
  • DATA HOLD function for holding measured values
  • Temp display max, min, average and difference
  • Trigger lock
  • AUTO-OFF function
  • Rapid reaction to temperature changes (below 150 ms)
  • Double laser sight (determination of the measurement area)
  • Data memory (LOG) for 100 measurements
  • Transmission of current readings to computer via USB cable
  • Backlit LCD display

Description

Pyrometer Infrared Thermometer | DIT-500

IR temperature range

IR temperature
range
D:S Resolution Accuracy
-50…999,9°C
-58…999,9°F
50:1 0,1°C
0,1°F
-50…20°C
-58…68°F
±2,5°C
±4,5°F
1000…1600°C
1000…2912°F
1°C
1°F
20…400°C
68…752°F
±(1,0% m.v. + 1°C)
±(1,0% m.v. + 1,8°F)
400…800°C
752…1472°F
±(1,5% m.v. + 2°C)
±(1,5% m.v. + 3,6°F)
800…1600°C
1472…2912°F
±2,5% m.v.

Type K temperature range

Type K
temperature range
Resolution Accuracy
-50…999,9°C
-58…999,9°F
0,1°C
0,1°F
±(1,5% m.v. + 3°C)
±(1,5% m.v. + 5°F)
1000…1370°C
1000…2498°F
1°C
1°F
±(1,5% m.v. + 2°C)
±(1,5% m.v. + 3,6°F)
D:S – Distance (D) to Spot Size (S)
“m.v.”- measured value
Rated operational conditions:
  • operating temperature: 0…+50°C
  • storage temperature: -20…+60°C
  • humidity: 10…90%
Other technical data:
  • display LCD: segment with a backlight
  • spectral response: 8~14μm
  • emissivity: digitally adjustable from 0,10 to 1,0
  • polarity: automatic, (-) sign for negative polarity
  • diode laser: output <1 mW, wave length 630~670 nm, class 2 laser product
  • power supply: 9 V battery, NEDA 1604 A or IEC 6LR61
  • over range indication: LCD will show “—-“
  • response time: 150 ms
  • weight: 350 g
  • dimensions: 230 x 155 x 54 mm

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.

Pyrometer Infrared Thermometer | DIT-500

Brand

Sonel

Sonel Details.
Sonel Logo Square
