Wire and Pipe Locator – LKZ-720

Wire and Pipe Locator – LKZ-720

Call for price

Safety Rating Cat III at 600V labelIngress protection IP67 labelIngress protection IP40 labelFlashlight Label

Overview of LKZ-720 Wire and Pipe Locator

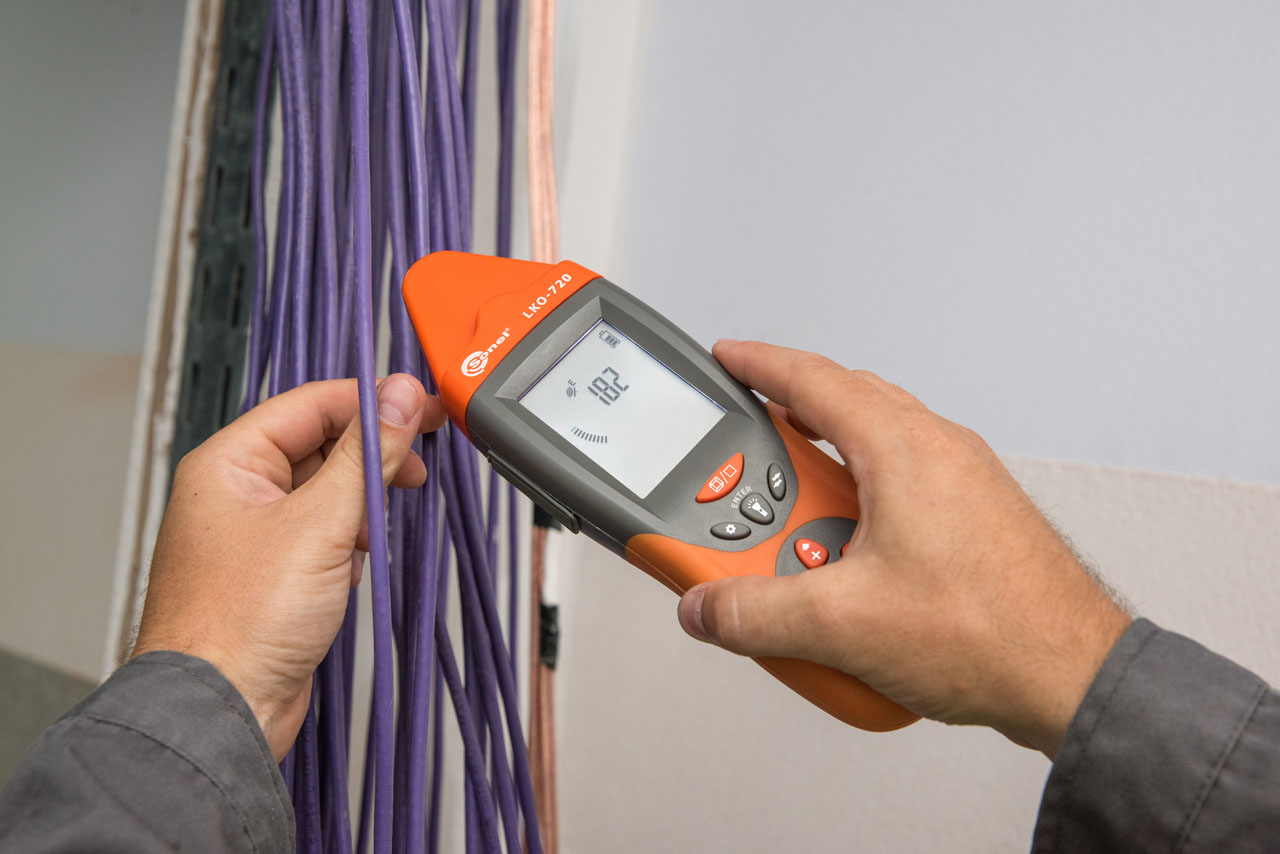

Detect and trace cables in ceilings, walls and floors with the LKO-720 specially designed 3D antenna for precise wire tracing and determine of direction of wires in concrete up to 5 cm becomes a breeze.

Locating power points and switches in buildings pulse generated by a LKN-720 transmitter with a specific frequency allows to
locate and identify sockets and switches in live or dead (no current) circuits.

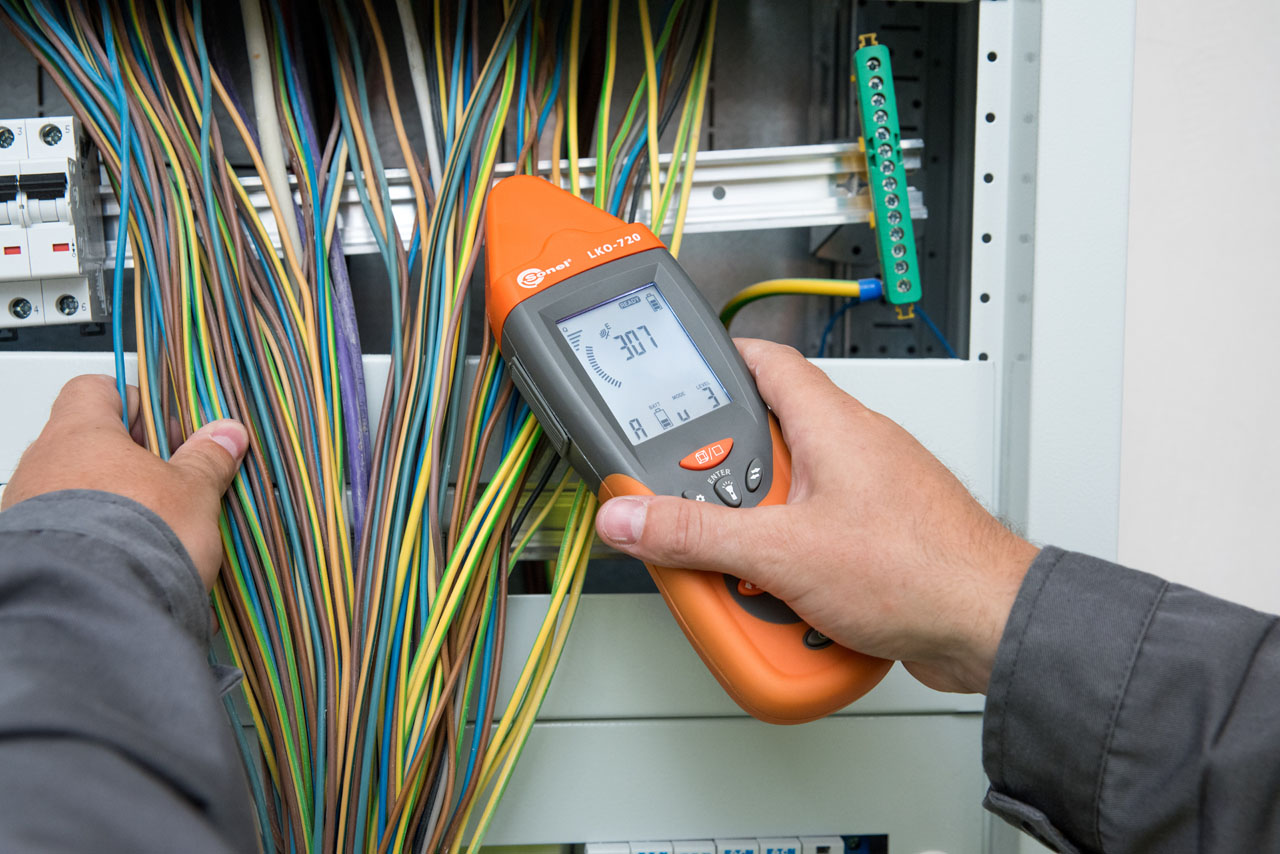

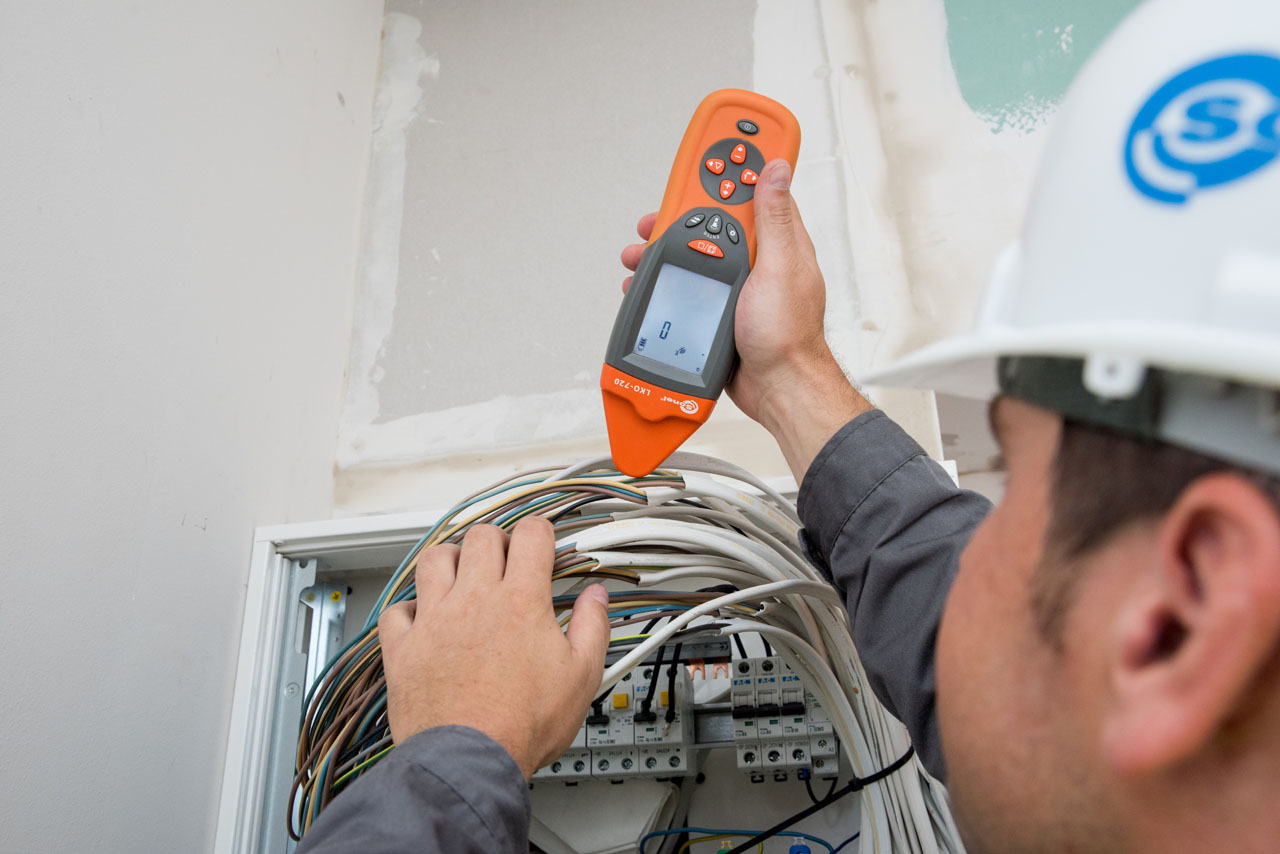

Identify fuses on the distribution board with a precise sensor and additional contact and non-contact probes, identifying  breakers and fuses will be easily and save time.

Possibility to trace in insulated conductors with C-8 clamp (purchased separately) used in the current mode or other mode forcing
current, allows to uniquely identify wire or cable from a current signal.

Non-contact detection of live cables allows to precisely detect energised wires in air and concrete without
additional probes.

Functionsand features of LKX-720 Detection of wires and cables (live or not)

  • detect cables in ceilings, walls and floors,
  • detect breaks in cables,
  • trace cables in building installation,
  • locate power points and switches in buildings,
  • locate short circuits between leads,
  • trace shielded cables,
  • trace cables in metal ducts.
  • Identification of fuses on the distribution board.
  • Trace underground cables.
  • Trace conductive water and heating pipelines.
  • Non-contact detection of live cables.
  • the function 3D in the receiver – detecting the direction of current flow and accurate locating the object,
  • phase detection mode,
  • receiver operation with four transmitters at the same time to locate interruptions or distinguish wires,
  • a LED bright torch,
  • headphone socket in receiver,
  • screens backlit for work in dark,
  • transmission battery status and settings of the transmitter to the receiver
  • operation in wide range of rated voltage, up to 500V RMS,
  •  measurement of voltage at the object to 500 Vrms,
  • three levels of transmitter amplification,
  • automatic or manual selection of transmitter operation modes,
  • five modes of wire tracer operation – voltage, current, current-voltage, power and clamp,
  • software upgrade via USB,
  • additional accessories enable precise localisation – such as contact or non-contact probes and measurement clamp.

Description

Technical specification
insulation type double, acc. to EN 61010-1
transmitter measurement category Cat III 600 V acc. to EN 61010-1
transmitter ingress protection rating acc. to EN 60529 IP67
receiver ingress protection rating acc. to EN 60529 IP40
transmitter power supply 4 x AA alkaline batteries
or 4 x Ni-MH rechargeable
maximum transmitter operating voltage 500 V RMS
maximum depth of the analysed object (“I” mode) 2 m
maximum range of contactless neon probe in air 50 cm
in concrete 5 cm
receiver power supply 9 V 6LR61 alkaline battery
operating temperature -10°C…+50°C

Brand

Sonel
