Rapidox SF6 6100 Portable Gas Analyser

Rapidox SF6 6100 Portable Gas Analyser

Call for price

Portable SF6 analysers Rapidox 6100 Overview

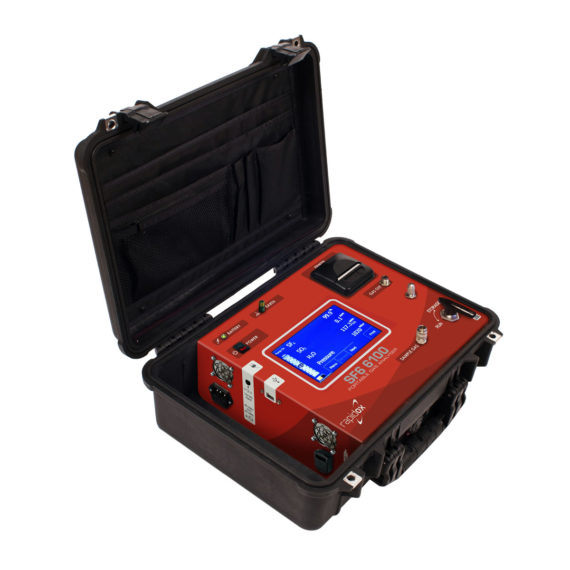

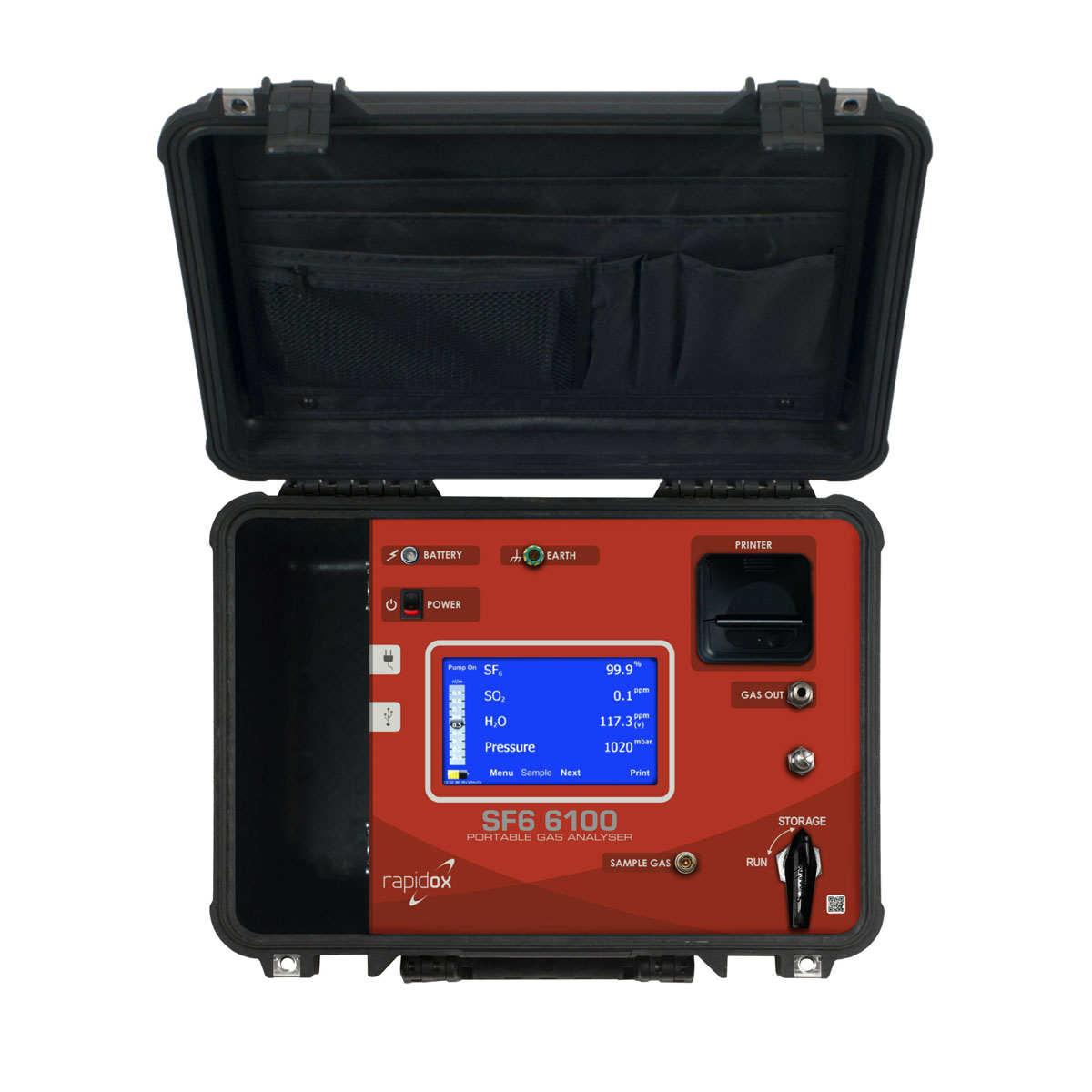

The Rapidox SF6 6100 Portable is designed to test the quality of SF6 in MV & HV gas insulated electrical equipment. The analyser is pre-programmed with all current IEC and CIGRE test configurations, with the ability to create customised test parameters. Exceptional accuracy and stability are provided when measuring the purity of SF6 gas, through specially selected sensors. A output nozzle allows for the analyser to be attached to the Rapidox Gas Recovery Bag, ensuring that all sampled SF6 gas is recovered.

For the power transmission and distribution network, SF6 technology remains essential. To protect personnel, equipment and the environment regular SF6 analysis should be adopted within the maintenance schedule. The early identification of any decomposition products and moisture within the SF6 gas will help avoid unnecessary shutdowns, outages and failures, in addition to reducing maintenance expenditures.

The modular configuration allows for up to eight compatible gases to be analysed simultaneously with one analyser.  Internal SF6 gas pressure is recorded and logged by the analyser. All measured gases are analysed and data-logged simultaneously with only a few minutes required to achieve a stable reading. In order to accelerate the time taken in-between dew point readings, a unique Rapidri system is fitted to analysers measuring H2O. When not in use the sensor can be isolated via the ‘Run – Storage’ valve.

Other measurable gases include H2O (dew point), SO2, HF, O2 & CF4. Due to the instruments modular design, a number of configurations are available in order to suit a variety of application requirements.

Portable SF6 Analyser Features:

  • Easy to operate and configure

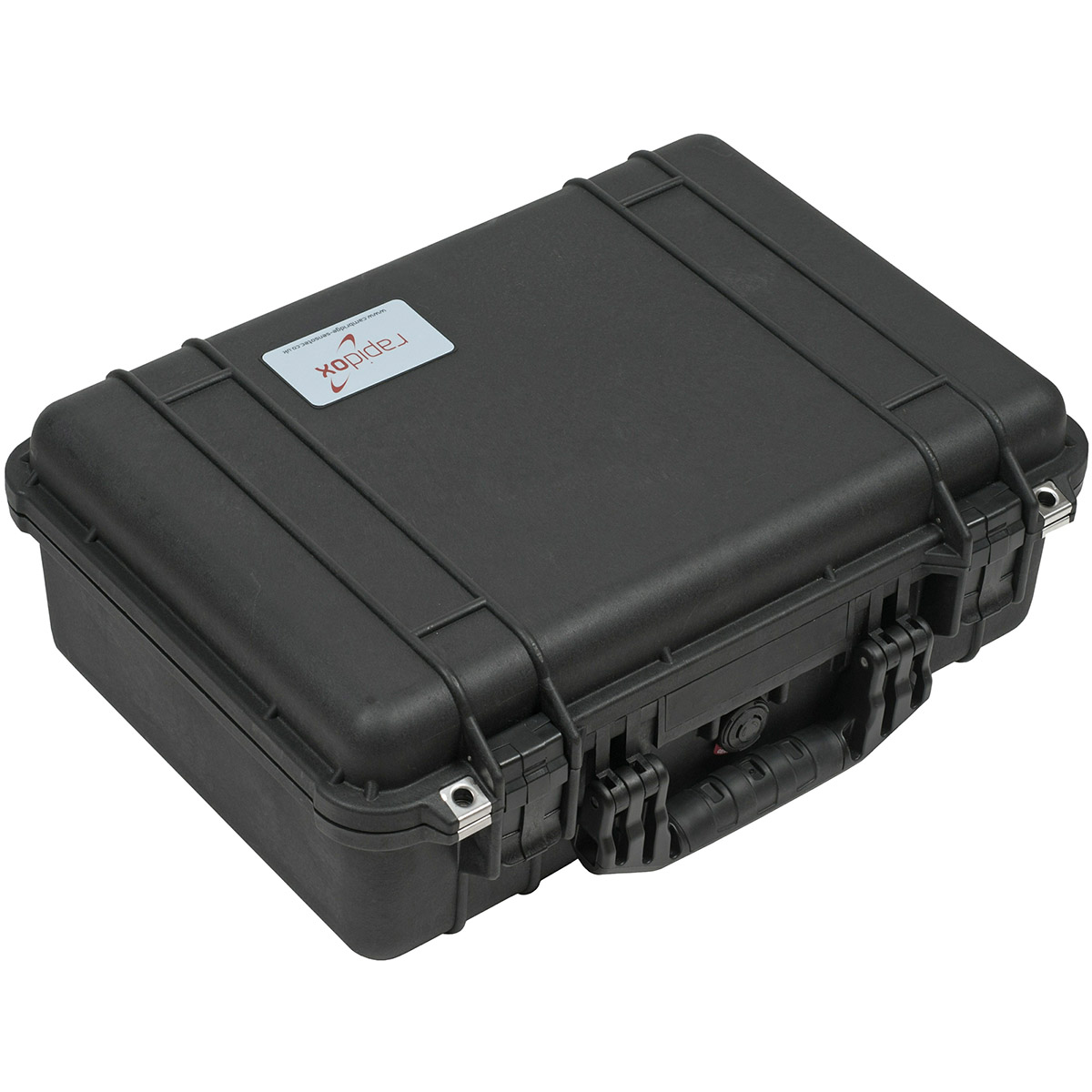

  • Housed within a heavy duty IP66 Pelicancase

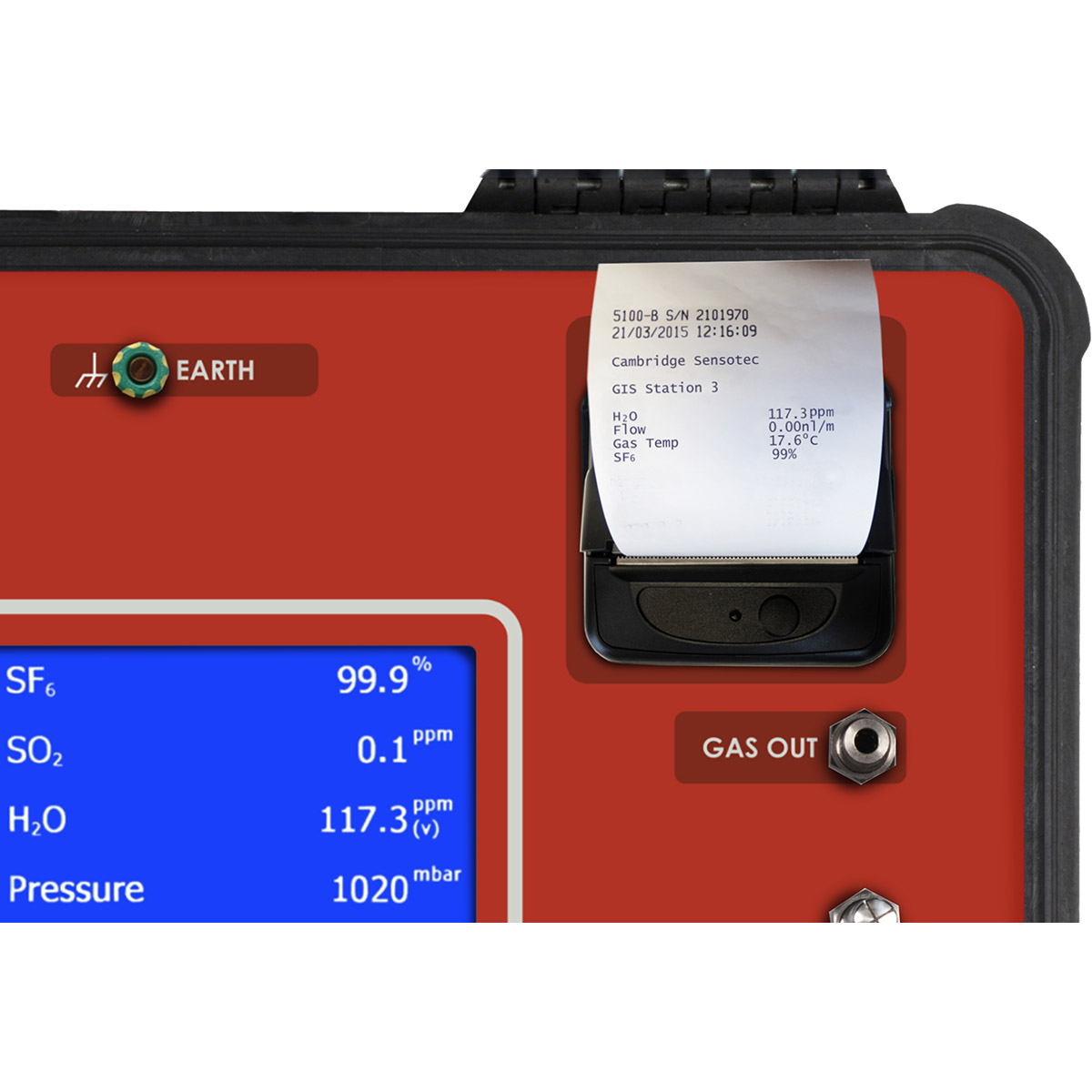

  • Integrated thermal printer provides on-site printing of test results
  • Total weight of 8.5kg
  • Lithium battery provides up to eight hours of operation
  • Pre-programmed with all current IEC and CIGRE test configurations
  • Ability to create customised tests
  • Measurement data can be viewed in real time
  • Data download in an MS Excel compatible format via a USB memory stick
  • Features a 7” (18cm) full colour touch screen, soft menu keys and alphanumeric keypad
  • Editable test locations and user names
  • Password protection feature
  • Multi-language

Description

Specification
Ambient Operating Conditions -10°C to +40°C, 10-90% RH, 800-1100mbara
Warm-up Time 3-4 minutes at 20o°C
Voltage (Charging) 90-260 VAC, 50/60Hz
Battery Life In excess of 8 hours. 4-6 hour charge
Sample Connections Rectus style fitting
Data Outputs Excel compatible data via USB memory stick
Data Storage 4GB internal data storage allowing for approximately 1 year of continuous monitoring
Gas Flow Range 100-1,000ml .min-1
Max Inlet Pressure 10 Bar gauge
Optional Pump 0-1 litres per minute
Display 7” (180mm) full-colour LCD touch screen interface with soft menu keys
Printer Integrated thermal printer allows output of results on demand
Analyser Dimensions 180mm(H) x 480mm(W) x 360mm(D)
Weight 8.5kg (Total instrument and case)



Sensor Specification Accuracy Calibration Life Span Sensor Type
SF6 Sulphur Hexafluoride 0-100% ±0.5% accuracy Every 12 months >5 years Infrared (IR)
H2O Dew Point -60oC to +20oCdp
(10 – 24,000ppmV)
Reading is corrected to either RT or 20oC
±2oCdp of reading Every 12 months by Sensor Exchange 2-3 years Polymer
SO2 Sulphur Dioxide 0-100ppm OR 0-500ppm ±2% full-scale Every 12 months 2-3 years Electrochemical
HF Hydrogen Fluoride 0-10ppm OR 0-30ppm ±2% full-scale Every 12 months (Using HCI gas) 2-3 years Electrochemical
CF4* Tetrafluoromethane 0-80% ±1% of full reading N/A N/A (measured by balance of SF6 + Air reading)
H2S Hydrogen Sulphide 0-100ppm ±2% full-scale Every 12 months 2-3 years Electrochemical
CO Carbon Monoxide 0-1,000ppm ±2% full-scale Every 12 months 2-3 years Electrochemical
Air / N2 Nitrogen 0-100% full-scale based on oxygen component Every 12 months 2-3 years Electrochemical O2 scaled to read as Air or Nitrogen

Brand

Cambridge Sensotec

advancing excellence in gas analysis

Additional information

Options

3 gas analyser SF6 , SO2 , Dew Point, 8 gas analyser SF6, SO2, Dew Point, HF, Air based on O2, CF4, CO, H2S
