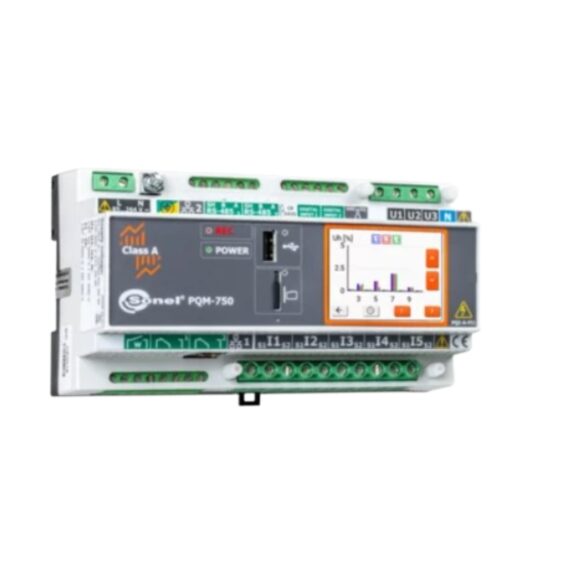

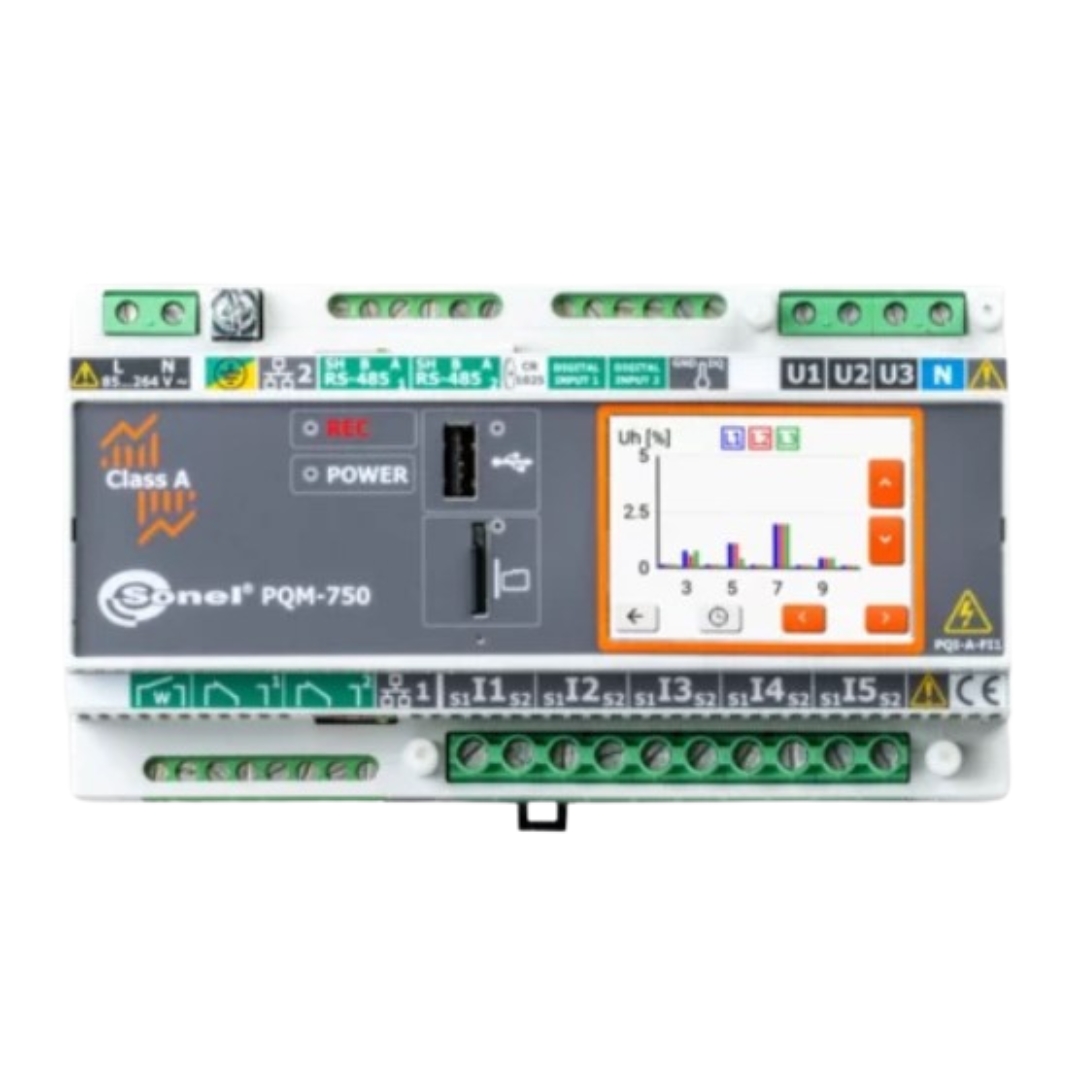

Mounted Power Quality Analyser PQM-750
Mounted Power Quality Analyser PQM-750
Mounted Power Quality Analyser PQM-750
Mounted Power Quality Analyser PQM-750

Mounted Power Quality Analyser | PQM-750

Price range: R103,215.00 through R116,096.00 ex vat

Mounted Power Quality Analyser  – Overview

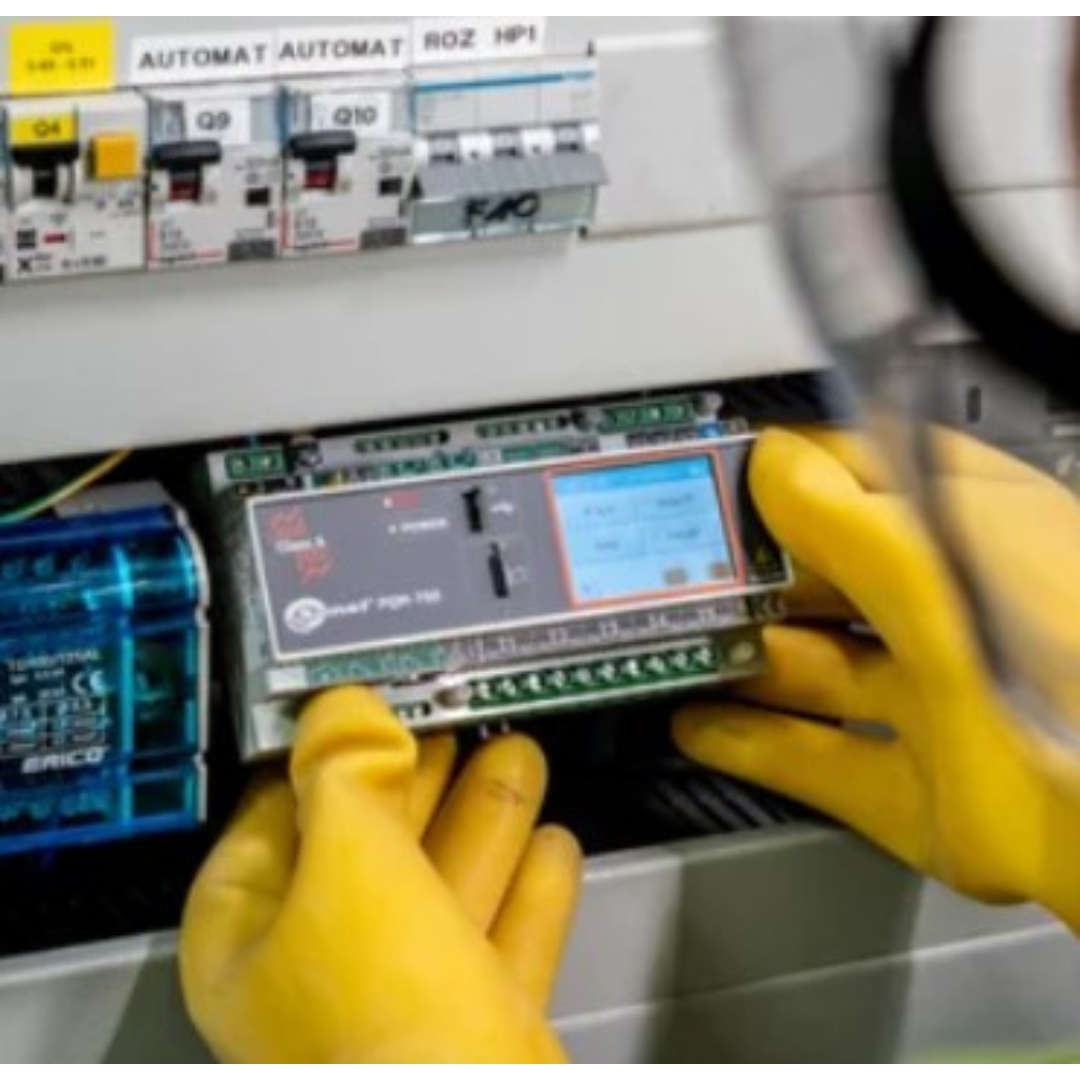

The Mounted Power Quality Analyser is a stationary meter.  It is designed to be mounted on a DIN rail and can be mounted on a wall in a cabinet. It has a modular design that allows the expansion of the meter. It measures and records power supply parameters for compliance with standards and applicable laws. It can verify the preset terms of a power sale or purchase contract. It is manufactured in class A.  The instrument allows measurements in 50 Hz, 60 Hz and 400 Hz networks.

Mounted Power Quality Analyser  – Features

  • Full class A according to IEC 61000-4-30
  • 5 Voltage input terminals: L1, L2, L3, N, E
  • 5 current transformers: L1, L2, L3, N, E currents
  • Operation in 50 Hz, 60 Hz networks, 400 Hz networks coming soon
  • Recording of voltage and current events along with waveforms
  • Measurement of more than 4,000 parameters
  • 24-bit analogue-to-digital converter
  • Basic sampling rate of 80 kHz
  • Conducted emissions monitoring in the 2…150 kHz band
  • Two LAN ports, option of powering PoE (Power over Ethernet)
  • Power supply 85…264 V AC (120…300 V DC),
  • Built-in rechargeable battery
  • 8 GB memory (microSD card)
  • USB port for meter updates and data exchange
  • Two binary inputs, two relay outputs, two RS-485 ports
  • Relay output to monitoring analyser operation (Watchdog)
  • 1-wire input for external temperature sensors
  • 2.4” touch screen
  • DIN rail or wall mounting
  • Expansion bus allowing connection of various external modules (e.g. GPS, LTE)
  • Built-in web server for programming, reading data, viewing events with oscillogram/RMS display
  • Time synchronization with reference via NTP servers, IRIG-B (via built-in RS-485)
  • Optional GPS module
  • Measurement category CAT III 600 V (IV 300 V) for voltage inputs
  • Measurement category CAT III 300 V for current inputs
  • Possibility of sealing current and voltage inputs
Clear
SKU: N/A Category: Tags: ,
Sonel Logo Square

Description

Mounted Power Quality Analyser | PQM-750

Parameter Measuring range Max. resolution Accuracy
Alternating voltage (TRMS)
UL-L MAX = 2000 V for UL-E MAX = 1000 V		 0.0…1000.0 V 4 significant digits ±0.1% Udin
Crest Factor
Voltage 1.0…6.5 (1.65 for voltage of 690 V) 0.01 ±5%
Current 1.00…10.00 0.01 ±5%
Alternating current (TRMS) 0…20 A 4 significant digits ±0.2%
Frequency 40.000…70.000 Hz 0.001 Hz ±0.01 Hz
Active power
IEC 62053-22 class 0,2S		 depending on voltage and current ratio 4 significant digits ±0.2%
Reactive power
IEC 62053-24 class 0,5S		 depending on voltage and current ratio 4 significant digits ±0.5%
Apparent power depending on voltage and current ratio 4 significant digits ±0.2%
Active energy
IEC 62053-22 class 0,2S		 depending on voltage and current ratio 4 significant digits ±0.2%
Reactive energy
IEC 62053-24 class 0,5S		 depending on voltage and current ratio 4 significant digits ±0.5%
Apparent energy depending on voltage and current ratio 4 significant digits ±0.2%
cosφ and power factor (PF) -1.000…1.000 0.001 0.05
tanφ -10.000…10.000 0.001
depends on error of active and reactive power
Harmonics and interharmonics
Voltage DC, 0…256 4 significant digits
±0.05% Udin for m.v. < 1% Udin
±5% m.v. for m.v. ≥ 1% Udin
Current 0…256 4 significant digits
±0.15% Irin for m.v. < 3% Irin
±5% m.v. for m.v. ≥ 3% Irin
THD-F
Voltage 0…20% 0.01%
±0.3% (absolute error)
Current 0…100% 0.01%
±0.3% (absolute error)
Active and reactive power of harmonics depending on voltage and current ratio 4 significant digits —
Angle between current and voltage harmonics -180.0…+180.0° 0.1°
≤0.05° for n = 1
≤1° for 2 ≤ n ≤ 60 at fnom = 50 Hz
≤4° for 61 ≤ n ≤ 256 at fnom = 50 Hz
K-Factor 1.0…50.0 0.01 ±10%
Flicker index 0.20…10.00 0.01 ±5%
Unbalance factor
Voltage and current 0.0…20.0% 0.10%
±0.15% (absolute error)
Measurement of control signals
Voltage up to 15% Udin at fR = 5…30000 Hz 4 significant digits
unspecified for <1% Udin
±0.15% for 1…3% Udin
±5% for 3…15% Udin
Emissions in band
2…9 kHz a single frequency that is multiple of 200 Hz 0.01 V
±0.1% Udin for m.v. < 2% Udin
±5% m.v. for m.v. ≥ 2% Udin
8…150 kHz a single frequency that is multiple of 2 kHz 0.01 V ±(5% + 0.1 V)

Mounted Power Quality Analyser | PQM-750

Additional information

Options:

Analyser, 85…264 V AC / 120…300 V DC power supply, mechanical relays, 5 A current transducers, Analyser, 85…264 V AC / 120…300 V DC power supply, mechanical relays, 5 A current transducers, transient module installed, Analyser, 85…264 V AC / 120…300 V DC power supply, mechanical relays, 1 A current transducers, Analyser, 85…264 V AC / 120…300 V DC power supply, mechanical relays, 1 A current transducers, transient module installed, Analyser, 18…60 V DC power supply unit, mechanical relays, 1 A current transducers, Analyser, 18…60 V DC power supply unit, mechanical relays, 1 A current transducers, transient module installed, Analyser, 18…60 V DC power supply unit, mechanical relays, 5 A current transducers, Analyser, 18…60 V DC power supply unit, mechanical relays, 5 A current transducers, transient module installed

Brand

Sonel
