Multifunction Solar PV Installation Tester – Overview

Transforming the way PV systems are tested, the PV150 combines ground continuity, DC operating power and operating current test functions in a hand-held device. It can also test insulation resistance, open circuit voltage and short circuit current at the push of a button. The unit can also wirelessly capture and record real-time irradiance, ambient temperature and PV module temperature measurements from the Solar Survey 200R. 200 datasets can be stored on the PV150 and are easily downloaded via the USB connection to the SolarCert software so you can create professional reports for your customers. This tester saves time safely and is easy to use.

Complete Kit Includes:

  • Seaward Solar Installation PV150 instrument
  • 2 x MC4 test lead adaptors
  • 2 x Combiner box test probes and detachable alligator clips (MC4)
  • 2 x Test Leads, with test probes and detachable alligator clips (4mm)

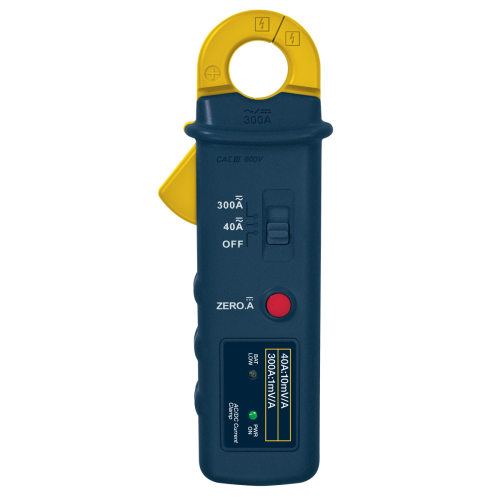

  • AC/DC current clamp

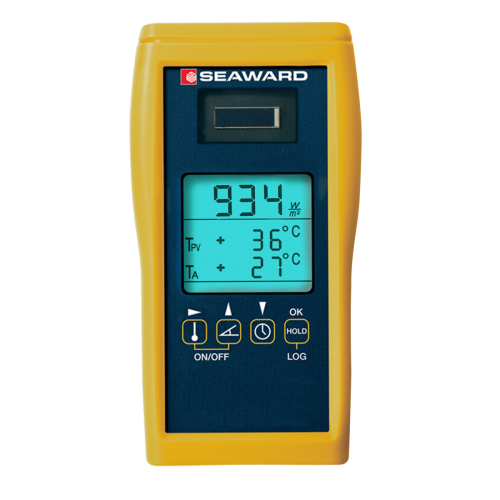

  • Solar Survey 200R irradiance meter and temperature probe

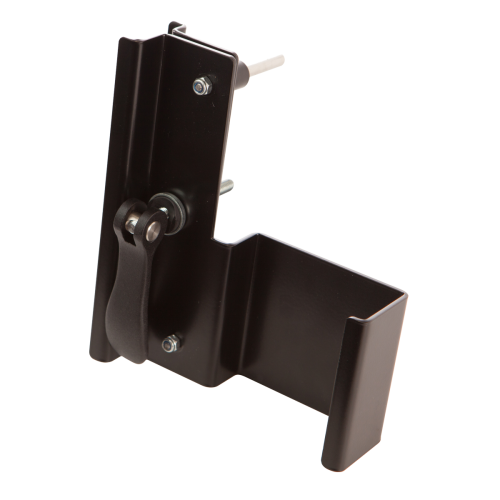

  • Solar Survey 200R mounting bracket
  • Rugged carry bag
  • Quick Start Guide
  • UKAS Calibration Certificate (PV150)
  • SolarCert PC Software

Solar PV Installation Tester Kit – Features

  • Ground (earth) continuity measurement with test lead null for long test-leads
  • PV string open circuit voltage measurement up to 1000V DC with polarity
  • PV string short circuit current measurement up to 15A
  • PV array insulation test at 250/500/1000V.
  • Tests individual PV modules or
  • Memory for up to 200 records and USB download to PC (CSV file).
  • High contrast display, visible in bright
  • 2 x MC4 test lead
  • 2 x Combiner box test probes and detachable alligator clips (MC4).
  • 2 x Test Leads, with test probes and detachable alligator clips (4mm).
  • AC/DC current
  • Solar Survey 200R irradiance meter and temperature
  • Solar Survey 200R mounting bracket
  • Rugged carry
  • Quick Start
  • UKAS Calibration Certificate (PV150).
  • SolarCert PC



Category: Tags: , , ,
Seaward logo

Description

Solar PV Installation Tester Kit | PV150

Technical Specifications

Open Circuit Voltage Measurement (PV Terminals)
Display Range : 0.0VDC – 1000VDC
Measuring Range : 5.0VDC – 1000VDC
Resolution : 0.1VDC maximum
Accuracy : ± (0.5 % + 2 digits)
Enunciators : DC voltage polarity correct or reversed

Short Circuit Current Measurement (PV Terminals)
Display Range : 0.00ADC – 15.00ADC
Measuring Range : 0.50ADC – 15.00ADC
Maximum Power :  10kW
Resolution : 0.01ADC maximum
Accuracy : ± (1% + 2 digits)

Earth Continuity Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit : >4VDC, nominal
Test Current into 2 Ω : >200mA
Display Range : 0.00 Ω – 199 Ω
Measuring Range (EN 61557-4) : 0.05 Ω – 199 Ω
Resolution : 0.01Ω maximum
Accuracy : ± (2% + 5 digits)
Test Leads Zero : Zero up to 10 Ω, by zero button
Visible Warning : ≥ 30V AC or DC at inputs
Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs
Repeat tests as per IEC61557-4 : Approx 4000 1 second test

Insulation Resistance (Auto Test Sequence, PV Terminals, and Red 4mm Terminal)
Test Voltage Open Circuit : 250V | 500V | 1000V (as per IEC61557-2)
Test Voltage Specification : -0% +20% (open circuit)
Test Voltage @ 1mA : >1mA into UN x (1000Ω/V)
Test Current Short Circuit : < 2mA
Display Range : 0.05MΩ – 199MΩ
Measuring Range (EN 61557-2) : 0.05MΩ – 199MΩ
Resolution : 0.01MΩ maximum
Accuracy : 0.05MΩ – 100MΩ ± (5% + 5 digits)
101MΩ  – 199MΩ ± (10% + 5 digits)
Visible Warning : ≥ 30V AC or DC at inputs
Circuitry Protection : Test inhibited if ≥ 30V AC or DC at inputs
Repeat tests as per IEC61557-4 : Approx 3000 1 second tests

Rpe Voltage Measurement (4mm Terminals)
Display Range : 30V – 440VAC/DC
Voltage Measuring Range : 30V – 440VDC
30V – 440VAC 50-60Hz
Resolution : 1V
Accuracy : ± (5% + 2 digits)

Operating Current (via AC/DC Current Clamp)
Display Range : 0.1A – 40.0A
Current Measuring Range : 0.1A – 40.0A DC
0.1A – 40.0A AC 50-60Hz
Resolution : 0.1A
Accuracy : ± (5% + 2 digits)

DC Operating Power (via AC/DC Current Clamp and PV Terminals)
Display Range : 0.00kW – 40kW
Measuring Range : 0.50kW – 40kW
Resolution : 0.01kW
Accuracy : ± (5% + 5 digits)

PV150 General Specifications

Instrument Dimensions and Weight
Weight : 0.95kg / 2.1lb
Dimensions : 26.4 x 10.7 x 5.8cm / 10.4 x 4.2 x 2.3″
Display : Custom LCD with backlight
Power Source : 6 x 1.5V AA cells
Battery life : >1000 test sequences
Auto power down : User-programmable
Onboard memory : Up to 200 complete test datasets

Connectivity

USB download to PC (CSV format)
Wireless “Solarlink TM” to Survey 200R (range -30m/100ft)

Software compatibility

Compatible with SolarCert software (English language only)
