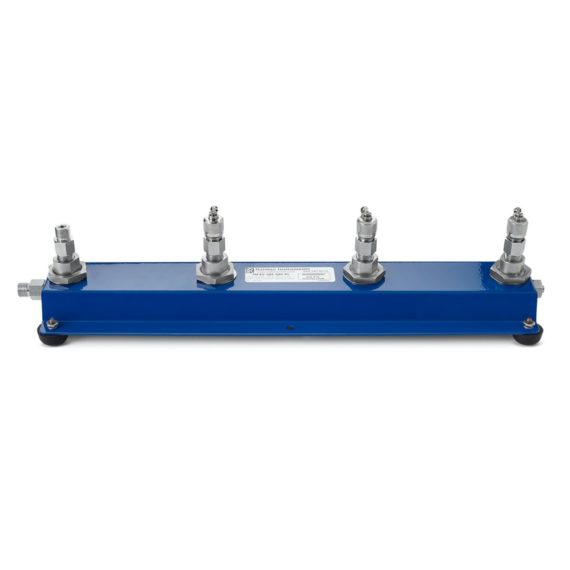

Benchtop Manifolds 350 Bar – Overview

The Benchtop Manifolds 350 Bar is ideal for testing multiple pressure instruments at once of up to 5000 psi (350 bar) and includes Quick-test connections. Quick-test™ hose is unique because it can be attached and detached without a wrench or thread sealant while maintaining a working pressure of 6900 psi (475 bar). This means there is no requirement for sealing tape on the manifold with hand-tightened quick connections making it extremely easy to work with.

Benchtop Manifolds 350 Bar – Features

• Calibrate multiple pressure gauges, transmitters, or transducers at once
• Vertically mounted ports are spaced far enough apart so larger gauges will fit easily
• Quickly pressurise the system using a Ralston Quick-test hose
• Switch between pressure connections on devices under test without a wrench
• Compatible with all Ralston Quick-test NPT, BSP, Flare Gauge Adapters
• Excellent for calibrating multiple pressure instruments in a thermal chamber
• The second side connection can be used to daisy-chain multiple manifolds together

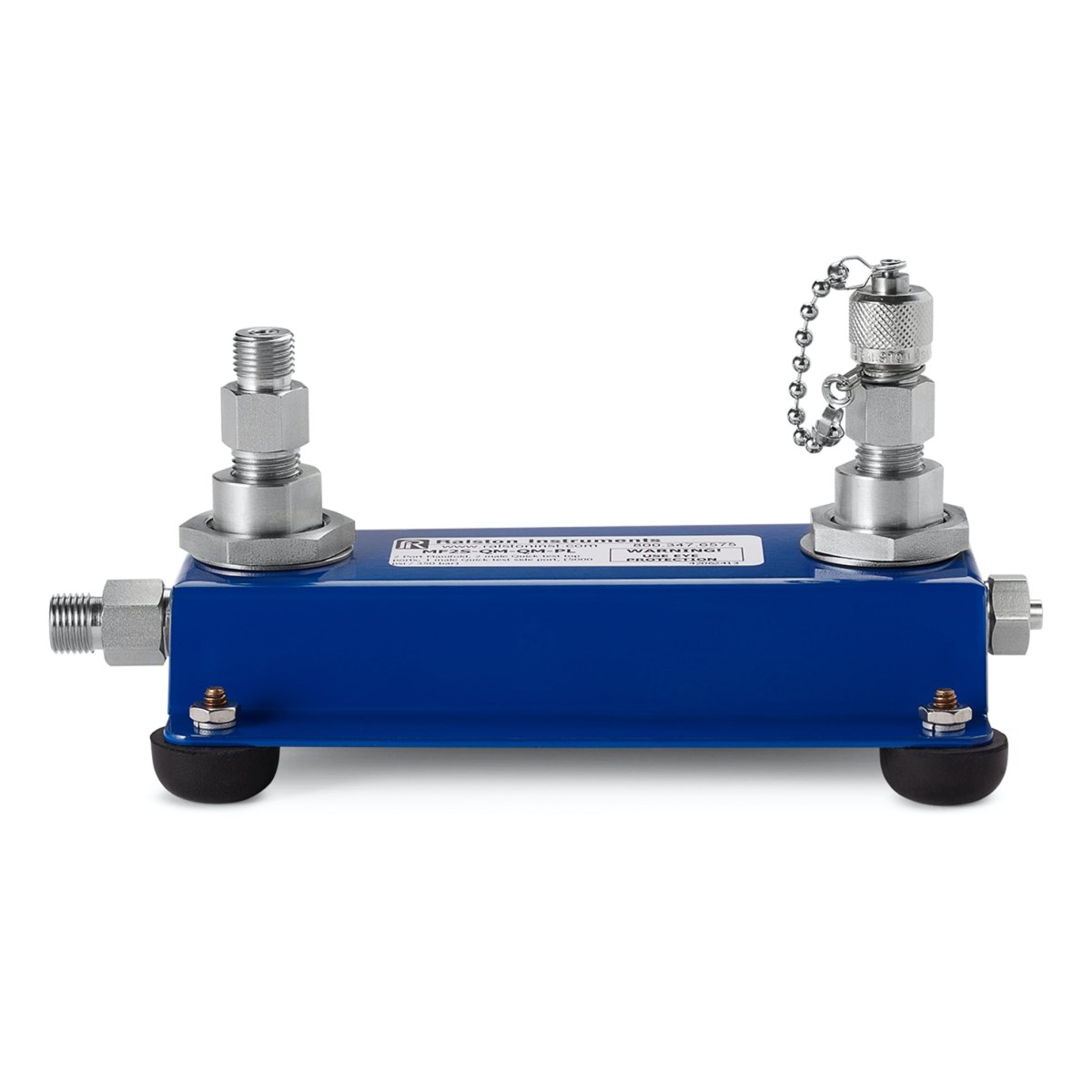

2-port Datasheet   4-port Datasheet
