Resistance Instruments

Cropico DO4000 MilliOhm Meter
R20,480.00 ex vat
Cropico DO4000 MilliOhm Meter - Overview

This portable milliohm meter is a practical digital instrument measuring low resistance. Suitable for use in multiple industries, workshops, field or test labs such as in Aerospace, Automotive, Manufacturing, Military, and Utilities. This milliohm meter is of rugged construction and contained in a sturdy plastic case with easy-to-use buttons. The Series 4000 has many advanced features including auto-ranging, forward and reverse current measurement with auto average, true current zero, protection up to 415 volts rms, digital calibration and long scale length, 4000 count and auto power down to maximise battery life. Supplied with batteries and measuring leads.

Cropico DO4000 MilliOhm Meter- Features
- True 4 terminal Kelvin/Thomson principle measurement eliminates lead resistance errors
- True zero capabilities Buttons to null measurement offsets
- Digital calibration
- Open circuit lead warning on display
- 15mm LCD 4000 count with automatic decimal point and polarity indication
- Manual Auto Ranging selection
- Calibration Digital security key protected
- Removable pack with 5 1.5V non-rechargeable batteries.
- Separate rechargeable pack, charger and docking station as optional extras
- Safety EN 61010-1 EMC-EN 61236
- Forward and Reverse current measurement with auto Averaging to compensate for thermoelectric effect
https://www.youtube.com/watch?v=N6xrnt2vz1Y

Add to basket
Cropico DO4A Milli-Ohmmeters
R40,647.00 ex vat
Cropico DO4A Milli-Ohmmeters - Overview

This portable digital ohmmeter is a practical instrument for low resistance measurement, ideal for use in the workshop, field or test facilities. It is of rugged construction and contained in an aluminium case with tilt handle. The DO4A has many advanced features, including protection up to 415 volts rms, digital calibration and long scale length, 4,000 count. The rechargeable sealed lead acid battery means real portability with more than 14 hours of continuous operation, without the problems normally associated with other battery types. Full measurement capability is maintained whilst charging.

Cropico DO4A Milli-Ohmmeters - Features
- True 4 wire measurement eliminates lead resistance errors
- 6 push button ranges 40mΩ - 4kΩ with long scale length
- 10μΩ resolution on 40mΩ range
- Zero control thermal E.M.F. compensation
- Digital calibration
- Mains/rechargeable battery operation
- Open circuit lead warning
- Rugged industrial maintenance free design
- Universal mains supply 100/200/220/240V +10% - 13%
Add to basket
Insulation Resistance Meter 5kV | MIC-5050
R58,702.00 ex vat

Insulation Resistance Meter 5kV - Overview

This insulation resistance meter has a digital filter function for measurements in high-noise environments. Continuity measurement of protective connections and equipotential bonding in accordance with EN 61557-4 with current > 200 mA. Adjustable limits for measured resistance R_ISO and R_CONT. Measurement of leakage current during insulation resistance testing. DC and AC voltage measurement in the range of 0...750 V. Graphs on the display during measurement. Innovative memory with the option to describe: measurement points, facilities, and names of customers. Bluetooth keyboard (optional). Graphic backlit LCD 5,6'’. Keyboard backlit. Power supply from a main power line or battery packs. Built-in fast charger. The instruments meet the requirements of the EN 61557 standard.

Insulation Resistance Meter 5kV -Features
- measurement voltage any in the range of 50...5000 V (50...1000 V at 10 V and 1...5 kV at 25 V)
- continuous indication of measured insulation resistance or leakage current
- automatic discharge of measured object capacitance voltage after the end of insulation resistance measurement
- acoustic signalling of 5 seconds intervals to facilitate capturing time characteristics
- adjustable measuring time to 99'59'’
- metered T₁, T₂ and T₃ test times for measuring one or two absorption coefficients from the range of 1…600 s
- polarization index (PI), absorption coefficients Ab1, Ab2 and dielectric absorption ratio (DAR) measurement
- indication of actual test voltage during measurement
- 1.2 mA, 3 mA and 5 mA test current
- insulation resistance measurement using two- or three-wire method
- measurements with test leads up to 20 m
- protection against measuring live objects
- automatic measurement of multiple core cables with the additional AutoISO-5000 adapter
- measurement of capacitance during the measurement of R_ISO
- measurement of temperature (with additional probe - WASONT1)
- step voltage insulation resistance measurement (SV)
- Dielectric Discharge calculation (DD)
- location of damage (burnout)
https://www.youtube.com/watch?v=DyOH7K4Yoqg

Add to basket
Cropico DO7 Micro-Ohmmeter
R73,021.00 ex vat
DO7 Micro-Ohmmeter - Overview

The DO7 digital micro ohmmeter is a practical instrument for low resistance measurement, ideal for utility use in the workshop, field or test facilities. It is of rugged construction, contained in a sealed ABS plastic case with lid and carrying handle. The DO7 digital micro ohmmeter has many advanced features. Rechargeable batteries mean real portability with more than 1 hour of continuous operation on the lowest ranges(10A), and 20 hours on all others. The internal charger will boost the charge to 90% of full charge, switching automatically to a trickle maintenance charge. Warning LEDs illuminate when an open circuit lead condition is detected.

DO7 Micro-Ohmmeter - Features
- True 4 terminal measurement eliminates lead resistance errors
- 10A measuring current
- Rechargeable batteries with built-in charger
- Measuring ranges 600µΩ to 60Ω
- Resolution 0.1µΩ on 600µΩ range
- 0.8” LED display daylight viewable
- Auto average of forward and reverse measurement
- Remote start socket
- All solid state design
- Wide range of leads and accessories available
- RS232 printer output
- Protection up to 415Vrms at the measuring terminals,
- Digital calibration and long scale length
- 6,000 count
https://www.youtube.com/watch?v=12vpdn6h-XM

Add to basket
MIC-2501 Insulation Resistance Tester/Meter
R18,539.00 ex vat
MIC-2501 Insulation Resistance Tester/Meter - Overview

A very handy tool for measuring Insulation resistance with up to 2500V. It can measure up to 1TOhms in accordance with IEC61557-2. Comes with a convenient carry case which has straps to free up your hands during operations.

MIC-2501 Insulation Resistance Tester/Meter - Features
- Selectable voltage in the 100…2500 V range with 100 V step
- Continuous indication of insulation resistance or leakage current
- Automatic discharge of capacitance of tested object after the insulation resistance measurement
- Acoustic signalling of five-second periods to facilitate obtaining time characteristics
- Measured test times T₁, T₂ i T₃ to measure one or two absorption coefficients in 15, 60 and 600 s
- Indication of actual test voltage during the measurement
- Protection against measuring live objects
- Two and three-lead measurement methods
- Continuity measurement of protective and equipotential conductors according to EN 61557-4
- Leakage current measurement
- Alternating and direct voltages in the 0...750 V range
- Built-in rechargeable battery pack
- The instruments meet the requirements of the EN 61557 standard
- Charge from car lighter (12 V) socket (additional accessories)
https://www.youtube.com/watch?v=ZKKcoVvN-B8

Add to basket
DO7e Micro Ohmmeter
R51,021.00 ex vat
DO7e Micro Ohmmeter - Overview

The DO7e is a rugged, compact and portable digital micro ohmmeter for the measurement of low resistance. Using a rechargeable sealed lead acid battery with a built-in charger, the DO7e is capable of measuring a current of 10 Amps on the lowest range. The DO7e has been designed with the latest solid state and microprocessor techniques to ensure the very best in measurement, reliability and features. Automatic range selection, forward and reverse current measurements with auto average and a remote start socket are all included as well as an energy-saving power down mode.

DO7e Micro Ohmmeter - Features
- True 4 wire measurement eliminates lead resistance
- 6 push button ranges 6mΩ to 600Ω
- Resolution 1µΩ on 6mΩ range
- Auto ranging
- 10A measuring current on lowest range
- 0.8” LED display daylight viewable
- Forward and reverse current measurement
- Auto average of forward and reverse measurement
- Auto power off
- Mains/rechargeable battery operation
- Digital calibration pass code protected
Add to basket
Micro Ohmmeter | MMR 620
R60,206.00 ex vat
MMR 620 Micro Ohmmeter - Overview

The MMR-620 Series Ohmmeters are professional, portable instruments for measuring very low resistances. Due to their special measurement algorithms, they can be used for both resistive and inductive types of specimens. The MMR-620 is the perfect instrument for electricians testing electrical junctions, motors and power transformers windings. The results can be stored in the internal memory and sent to a computer via the serial interface. A quick PASS/FAIL test function with results displayed and acoustically indicated simplifies measurements considerably. The MMR-620 meter can also be used for testing the quality of the junctions in a production process via the interface

MMR 620 Micro Ohmmeter - Features
- Measurements of objects resistive in nature:
  - welded and soldered connections, equipotential bondings, earthing conductors
  - contacts, welds of rails, conductors and cables
  - measurement according to the four-lead method
- Measurements of objects inductive in nature:
  - motor windings
  - low-resistance coils
Add to basket
MMR-630 Micro-Ohmmeters
R82,543.00 ex vat
MMR-630 Micro-Ohmmeters - Overview

Measure motor winding resistance and other low resistances. Perform precise tests of objects of resistive and inductive nature using one instrument. This small resistance meter provides very high measurement accuracy. The measurement resolution is 0.1 µΩ. The MMR-630 model enables measurements of objects of resistive as well as inductive nature, such as transformers and motors. This is due to the large measurement current for the individual subranges and the corresponding operating modes. When testing objects of a resistive nature, rapid measurement (3 seconds) is applicable. When testing inductive objects, extended measurement is used (option of a shortened mode with a slightly lower measurement accuracy). The MMR-630 has been enhanced with special functions that allow it to be used in the production cycle for serial measurements, for example, during the inspection of large batches.

MMR-630 Micro-Ohmmeters - Features
- Measurements of objects resistive in nature:
  - welded and soldered connections, equipotential bondings, earthing conductors,
  - contacts, welds of rails, conductors and cables,
  - measurement according to the four-lead method.
- Measurements of objects inductive in nature:
  - motor windings,
  - low-resistance coils.
Add to basket
3
Micro Ohmmeter | MMR-650
R86,680.00 ex vat
MMR-650 Micro Ohmmeter - Overview

Designed to measure very low resistances of both resistive and inductive types of objects, including amorphous core transformers. MMR-650 can be also utilised on a production line (eg. at the final production control stage). An innovative combination of a high-performance measuring device with a modern user interface and advanced data management system. Wireless data transmission, enhanced system of 2D codes and the ability to print labels to identify test items, all contribute to bringing new work quality and allow the user to perform a wide range of measurements.

This product is made to be used in power plants, railways and maintenance companies to measure the resistance of:
- windings of power transformers and motors,
- breakers, contacts,
- earthing conductors, equipotential bondings,
- welded and soldered connections,
- bolted connections,
- and other resistive and inductive objects.
MMR-650 Micro Ohmmeter - Features
- measurement of winding resistance (inductive objects including amorphous core transformers)
- measurement of very low resistance
- transformer core demagnetisation function
- automatic temp compensation function (temperature probe)
- function of determining the temperature of a motor under load
- high immunity to disturbances
https://www.youtube.com/watch?v=KvHAazBcyI4

Add to basket
EPA Zones Insulation Resistance Meter | MIC-2511 EPA

EPA Zones Insulation Resistance Meter - Overview

The Epa Zones Insulation Resistance Meter measures insulation resistance up to 2 TΩ / 2500V. It has robust casing with IP65 protection level. It has low battery power consumption and can be recharged during measurements. The meter is both reliable and versatile. It is ideal for checking industrial installations, catenary networks, and residential buildings. Sought after by electricians working in maintenance, testing motors, cables and street lighting. It is also useful for measurements during construction and maintenance of photovoltaic installations. It is a reliable solution created for the needs of telecommunications network installers and heating network operators, facilitating the control of the alarm system of pre-insulated pipes.

EPA Zones Insulation Resistance Meter - Features
Measurement of leakage current during measurement of R_ISO

Capacitance measurement during measurement of R_ISO

Low-voltage measurement of circuit continuity and resistance

Temperature measurement (with the use of the optional ST-1 temperature probe)

Measurement of direct and alternating voltages within the range of 0...1500 V

9999-entry memory, data transmission to PC via USB cable

Power supplied by rechargeable battery

Backlit keyboard

The instrument meets the requirements laid down by standard EN IEC 61557

Measurement voltage within the range of 10…2500 V

Insulation resistance measurements with a voltage of 10 V of the supervisory loop of fire alarm systems

Testing surge protecting devices (SPD)

Charts plotted on display during measurements

Measurements in electrostatic protected areas (EPA)

Correction of insulation resistance result to reference temperature

Continuous reading of measured insulation resistance or leakage current

Automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement

Sound signaling of five-second time intervals

Timing of measurement times T₁, T₂ and T₃ for measurement of one or two absorption coefficients (Ab1, Ab2 or DAR, PI) within the range of 1… 600 s

Automatic measurement of all resistance combinations of 3-, 4- and 5-core cords and power cords by means of the optional AutoISO-2511 adapter

Reading of actual measurement voltage during measurement

Measurement current <2 mA

Protection against measurement of live objects

Two- or three-lead method of insulation resistance measurement
Read more
Impedance Analysis Package 10uHz ~ 35MHz | IAI + PSM1700

Impedance Analysis Package - Overview

The Impedance Analysis Interface is an optional measurement interface intended to be used with the PSM1700 and PSM1735 to form a high-accuracy Impedance Analyser. The IAI provides all of the functionality of the LCR Active Head but with a wider frequency and impedance measurement range plus higher nominal accuracy. This is achieved by a more sophisticated design that includes an additional internal shunt range, a current amplifier to increase low impedance signal levels and calibration together with the PSM1700/PSM1735 with which it will be used. Applications include passive component analysis and detailed wideband characterisation (capacitors, inductors and resistors), material analysis (corrosion, surface finish analysis etc), electrochemical impedance analysis (battery/cell as well as general electrochemistry), biomedical applications, cable impedance measurements and Input/Output Impedance Measurement of Sub Circuits.

Impedance Analysis Package - Features
- Wide Frequency Range
- Wide Impedance Range
- High phase accuracy
- Excellent Impedance accuracy
- Ability to control remotely
- Highly selective DFT analysis
- Flexible features
- Full graphical display
- Automatic range switching
- 4-wire Kelvin Connections
- DC to 35MHz frequency range
- Signal level: ±10V peak max.
- Shunts: 5Ω, 50Ω, 5kΩ, 500kΩ
Read more
Transimpedance Amplifier High Impedance Measurement | TA107

Transimpedance Amplifier High Impedance Measurement - Overview

The TA107 Transimpedance Amplifier provides a solution for high impedance analysis applications by measuring the current flowing through a component or material under test with an innovative earth-referenced transimpedance amplifier technique. The TA107 Transimpedance Amplifier supplements our existing impedance analyser range to provide a solution for a wide range of measurement applications.

Transimpedance Amplifier High Impedance Measurement - Features
- 1MΩ to 100GΩ range with PSM1735
- DC to 100kHz Frequency range
- Adaptor or direct PSM power
- Simple connection and operation
Datasheet

Read more
Impedance Analysis Package 10uHz ~ 50MHz | IAI2 + PSM3750

Impedance Analysis Package - Overview

The IAI2 converts the PSM3750 units into high-performance LCR meters with true 4-wire Kelvin connections that are taken directly to the component without the need for external shunts. Buffering, amplification, and selectable shunts provide LCR measurements over a wide frequency and impedance range. This Impedance Analyzer allows for a wider frequency and impedance measurement range plus higher nominal accuracy. The IAI2 features 4 internal shunts plus an internal high-frequency amplifier. The combination of the PSM3750 and the IAI2 offers a comprehensive measurement suite. Applications include passive component analysis and detailed wideband characterization (capacitors, inductors and resistors), material analysis (corrosion, surface finish analysis etc), electrochemical impedance analysis (battery/cell as well as general electrochemistry), biomedical applications, cable impedance measurements and input/output impedance measurement of sub-circuits.

Impedance Analysis Package - Features
- 4-wire Kelvin Connections
- DC to 50MHz frequency range
- Signal level: ±10V peak max.
- Shunts: 5Ω, 50Ω, 5kΩ, 500kΩ
Read more

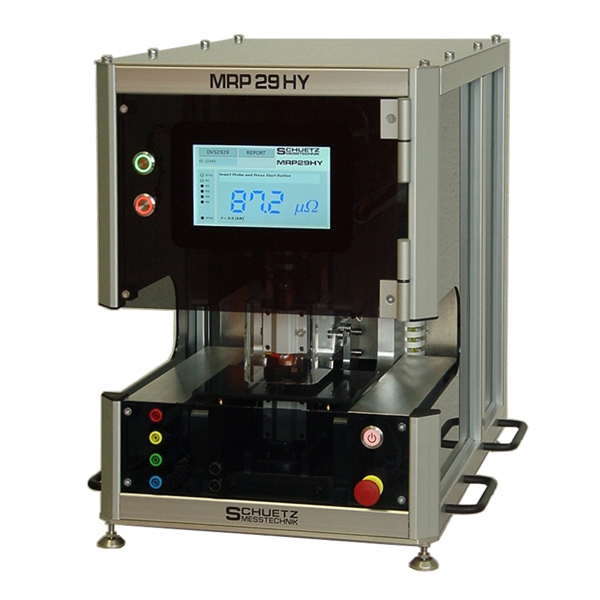

Sheet Metal Surface Quality Tester | MRP29HY

Sheet Metal Surface Quality Tester - Overview

The Sheet Metal Surface Quality Tester MRP29HY can measure surface quality and the efficiency in surface conditions of sheet micro-ohmmeter metals/plates. The MRP29HY consists of a micro-ohmmeter and a hydraulic press and the engineering principle is based on the ‘German Association for Welding Technology E.V.’ data sheet for quality evaluation on the sheet metal which is vital for every application, where the reliability is dependent on the surface quality. The priority is the welding of sheet metal (e.g. after etching, and brushing) in the automotive and aircraft industry, but also surface treatment (e.g. lacquer and splicing). The MRP29HY can measure the contact resistance on single sheet metal or overlap sheet metal e.g. aluminum or corresponding alloy, and other materials.

Datasheet

Read more
1
Electrical Installation Meter with Power Analyzer | MPI-540

Electrical Installation Meter - Overview

The MPI-540 meter is designed for checking the safety of industrial and domestic electrical installations. The user has the option to register the parameters of electrical networks located at these facilities. This allows for the measurement of the parameters for protection against electric shock using a single universal device while verifying the quality of electricity. The Auto mode allows significant automation of measurements of the meter and makes it possible to test the functioning of residual current circuit breakers, as well as in pre-programmed measuring sequences, which can be extended with their own sequences. Automatic measurement of insulation resistance of 3-, 4- and 5-wire conductors is possible by using an additional AUTO ISO-1000C adapter.

Read more
