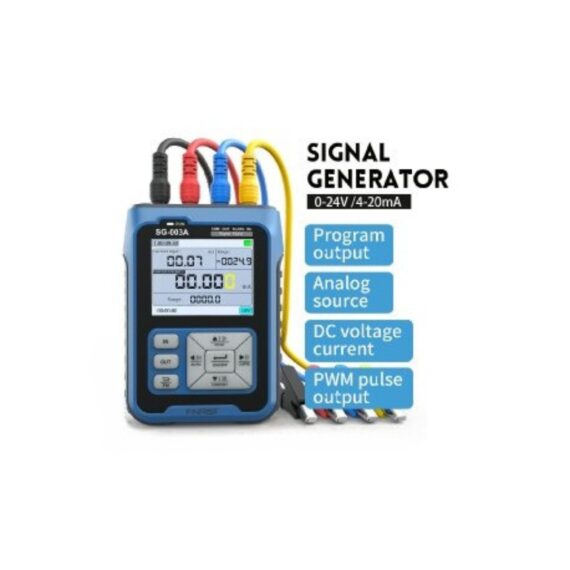

Voltage and Current Loop Signal Calibrator – Overview

This economical calibrator is suitable for use in Debugging and Setup,  Instrument Calibration, Valve Positioners, I/P Converters, AC/DC Drives, Inverters, PLC Systems, DCS Simulation, Control Systems, Transmitter Testing, Temperature Controls, Recorders, Handheld Meters. It is compact and lightweight and is powered by a rechargeable battery.

Voltage and Current Loop Signal Calibrator – Features

• Functions: V, mA, Hz
• Read and Source signals simultaneously
• Economical and compact pocket-size calibrator
• Size: 112 x 82 x 28mm and approx. 165g
• c/w 4 x leads with clips, USB-C cable, charger and manual
• 5 Digit graphic and backlit 2.4” TFT full-colour LCD screen
• mA: 0.00 ~ 24.000A (Active and Passive XMT)
• Loop power 24V DC ±10%, max 24mA (Can be set to 12V)
• V DC: 0.00 ~ 24.00V
• Frequency/PWM: 0 ~ 9999Hz (Output only)
• Stepping (25% steps) and Ramp functions
• Power: Built-in 3.7V 3000mAh rechargeable battery (up to 10 hours use)
