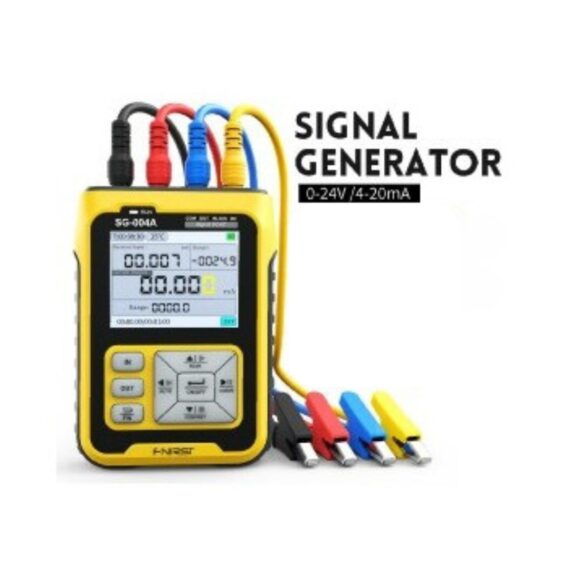

Multifunction Signal Calibrator  – Overview

This Multifunction Signal Calibrator is an all-in-one compact configurable multifunction unit. It simultaneously reads and sources various common instrument signals. mA Loop calibrator, mV and DCV, Thermocouples, RTD PT100, Resistance (ohms) and frequency (Hz) . 12V/24V loop power selectable, programmable stepping and ramp function, graphic colour LCD, real-time trend graph and memory for 100,000 records.

Multifunction Signal Calibrator – Features

• Pocket size calibrator
• 5 Digit graphic and backlit 2.4” TFT full-colour LCD screen
• Functions: mV, V, mA, Hz, Ohms, PT100 and Thermocouples
• Read and Source signals simultaneously
• mA: 0.000 ~ 24.000mA (Active and Passive XMT)
• Loop power 24V DC ±10%, max 24mA (Can be set to 12V)
• mV DC: -10.00 ~ 100.00mV
• V DC: 0.000 ~ 24.000V
• Frequency/PWM: 0 ~ 9999Hz
• Thermocouple types: K/J/E/T/R/S/B/N
• PT100: -200.0 ~ 650.0ºC
• Resistance: 0.0 ~ 390.0Ω
• Programmable output, Stepping (25% steps) and Ramp functions
• Power: Built-in 3.7V 3000mAh rechargeable battery (up to 10 hours use)
• Size: 112 x 82 x 28mm and approx. 167g
• c/w 4 x leads with clips, USB-C cable, charger and manual
