Infrared Thermometer | DIT-200

Infrared Thermometer | DIT-200

R3,460.00 ex vat

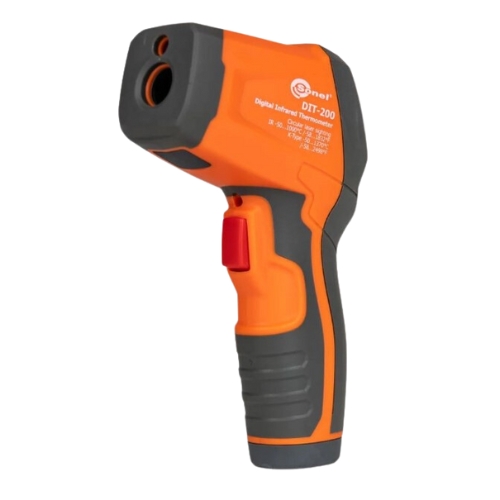

Infrared Thermometer – Overview

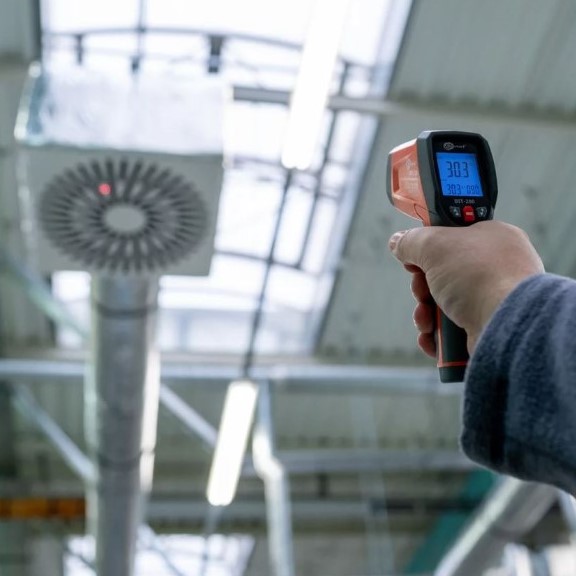

The DIT-200 is the pyrometer for professionals. Its durable housing, ergonomic grip, and button accessibility (only one finger needed) makes it quick and easy to use. The laser pointer will precisely and clearly indicate the area of the performed measurement. It is used to determine the surface temperature of the tested object. The optical system of the instrument detects the radiation that is emitted, reflected and transmitted, then focuses it in the detector. The electronic system converts the optical data into a temperature value.

Infrared Thermometer – Features

  • Precise non-contact temperature measurement
  • Laser pointer -circular
  • Input for type K temperature probe
  • Displaying MAX, MIN, AVG, DIF temperatures
  • Emissivity digitally adjustable: 0.10 to 1.00
  • Resolution: 0.1°C and 0.1°F
  • Automatic Data Hold
  • Temperature: °C / °F
  • High and Low alarm
  • Backlit LCD display
  • Auto power off
  • Durable housing for IP54 ingress protection

Special features

  • Temperature measurements in the range of 50°C…1000°C
  • With an external temp probe – range -50°C…1370°C
  • D:S ratio of 20:1



Description

Infrared Thermometer | DIT-200

Infrared temperature range – D:S, resolution
Infrared temperature range D:S Resolution
-50.0…999.9°C / -58.0…999.9°F 20:01 0.1°C / 0.1°F
1000°C / 1000…1832°F 20:01 1°C / 1°F
“D:S” – distance-to-spot ratio.
Infrared temperature range – accuracy
Infrared temperature range Accuracy
-50…+20°C / -58…+68°F ±3.5°C / ±6.3°F
20…300°C / 68…572°F ±(1,0% m.v. + 1°C) / ±(1,0% m.v. + 1,8°F)
300…1000°C / 572…1832°F ±1,5% m.v.
“m.v.”  – measured value
Temperature range for K probe – resolution
Range Resolution
-50.0…999.9°C / -58.0…999.9°F 0.1°C / 0.1°F
1000…1370°C / 1000…2498°F 1°C / 1°F
Temperature range for K probe – accuracy
Range Accuracy
-50…0°C / -58…32°F ±2°C / ±3.6°F
0…1370°C / 320…2498°F ±(0.5% m.v. + 1,5°C) / ±(0.5% m.v. + 3°F)

Calibration certificates are issued during the production process. New calibration certificates are available upon request at an additional cost.
