Ultrasonic Contact Impedance Probe – Overview

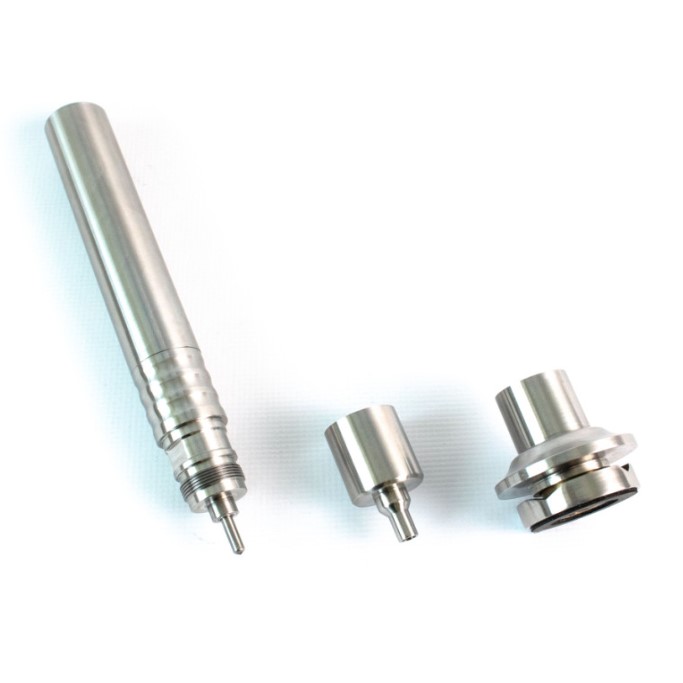

The UCI method can be used to measure the hardness of metal products of almost any shape, mass or thickness. The repeatability of results is also less influenced by the operator and measurement technique. It is easy to use with increased accuracy. It is housed in ergonomic stainless steel which has a special protective cap for the indenter and a replaceable cable that connects via a Lemo type connector. It can also be paired with a special nozzle for working with products of various shapes.

Ultrasonic Contact Impedance Probe – Features

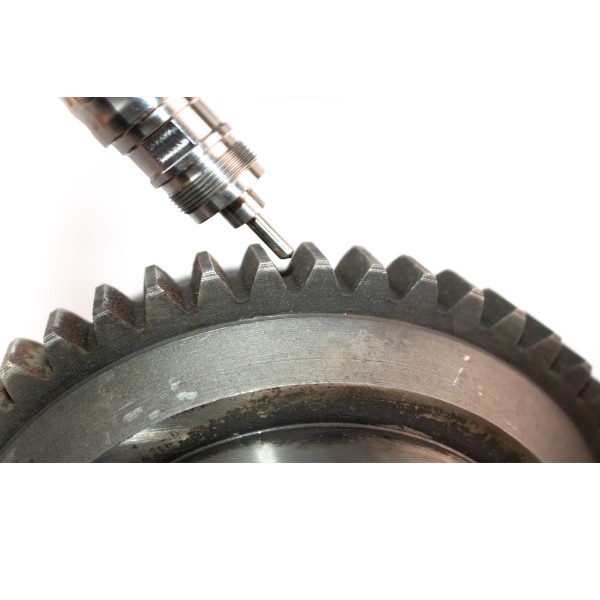

  • Hardness Measurement in narrow places and grooves

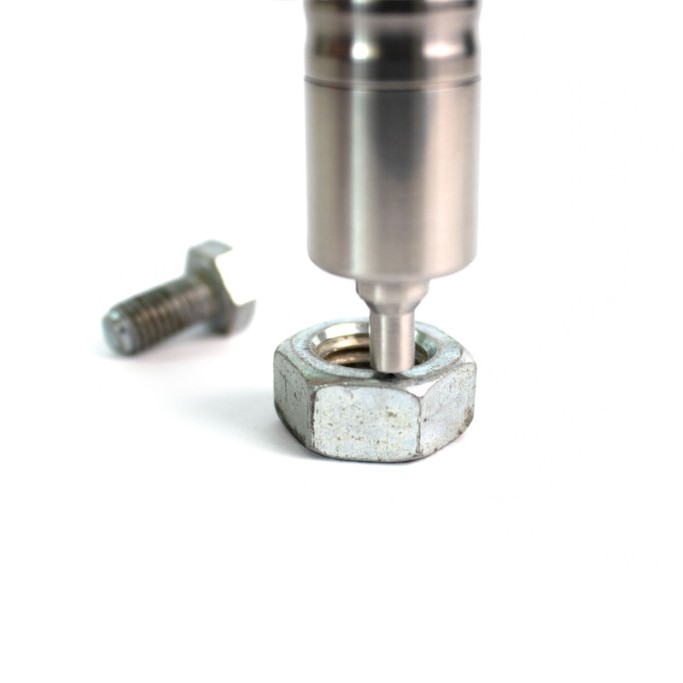

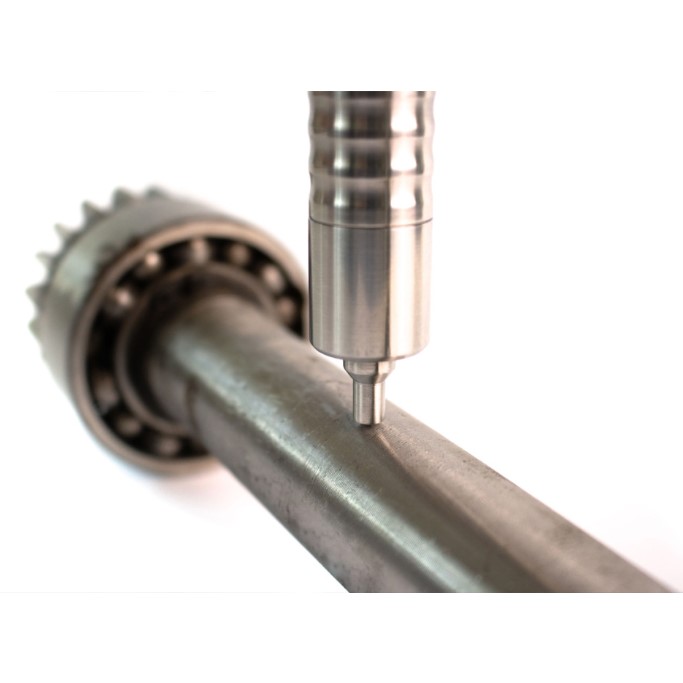

  • Application for products of every shape
  • Measuring the hardness of reinforced layers and coatings
  • Configuration depending on the task
  • Various probe loads
  • Universal
  • Accurate
  • Multifunctional
  • Easy to use



Description

Ultrasonic Contact Impedance Probe | UCI U2

Measuring range   HRC:20~70HB:90~650HV:230~940Tensile strength, MPa: 370~1740

User calibrations for any range (for example: HV20-2000)

Scales HRC, HB, HV, HRA, HRB, MPA and can be calibrated for any other
Materials Precalibrated for steel and can be calibrated for any other
Weight, g 150
Dimensions, mm 145*19

Ultrasonic Contact Impedance Probe | UCI U2



Brand

Novotest
