Static Weather Sensor EOLOS-IND

Static Weather Sensor | EOLOS-IND

R57,695.00 ex vat

No moving partsHumidity and Temperature sensor. NMEA DAta Protocol labelAir pressureCombined wind sensor

Static Weather Sensor – Overview

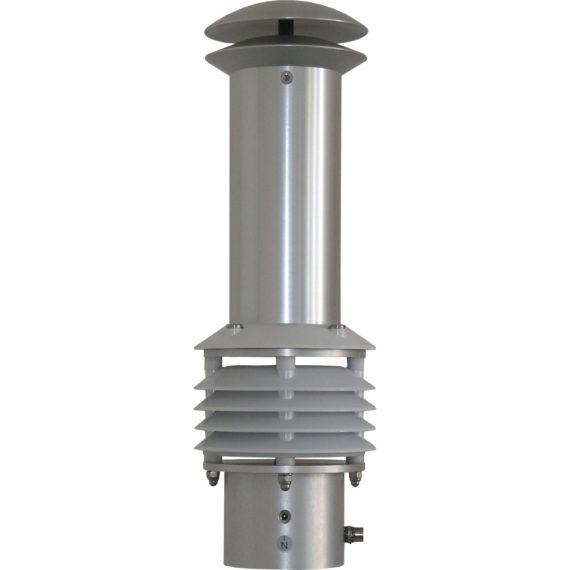

This static weather sensor is suitable for a wide range of applications under harsh environmental conditions. The compact construction of the static measuring system and the space-saving, robust housing make the sensor extremely reliable and durable. Contains high precision inte­grated sensors. Measures 5 parameters: wind speed and direction, barometric pressure, humidity and temperature plus dew point. No moving parts.

Static Weather Sensor – Features

  • No moving measuring elements
  • 5 weather parameters measurable
  • Measures very high wind velocities up to 85 m/s
  • Lamella shelter for accurate mea­surements of the temperature-humidity sensor
  • Optionally heatable
  • Easy installation
  • Easy to maintain

Clear
SKU: N/A Categories: , , , , , Tag:
Lambrecht logo Square

Description

Static Weather Sensor | EOLOS-IND

 Id-No. Static Weather Sensor EOLOS-IND H heated Id-No. 00.16430.010002
Static Weather Sensor EOLOS-IND unheated Id-No. 00.16430.000002
range of application: -30…+70 °C – under non-icing conditions
Meas. range wind direction 0…360°
Meas. range wind speed 0.1…85 m/s
Meas. range air temperature -40…+70 °C
Meas. range rel. humidity 0…100 % r. h.
Meas. range barometric pressure  600…1100 hPa
Accuracy wind direction ± 3°
Accuracy wind speed ± 0.5 m/s ± 5 % of meas. value
Accuracy air temperature

Accuracy rel. humidity

 ± 0.8 °C (v > 2 m/s)
± 3 % (10…90 %)
± 4 % (0…100 %)
Accuracy barometric pressure ± 2 hPa (-30…+70 °C)
Resolution wind direction 1°
Resolution wind speed 0.1 m/s
Resolution air temperature 0.1 °C
Resolution rel. humidity 0.5 % r. h.
Resolution barometric pressure 0.1 hPa
Protocols NMEA 0183 | WIMWV | WIMHU | WIMMB | WIMTA
Interface serial, RS 422, talker, baud rate 4800, 1 Hz (meas. cycle of 10 Hz), 8 N 1
Range of application temperature -40…+70 °C heated
wind speed 0…100 m/s
0…100 % r. h.
Supply voltage 24 VDC (-22 %/ +34 %)
max. 2.5 A
heating: 24 VDC/ 70 W (max. 3 A)  electr. controlled
Dimensions H 382 mm
Ø 120 mm
mast adapter Ø 50 mm for mounting on standard pipe
Housing aluminium anodised IP 66
Weight approx. 2.5 kg
 Options (order separately) Indicator unit e.g. (14742) METEO-LCD
Data logger e.g. SYNMET-LOG or met[LOG]
Mast and power supply unit
Visualisation and evaluation software MeteoWare-CS3
Accessories (order separately) 32.16420.066100 Cable 10 m
12-pole bayonet plug
ready-for-use
