Power Analyzer Compact Three Phase – PPA500

Power Analyzer Compact Three Phase – PPA500

Call for price

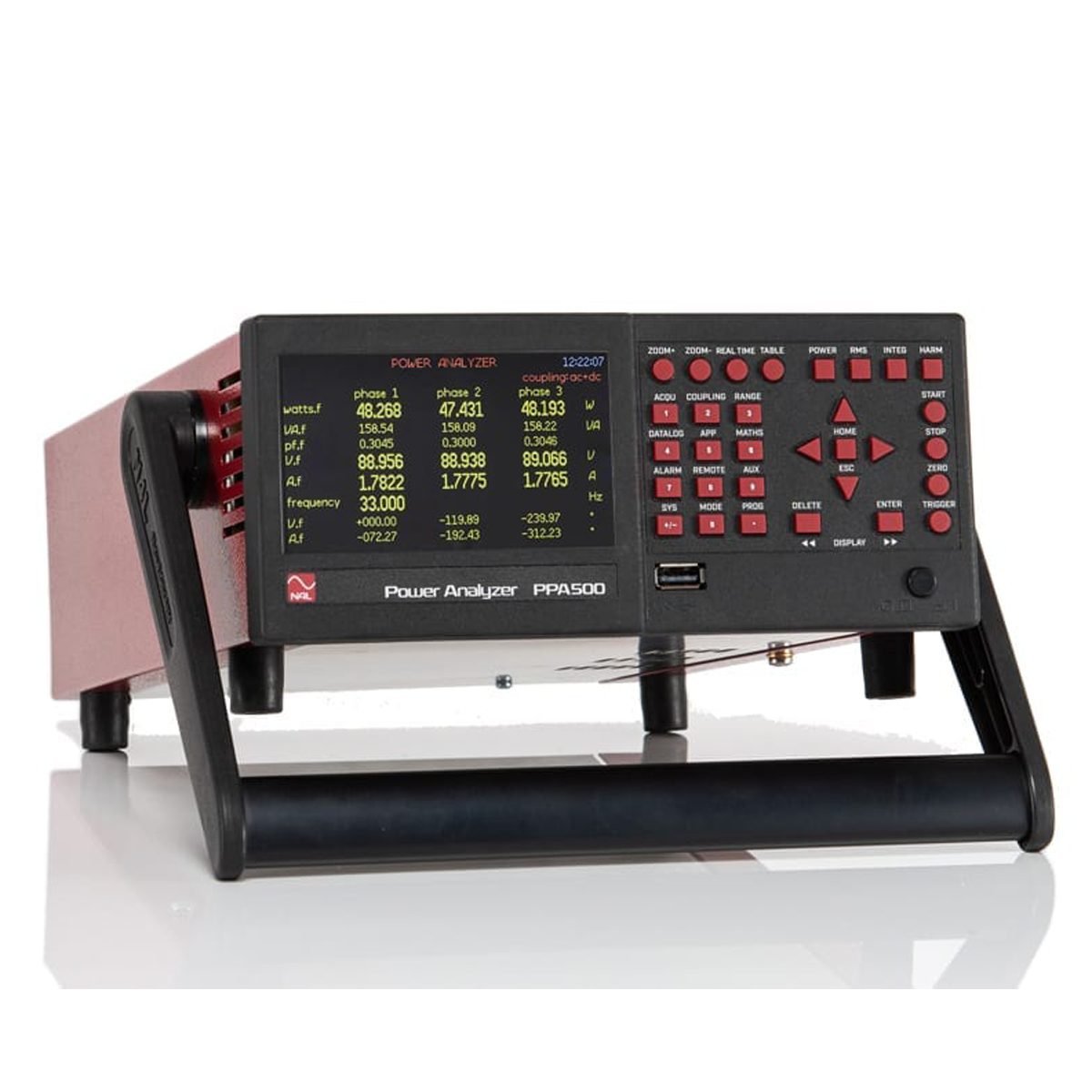

 Compact Three Phase Power Analyzer  PPA500

The PPA500 is a Precision Power Analyzer  addressing a need for high performance power analysis at low cost. Primarily aimed toward applications that require precision measurement without complex features, the PPA500 series is ideally suited to a production or test environment. This power analyser achieves a level of performance previously available only in costly instruments, while maintaining the intuitive operation and clarity of measurement presentation for which the PPA series has become renowned. The unit benefits from a full colour TFT display that provides great flexibility and combines a level of performance, ease of use and value beyond any comparable product. While being only half rack width and 2U high, the PPA500 is available in 1, 2 or 3 phase configurations. As a result of innovative design, the PPA500 is able to deliver high performance at low cost. Features such as the planar shunt (A shunt design topology developed by N4L) and FPGA based real time no gap analysis technique all contribute to the PPA500’s fantastic offering. The low cost of the PPA500 Power Analyser presents a great opportunity to system integrators looking for accurate, traceable, reliable power analysis.

Power Analyzer Features & Benefits

  • 0.05% Basic accuracy (Traceable to ISO17025)
  • Frequency range DC and 10mHz to 500kHz
  • High precision internal shunts Superior accuracy to any external shunt
  • 10 milli degree phase accuracy – Necessary for low power factor applications
  • 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
  • Unique x10 gain mode for Standby Power measurement
  • High speed sampling on all channels
  • True real time analysis with no measurement gap
  • 1, 2 or 3 phase versions
  • High contrast full colour graphic display
  • Simple BNC connection of N4L shunts for high current applications
  • RS232, USB, (LAN Option), Extension and Auxiliary ports

Description

Parameter
Frequency Range
Bandwidth DC, 10mHz ~ 500kHz

x10 DC, 10mHz ~ 100kHz

Voltage Input
Internal Ranges Normal : 1Vpk ~ 2500Vpk (8 ranges = 1V, 3V, 10V, 30V, 100V, 300V, 1KV, 3KV)

x10 100mVpk ~ 300Vpk (8 ranges = 100mV, 300mV, 1V, 3V, 10V, 30V, 100V, 300V)

Internal Accuracy Normal : 0.05% Rdg + 0.1% Rng + (0.005%xkHz) + 5mV

x10 : 0.05% Rdg + 0.1% Rng + (0.01%xkHz) + 1mV

External Voltage BNC Input Ranges 1mVpk ~ 3Vpk [BNC Connector 3Vpk Max Input] 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Voltage Input Accuracy 0.05% Rdg + 0.1% Rng + (0.005%xkHz) + 5uV
Current Input
PPA500 20Arms Shunt, 4mm Safety Connectors Normal : 100mApk ~ 300Apk (20Arms) (8 ranges = 100mA, 300mA, 1A, 3A, 10A, 30A, 100A, 300A)

x10 : 10mApk ~ 30Apk (8 ranges = 10mA, 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A)

PPA500-HC 30Arms Shunt, 4mm Safety Connectors Normal : 300mApk ~ 1000Apk (30Arms) (8 ranges = 300mA, 1A, 3A, 10A, 30A, 100A, 300A, 1KA)

x10 : 30mApk ~ 100Apk (8 ranges = 30mA, 100mA, 300mA, 1A, 3A, 10A, 30A, 100A)

Internal Shunt Accuracy 20Arms Normal : 0.05% Rdg + 0.1% Rng + (0.005% x kHz) + 500uA

x10 : 0.05% Rdg + 0.1% Rng + (0.01% x kHz) + 100uA

Internal Shunt Accuracy HC 30Arms Normal : 0.05% Rdg + 0.1% Rng + (0.005% x kHz) + 1mA

x10 : 0.05% Rdg + 0.1% Rng + (0.01% x kHz) + 300uA

External Current BNC Input Ranges 1mVpk ~ 3Vpk 8 Ranges = 1mV, 3mV, 10mV, 30mV, 100mV, 300mV, 1V, 3V
External Current Input Accuracy 0.05% Rdg + 0.1% Rng + (0.005%/kHz) + 5uV
Phase Accuracy
Normal 0.01deg + (0.01deg/kHz)
x10 0.01deg + (0.02deg/kHz)
Power Accuracy
Normal [0.1% + 0.1%/pf + (0.01%/kHz)/pf] Rdg + 0.1% VA Rng
x10 [0.1% + 0.1%/pf + (0.02%/kHz)/pf] Rdg + 0.1% VA Rng
40Hz ~ 850Hz As above with range error reduced from +0.1% V,A,VA Rng to +0.05% V,A, VA Rng
General
Crest Factor 20 (Voltage and Current)
Sample Rate 1Ms/s on all channels, real time No-Gap
IEC Compliant Modes IEC62301/EN50564 Standby Power Mode
Application Modes Ballast, Inrush, Standby Power
CMRR – Common Mode Rejection Ratio 250V @ 50Hz – ≥ 1mA (150dB)
100V @ 100kHz – ≥ 3mA (130dB)
Measurement Parameters W, VA, Var, pf, V & A – rms, rectified mean, AC, DC, peak, surge, crest factor, form factor, star to delta conversion, delta to star conversion
Frequency (Hz), Phase (deg), Fundamentals, Impedance
Harmonics, THD, TIF, THF, TRD, TDD
Integrated Values, Datalog, Sum and Neutral Values
Datalog (Up to 4 user selectable measurement functions (60 with PC software)
Datalog window No-Gap analysis, Minimum Window 10ms
Memory RAM up to 16,000 records
Communication Ports RS232, LAN, (Option L), USB, Extension (Aux)
Standard Accessories
Leads Power, RS232, USB
Connection Cables 20A (Std Version) or 30A (HC version) 1.5m long 4mm stackable terminals. 1x red, 1x yellow, 2x black per phase
Connection Clips 4mm terminated alligator clips – 1x red, 1x yellow and 2x black per phase
Instruction manual User manual, Communications manual
Other documents Calibration certificate, Quick start guide
Mechanical and Environmental
Display 480×272 dot full colour TFT, White LED backlit
Dimensions 92H x 215W x 312D mm excluding feet
Weight 3.3kg (1 Phase), 4kg (3 Phase)
Safety Isolation 1000Vrms or DC (CATII), 600Vrms or DC (CATIII)
Power Supply 90 ~ 265Vrms, 50 ~ 60Hz, 40VA Max
Operating Conditions 5 deg to 40 deg ambient temperature (or air intake temperature when rack mounted), 20-90% Non-condensing relative humidity.
