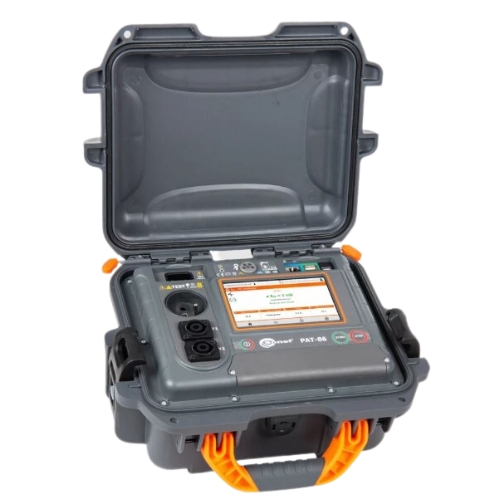

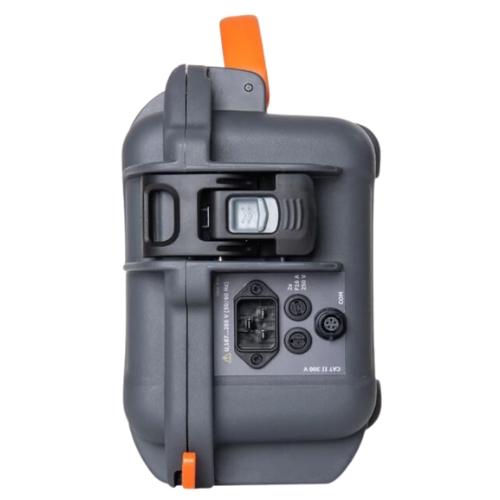

Portable Appliance Tester Welding PAT86
Portable Appliance Tester Welding PAT86
Portable Appliance Tester Welding PAT86

Portable Appliance Tester Welding | PAT86

R65,286.00 ex vat

Portable Appliance Tester Welding – Overview

Ideal for areas where safety is of particular importance. Suitable to be used on welders, power tools, three-phase appliances, or domestic appliances. The instrument measures parameters such as resistance of protective conductors, insulation resistance, continuity of connections, leakage currents, power, RCD, and PRCD. It is especially geared towards testing welding equipment according to the PN-EN 60974-4 standard. It checks the rated voltage of welding equipment in no-load condition, the welding circuit leakage current, and the primary leakage current.

Portable Appliance Tester Welding – Features

  • Intuitive user interface
  • Cooperation with a label printer and QR code scanner
  • Robust, compact housing
  • Battery power supply: lasts up to 1 hour (rechargeable)
  • Measurement of welding equipment parameters:
    • rated voltage of welding devices in no-load condition
    • welding circuit leakage current
    • primary leakage current
    • protective conductor resistance measurement
    • residual voltage measurement
    • measurement of insulation resistance in three points
    • measurement of substitute, differential, and touch leakage current
    • functional test
    • test of RCD and PRCD switches

Available on back-order

SKU: WMGBPAT86 Category: Tags: , , ,
Sonel Logo Square

Description

Portable Appliance Tester Welding | PAT86

Measurement functions Range Resolution Accuracy
Resistance of protective conductor (PE)
I = 200 mA / 10 A / 25 A		 up to 19.99 Ω from 1 mΩ from ±(3% m.v. + 4 digits)
Insulation resistance
UISO = 100 V / 250 V / 500 V / 1000 V		 up to 599.9 MΩ from 1 kΩ ±(5% m.v. + 8 digits)
Current (clamp measurement) up to 24.9 A from 1 mA ±(5% m.v. + 5 digits)
Visual test ✓
Continuity check of protective conductor (PE) ✓
Insulation resistance measurement at three points ✓
IEC cable test ✓
Functional test
Apparent power S up to 3.99 kVA from 1 VA ±(5% m.v. + 3 digits)
Active power P up to 3.99 kW from 1 W ±(5% m.v. + 3 digits)
Reactive power Q up to 3.99 kvar from 1 var ±(5% m.v. + 3 digits)
Power Factor (PF) up to 1.00 0.01 ±(10% m.v. + 5 digits)
Current consumption for power measurement up to 15.99 A 0.01 A ±(2% m.v. + 3 digits)
THD for voltage and current up to 99.9% 0.1% ±(5% m.v. + 5 digits)
Cosφ up to 1.0 0.1 ±(5% m.v. + 5 digits)
Voltage measurement for welding machines
RMS voltage URMS up to 170.0 V 0.1 V ±(2.5% m.v. + 5 digits)
DC and AC peak voltage up to 240.0 V 0.1 V ±(2.5% m.v. + 5 digits)
Voltage U0 up to 240.0 V 0.1 V ±(2.5% m.v. + 5 digits)
Leakage current measurement
Welding circuit leakage current IL up to 14.99 mA 0.01 mA ±(5% m.v. + 2 digits)
Leakage current of the welding machine’s primary circuit IP up to 14.99 mA 0.01 mA ±(5% m.v. + 5 digits)
PE leakage current and differential leakage current up to 19.9 mA 0.01 mA ±(5% m.v. + 2 digits)
Substitute leakage current up to 19.9 mA 0.01 mA ±(5% m.v. + 2 digits)
Touch leakage current up to 4.999 mA 0.001 mA ±(5% m.v. + 3 digits)
RCD and PRCD switch test
Measurement of RCD parameters according to IEC 61557 up to 300 ms 1 ms ±(2% m.v. + 2 digits)
Measurement of RCD tripping current IA for sinusoidal residual current (AC type) up to 30 mA 0.1 mA ±5% IΔn
Measurement of power network parameters
Voltage up to 265.0 V 0.1 V ±(2% m.v. + 2 digits)
Frequency up to 55.0 Hz 0.1 Hz ±(2% m.v. + 2 digits)
